Sega Game Gear Screen Replacement

Device	Sega Game Gear
Difficulty	Moderate
Time	30 - 45 minutes
Steps	12

This guide is by Lauren Thurston on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A guide to installing a replacement screen on a Sega Game Gear.

Tools: Gamebit 4.5mm; Phillips #00 Screwdriver

Step 1

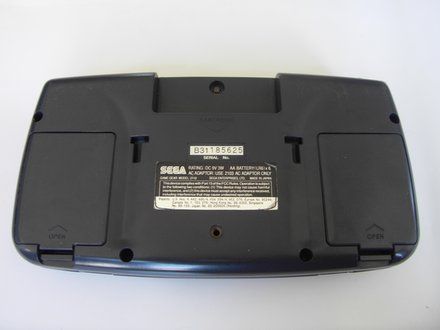

• Place your device upside down and locate the two battery compartments.

Step 2

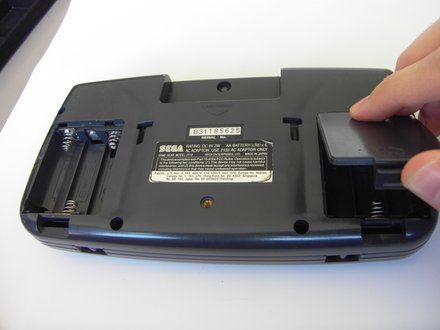

• Press on the tabs at the bottom of the battery covers then lift up to remove.
• Remove batteries if they are present.

Step 3

• Remove the following screws:

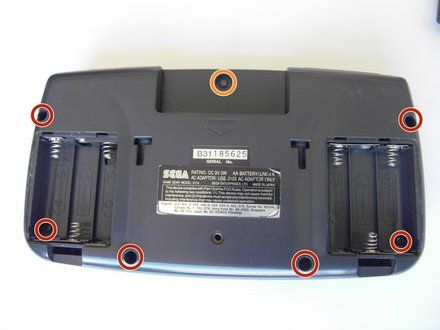

• Six Phillips screws
• One 4.5 mm Gamebit screw

Step 4

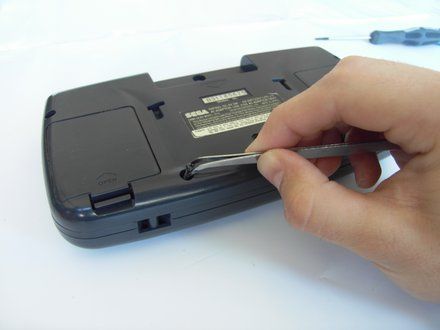

• Use tweezers (https://www.ifixit.com/en-ca/products/tweezers) to take all other screws out.

Step 5

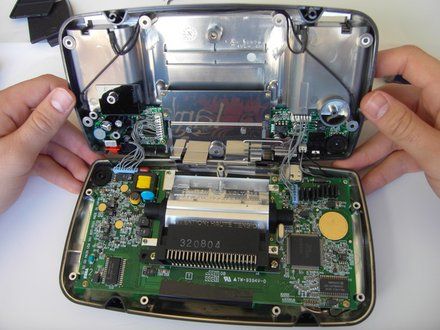

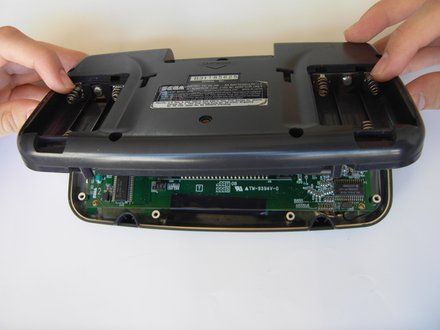

• Gently open the case by unfolding it over the top of the Sega Game Gear.
• CAUTION: Do not pull the back of the case away, as cables are connected between both sides.

Step 6

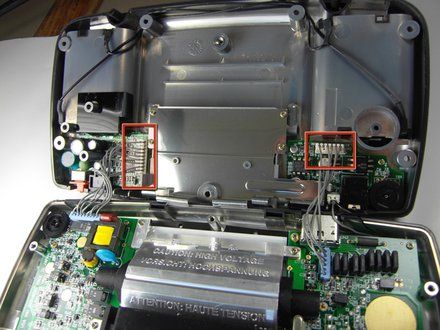

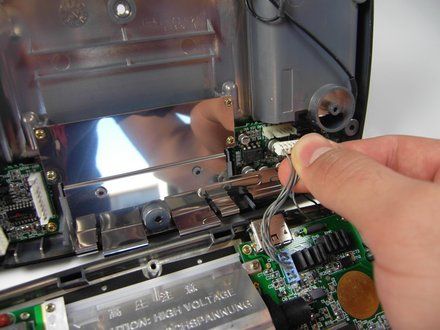

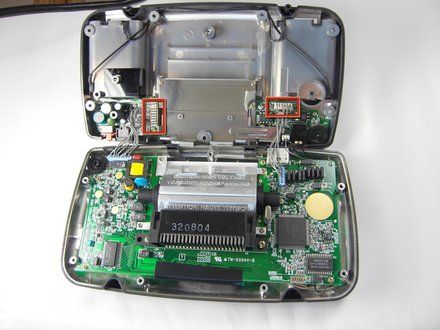

• Carefully unplug the 2 white-tipped connectors on the top cover.

Step 7

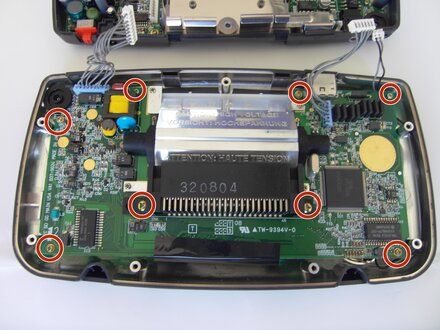

• Unscrew all the marked screws.

Step 8

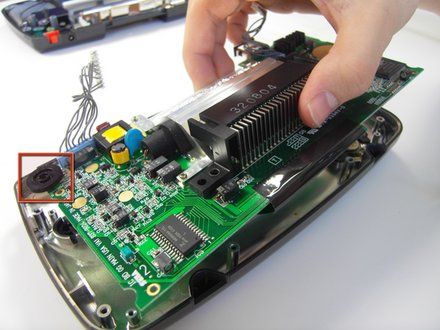

• Slide the logic board out from under the circular black fastener at the top-left corner of the case.

Step 9

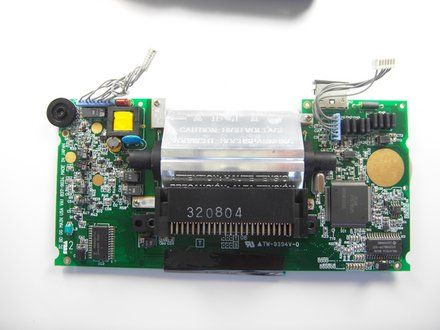

• Place the board onto a flat surface.
• NOTE: Small plastic buttons may fall off during this process, save them in a container or a place where they could be found later on.

Step 10

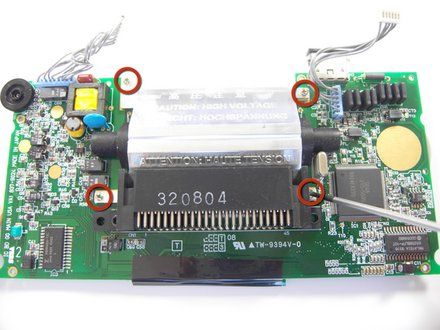

• Unscrew the marked screws.
• Flip the board, having its back facing up.
• CAUTION: Hold onto the screen in the back, as it will flip open if not held onto.

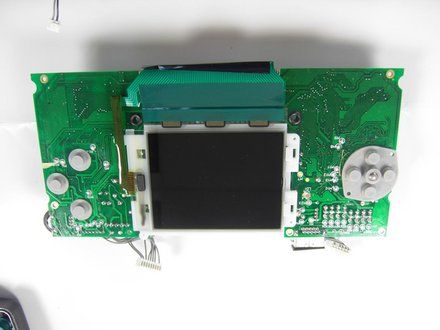

Step 11

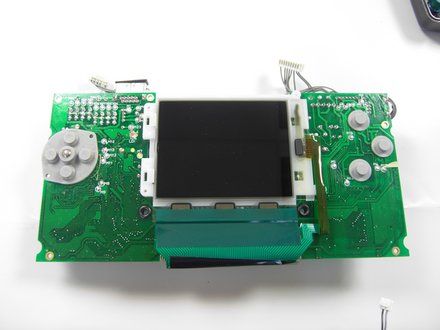

• Make sure the screen is towards the bottom, as indicated in the second picture.

Step 12

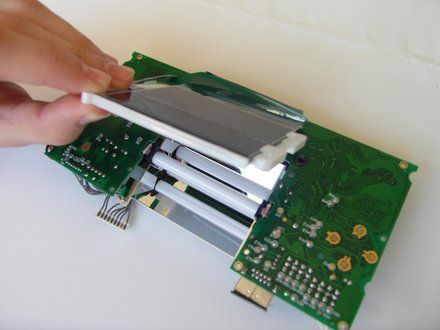

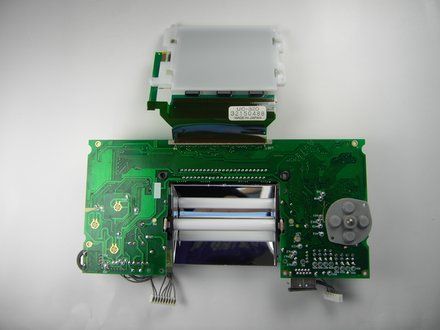

• Gently open the screen up.
• The screen will not come out all the way since it is glued onto the top side.

Conclusion

To reassemble your device, follow these instructions in reverse order.
