Sega Game Gear Motherboard Replacement

Device	Sega Game Gear
Difficulty	Moderate
Time	No estimate
Steps	9

This guide is by Brandon Page on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A complete guide to replacing the main board.

Tools: Gamebit 4.5mm; Phillips #00 Screwdriver

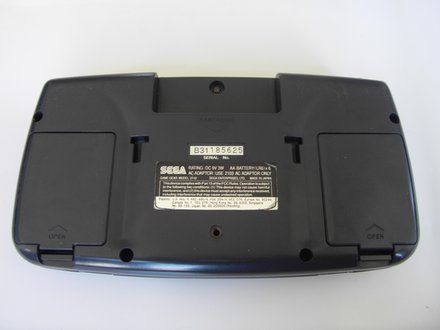

Step 1

• Place your device upside down and locate the two battery compartments.

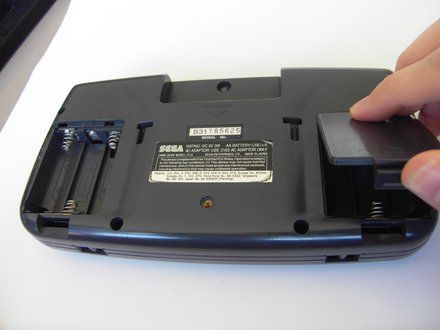

Step 2

• Press on the tabs at the bottom of the battery covers then lift up to remove.
• Remove batteries if they are present.

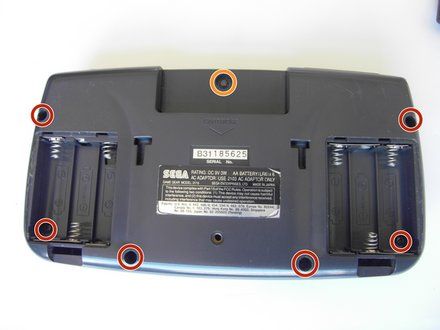

Step 3

• Remove the following screws:
• Six Phillips screws
• One 4.5 mm Gamebit screw

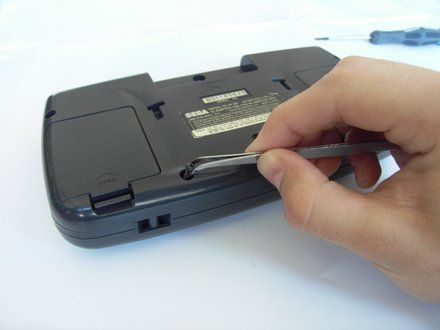

Step 4

• Use tweezers (https://www.ifixit.com/en-ca/products/tweezers) to take all other screws out.

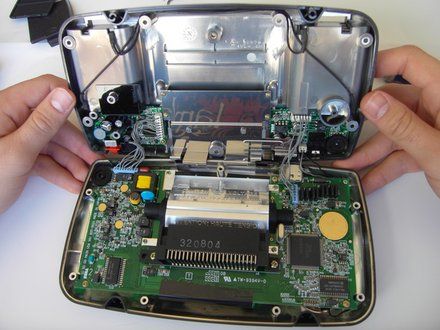

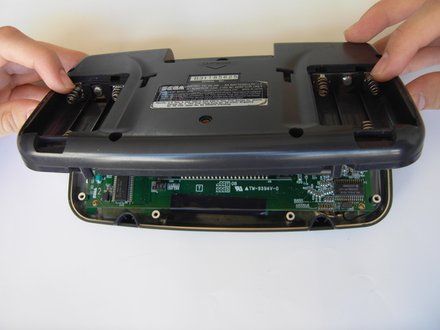

Step 5

• Gently open the case by unfolding it over the top of the Sega Game Gear.
• CAUTION: Do not pull the back of the case away, as cables are connected between both sides.

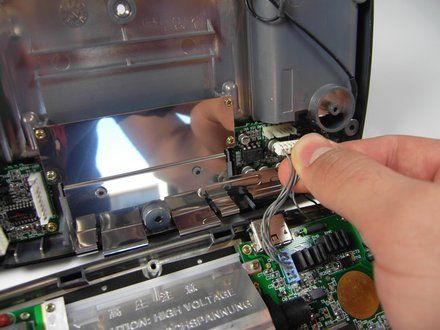

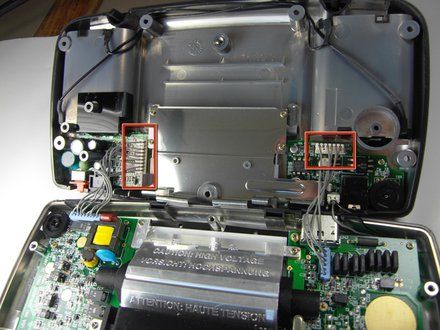

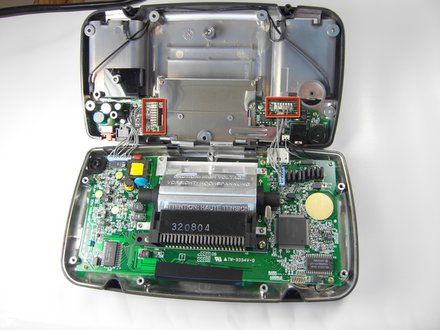

Step 6

• Carefully unplug the 2 white-tipped connectors on the top cover.

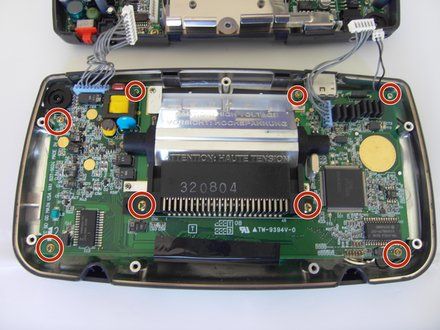

Step 7

• Unscrew all the marked screws.

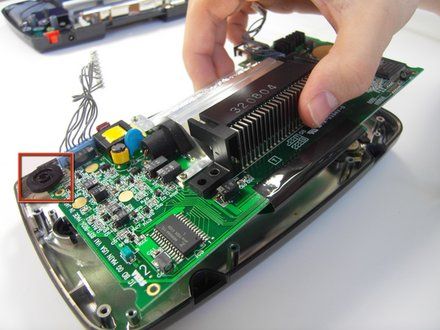

Step 8

• Slide the logic board out from under the circular black fastener at the top-left corner of the case.

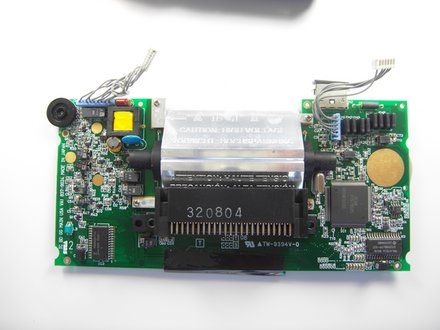

Step 9

• Place the logic board on a flat surface.

Conclusion

To reassemble your device, follow these instructions in reverse order.
