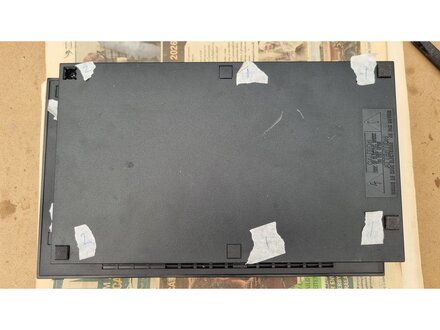

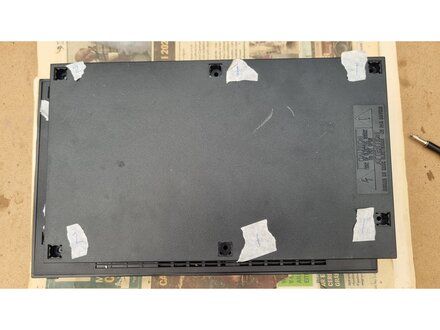

![[step 1 photo]](228964/step01-3.jpg) Flip the PlayStation 2 over so it lays with the bottom of the device facing upwards. Use the flat edge of a metal spudger to pry the eight flat screw covers out. These covers are made of soft rubber and act as feet. These covers are made of hard plastic.
|
|
|
|  |  |  |
|  |

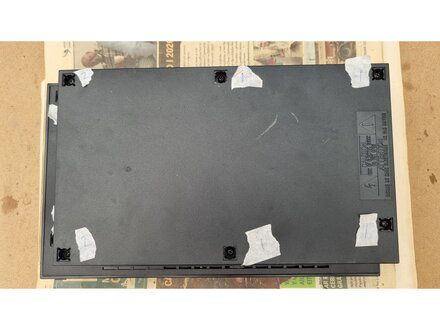

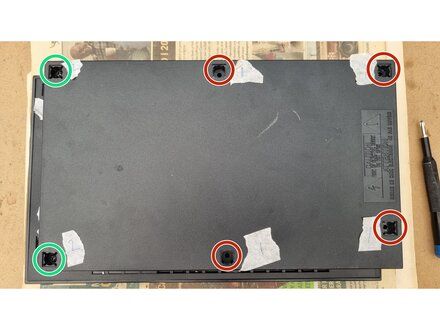

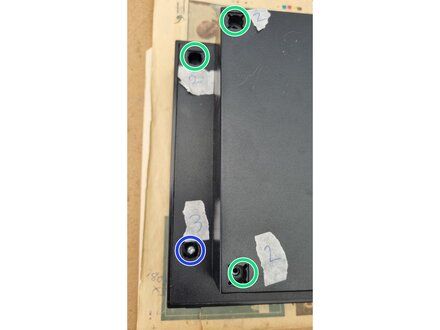

![[step 2 photo]](228964/step02-3.jpg) Use a PH2 screw driver to remove the 8x screws. 4x M2.5 x 53 mm black screws. 3x M3 x 15 mm black screws. 1x M3 x 26.5 mm silver screw.
|
|
|
|  |  |  |
|  |

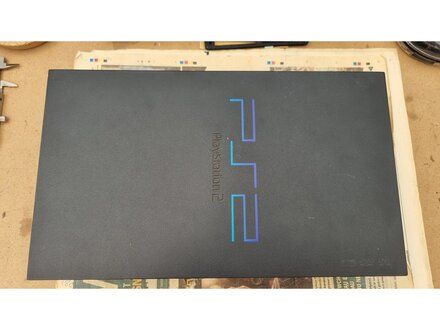

![[step 3 photo]](228964/step03-2.jpg) Flip over the PS2 and make sure the top is face up and the front of the console is nearest to you.
|
|
|
|  |  |  |
|  |

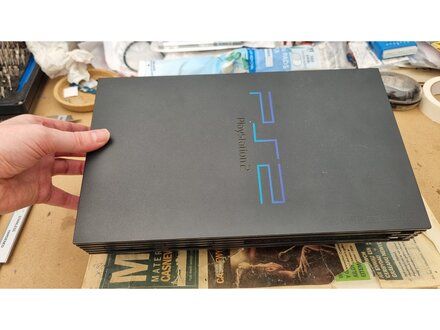

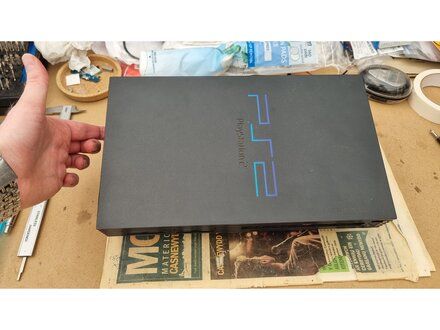

![[step 4 photo]](228964/step04-3.jpg) Lift the rear of the top cover to an angle of about 40-45 degrees. Slide the cover forward and over the controller ports, dvd drive and the power/reset and eject buttons.
|
|
|
|  |  |  |
|  |

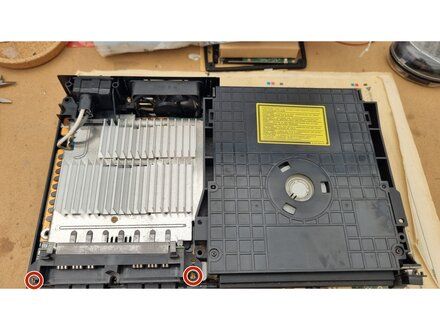

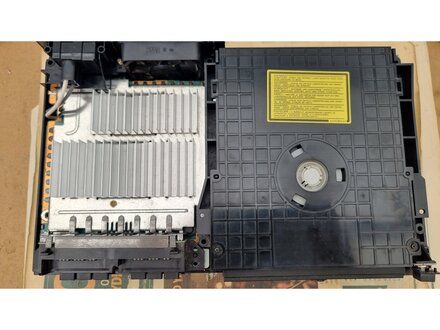

![[step 5 photo]](228964/step05-2.jpg) Use a Phillips PH2 screwdriver to remove the screws holding the controller ports to the base cover. 2x M3 x 11.4mm gold coloured screws.
|
|
|
|  |  |  |
|  |

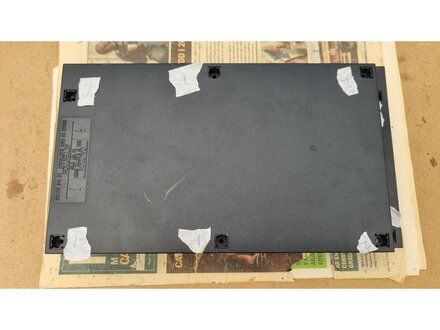

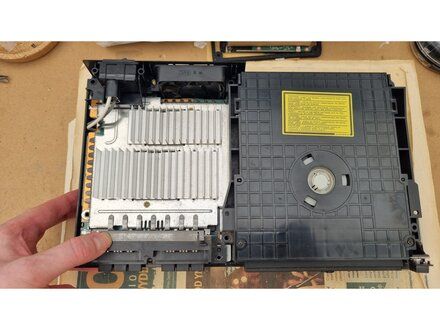

![[step 6 photo]](228964/step06-2.jpg) Flip over the PS2 so the baser cover is facing upwards. CAUTION: The controller ports will be loose. REMINDER: Hold the the left hand side of controller ports ( and the console) when you flip over the PS2.
|
|
|
|  |  |  |
|  |

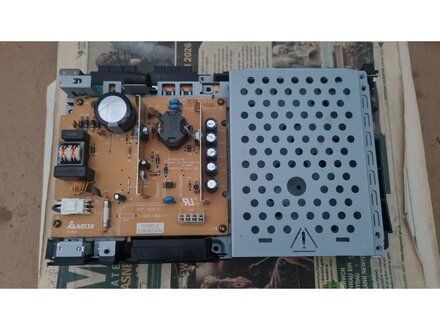

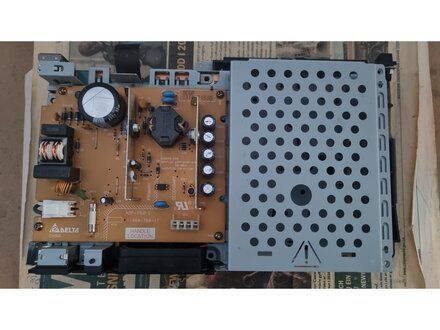

![[step 7 photo]](228964/step07-2.jpg) Lift the base cover straight up to remove it.
|
|
|
|  |  |  |
|  |

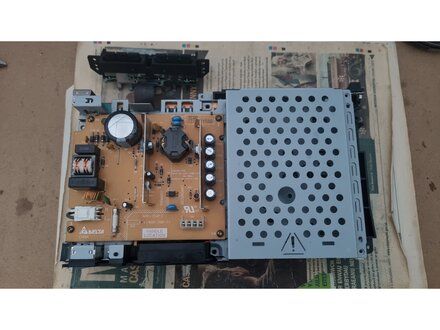

![[step 8 photo]](228964/step08-2.jpg) Move the controller ports away from the console.
|
|
|
|  |  |  |
|  |

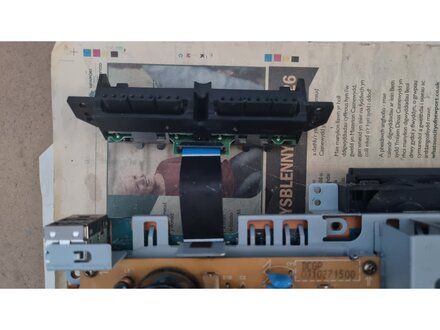

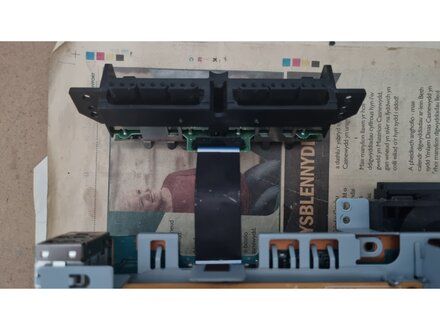

![[step 9 photo]](228964/step09-2.jpg) Unclip the FPC connector on the controller ports pcb.
|
|
|
|  |  |  |

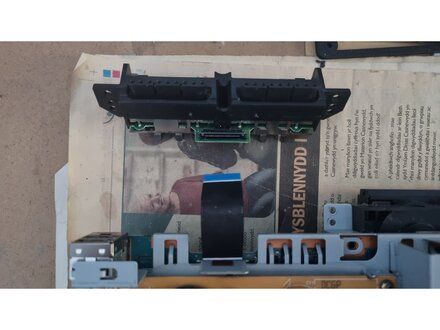

|  | ![[step 10 photo]](228964/step10-1.jpg) Remove the flex cable from the controller ports pcb.
|
|
|
|  |  |  |
|  | ![[step 11 photo]](228964/step11-1.jpg) Controller ports removed.
|
|
|
|  |  |  |
|  |

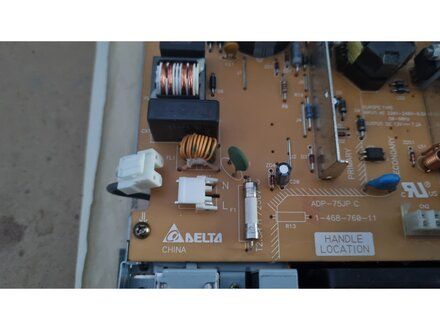

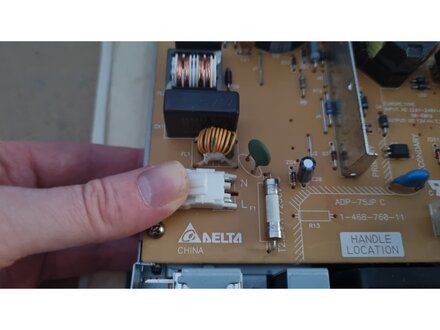

![[step 13 photo]](228964/step13-2.jpg) Press down on the white connector of the AC inlet assembly, then pull the connector towards the left edge of the console.
|
|
|
|  |  |  |

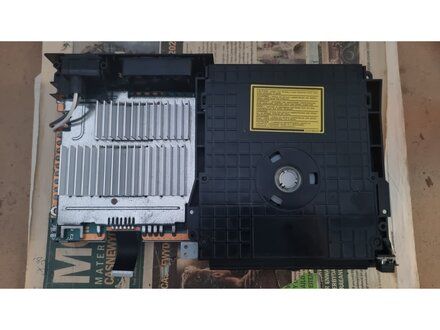

|  | ![[step 14 photo]](228964/step14-1.jpg) Flip over the console. The optical drive will be face up and to the right.
|
|
|
|  |  |  |
|  |

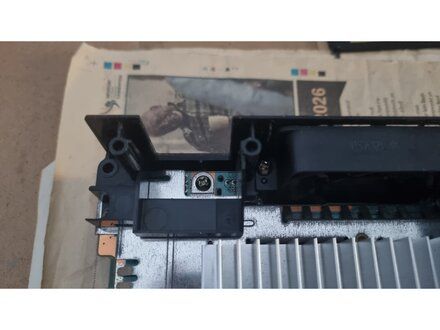

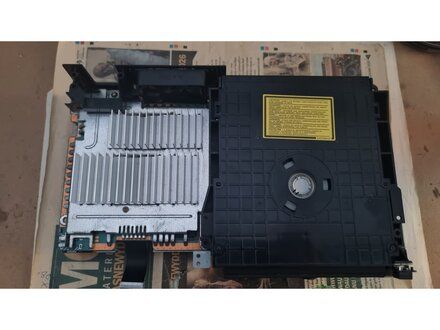

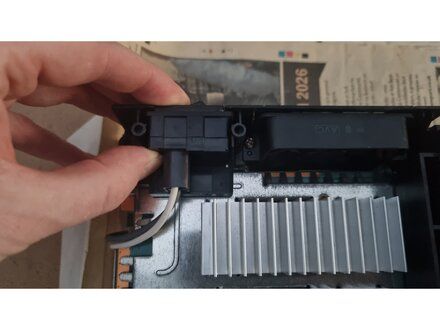

![[step 15 photo]](228964/step15-3.jpg) Slide the AC inlet up and out of the plastic rear bracket.
|
|
|
|  |  |  |
|  |

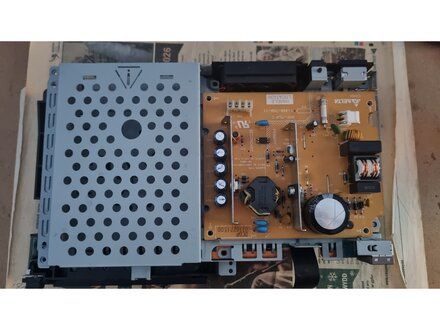

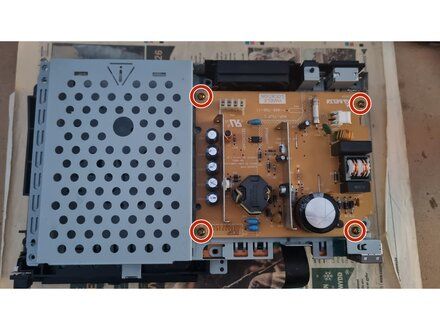

![[step 16 photo]](228964/step16-2.jpg) Use a PH2 screwdriver to remove the 4 screws that secure the power supply to the metal bracket. 4x M3 x 6mm gold coloured screws.
|
|
|
|  |  |  |
|  |

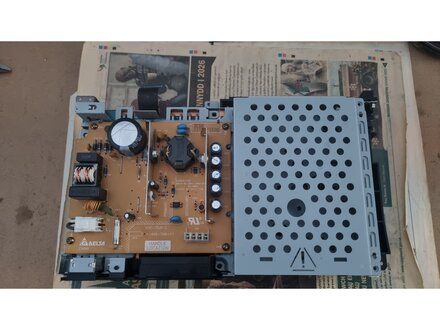

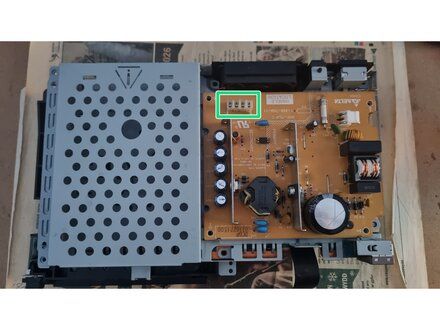

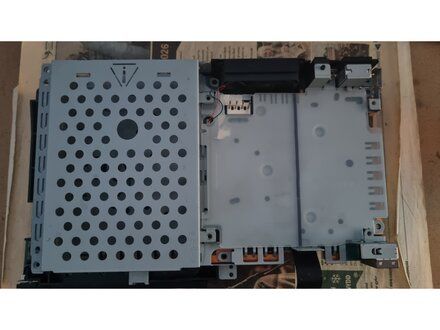

![[step 17 photo]](228964/step17-2.jpg) Lift the power supply board from the metal bracket. The power supply is connected to the main board via friction fit connector.
|
|
|
|  |  |  |
|  |

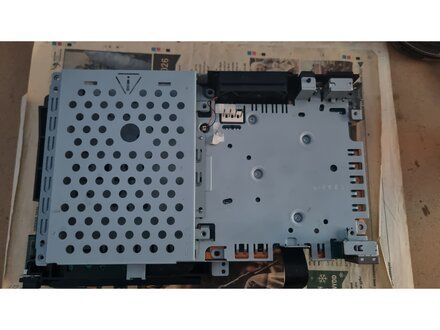

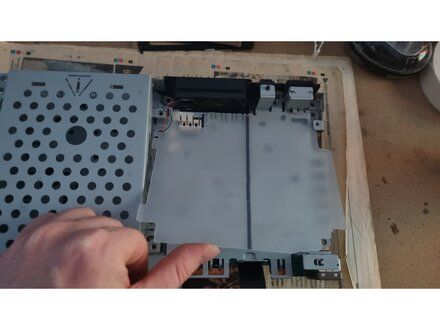

![[step 18 photo]](228964/step18-2.jpg) Remove the plastic insulator sheet. NOTE: If you are not proceeding further with disassembly, then there is no need to remove this sheet. CAUTION: If you fail to replace this sheet on re-assembly, the power supply board could possibly short out on the metal bracket underneath.
|
|
|
|  |  |  |
|  |

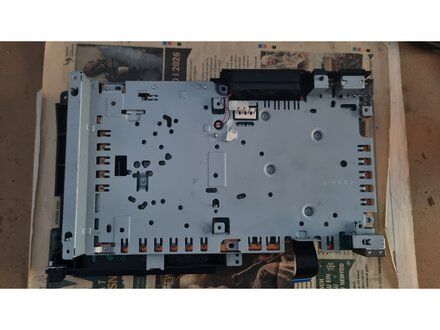

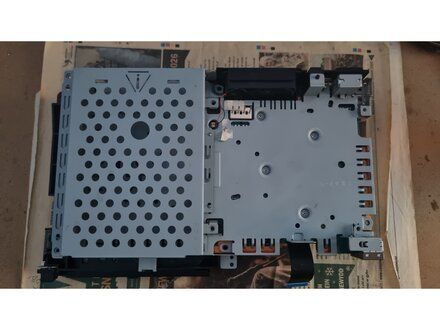

![[step 19 photo]](228964/step19-2.jpg) Lift off the expansion bay.
|
|
|
|  |  |  |
|  |

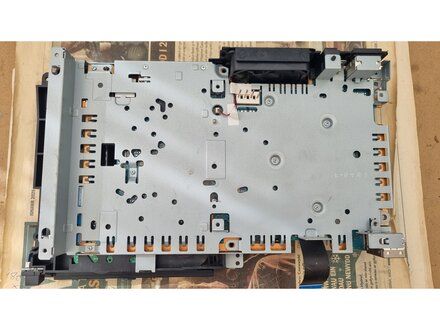

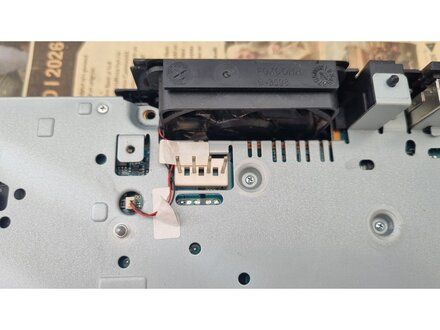

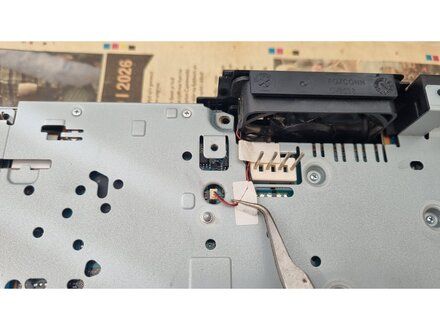

![[step 20 photo]](228964/step20-3.jpg) Peel off the stickers using a pair of pointed tweerzers.
|
|
|
|  |  |  |
|  |

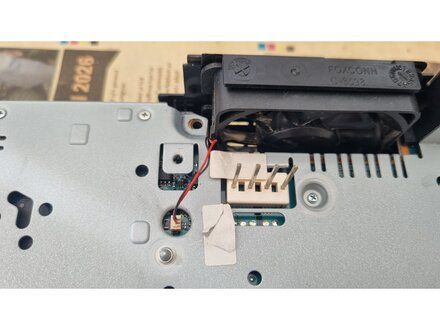

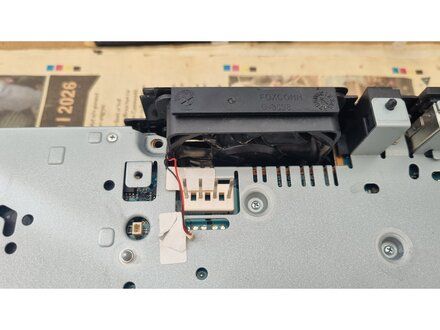

![[step 21 photo]](228964/step21-2.jpg) Use tweezers (preferably blunt ended ones) or fingers to gently disconnect the fan cable from the socket on the motherboard.
|
|
|
|  |  |  |

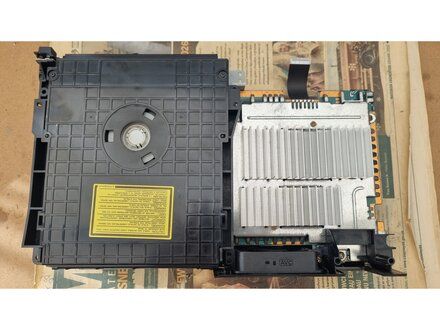

|  | ![[step 22 photo]](228964/step22-1.jpg) flip over the console so that the optical drive is on left and the rear fan is facing towards you (and is on the right)
|
|
|
|  |  |  |
|  |

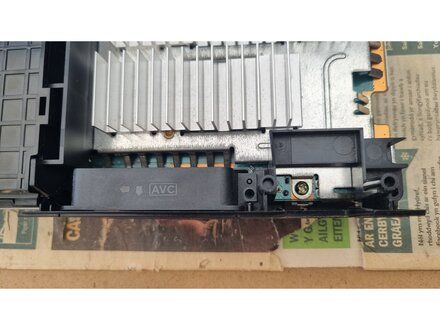

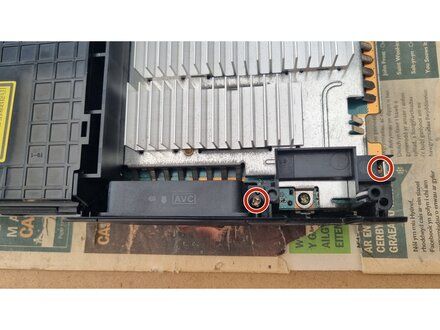

![[step 23 photo]](228964/step23-2.jpg) Use a Phillips #2 screwdriver to remove the two screws. One screw is on the right-hand side of the fan and the other is one the right hand side of the rear bracket. 2x M3 x 11mm gold screws.
|
|
|
|  |  |  |
|  |

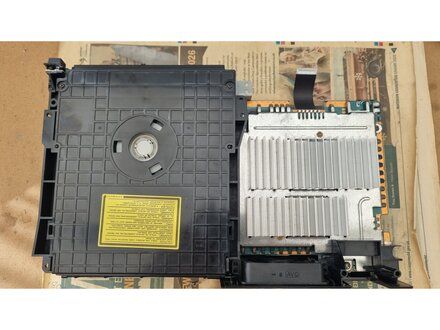

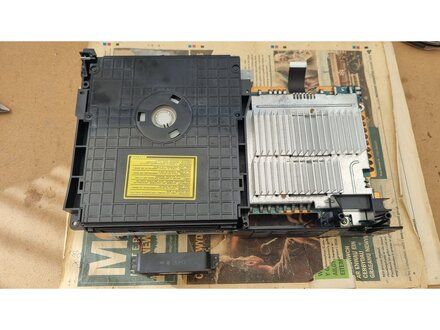

![[step 24 photo]](228964/step24-2.jpg) slide the fan up and out of the rear bracket. REMINDER: REASSEMBLY: Remember the orientation of the fan. NOTE: There are arrows on the top of the fan to aid correct insertion. one pointing to the rear of the console and one point towards the optical drive.
|
|
|
|  |  |  |
|  |

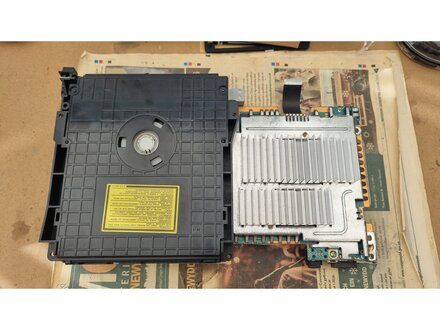

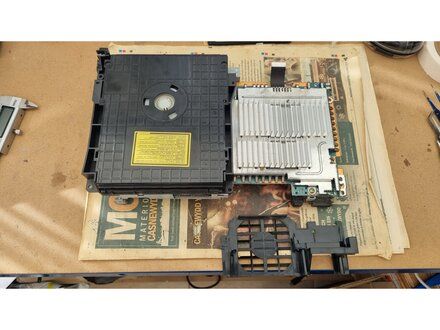

![[step 25 photo]](228964/step25-3.jpg) Remove the rear bracket. Lift up the left edge first, then lift off the bracket.
|
|
|
|  |  |  |
|  | | To reassemble your device, follow these instructions in reverse order. |
|
|
|  |  |  |
|
