PLAYSTATION 2 SCPH-500XX EXPANSION BAY
REPLACEMENT::
DevicePlaystation 2 SCPH-500xx
DifficultyModerate
TimeNo estimate
Steps19
This guide is by David Fear on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

STEP 1 :: TOP COVER::
[step 1 photo] [step 1 photo] [step 1 photo]

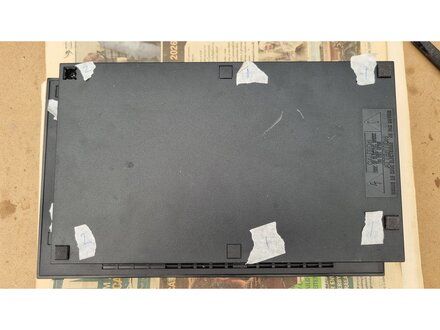

• Flip the PlayStation 2 over so it lays with the bottom of the device facing upwards.
• Use the flat edge of a metal spudger to pry the eight flat screw covers out.
    • These covers are made of soft rubber and act as feet.
    • These covers are made of hard plastic.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

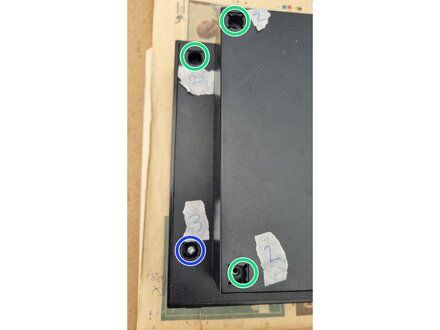

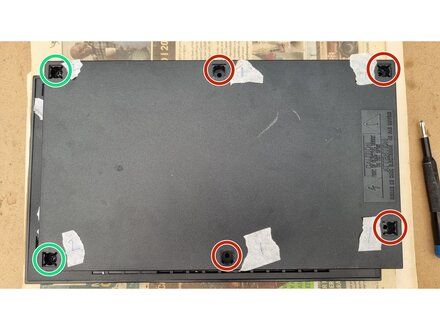

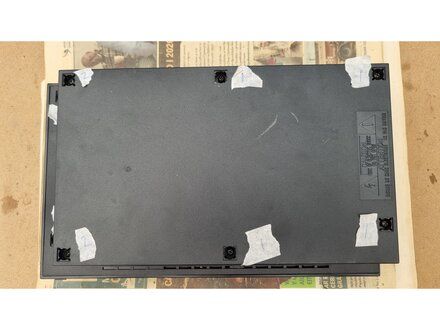

• Use a PH2 screw driver to remove the 8x screws.
    • 4x M2.5 x 53 mm black screws.
    • 3x M3 x 15 mm black screws.
    • 1x M3 x 26.5 mm silver screw.

STEP 3::
[step 3 photo] [step 3 photo]

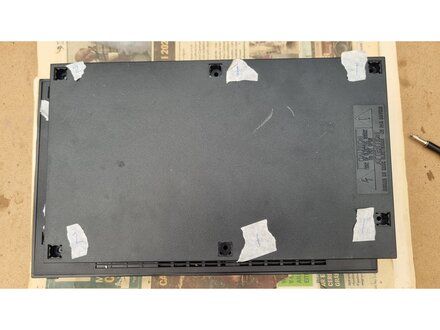

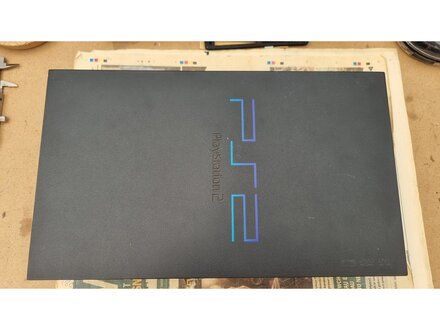

• Flip over the PS2 and make sure the top is face up and the front of the console is nearest to you.

STEP 4 :: REMOVE THE TOP COVER::

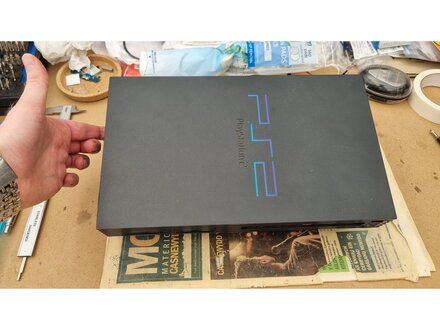

[step 4 photo] [step 4 photo] [step 4 photo]

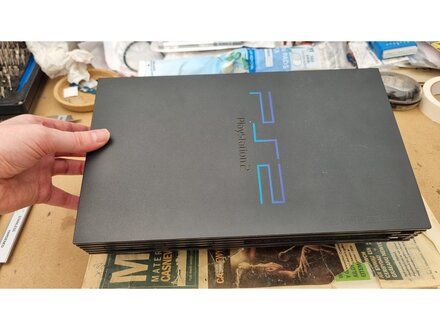

• Lift the rear of the top cover to an angle of about 40-45 degrees.
• Slide the cover forward and over the controller ports, dvd drive and the power/reset and eject buttons.

STEP 5::
[step 5 photo] [step 5 photo]

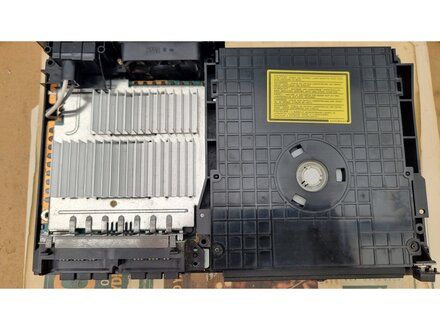

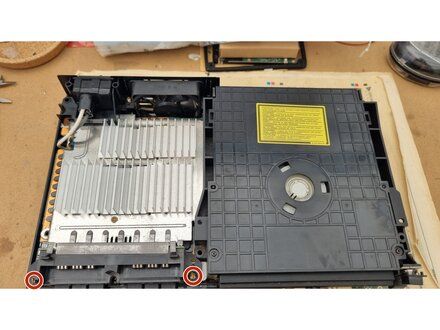

• Use a Phillips PH2 screwdriver to remove the screws holding the controller ports to the base cover.
    • 2x M3 x 11.4mm gold coloured screws.

STEP 6::
[step 6 photo] [step 6 photo]

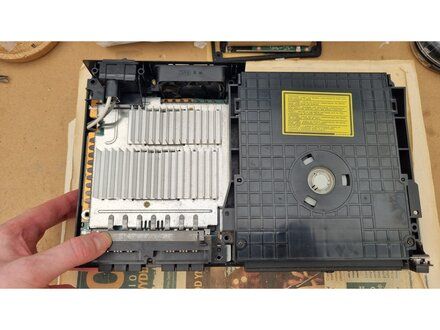

• Flip over the PS2 so the baser cover is facing upwards.
    • CAUTION: The controller ports will be loose.
    • REMINDER: Hold the the left hand side of controller ports ( and the console) when you flip over the PS2.

STEP 7::
[step 7 photo] [step 7 photo]

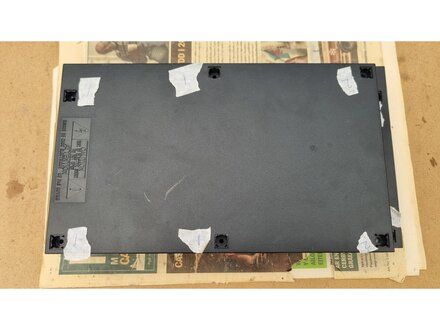

• Lift the base cover straight up to remove it.

STEP 8::

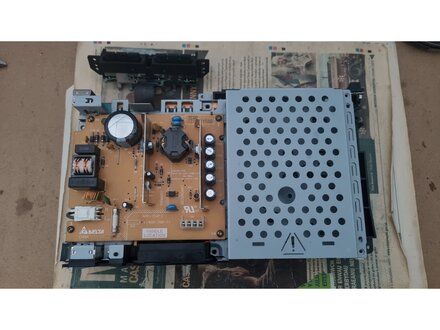

[step 8 photo] [step 8 photo]

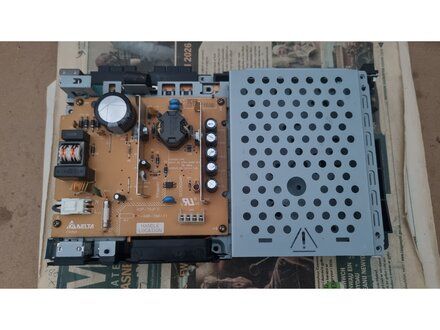

• Move the controller ports away from the console.

STEP 9::
[step 9 photo] [step 9 photo]

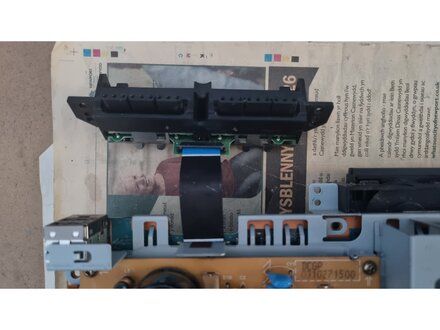

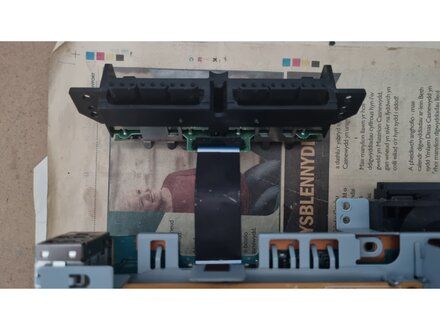

• Unclip the FPC connector on the controller ports pcb.

STEP 10::

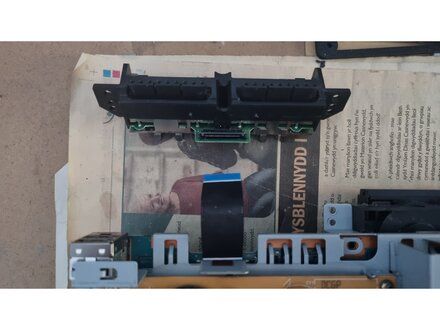

[step 10 photo]
• Remove the flex cable from the controller ports pcb.

STEP 11::
[step 11 photo]

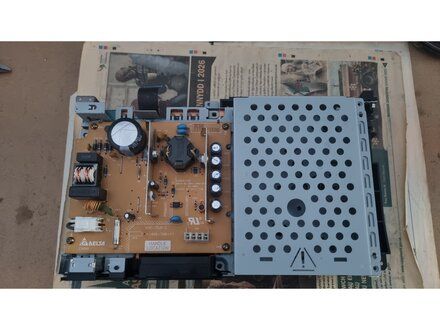

• Controller ports removed.

STEP 12::

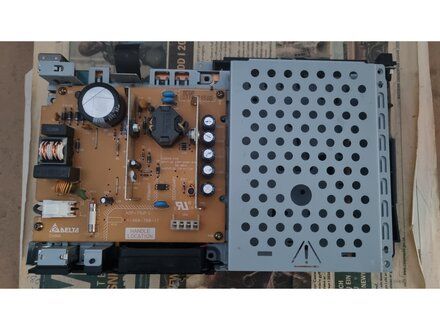

[step 12 photo]
• Start here

STEP 13::

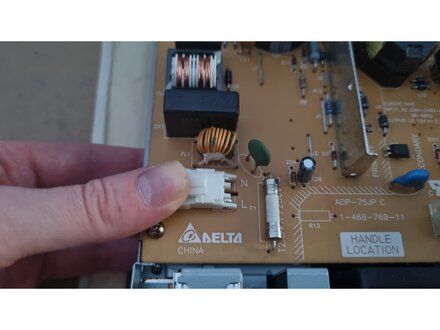

[step 13 photo] [step 13 photo]

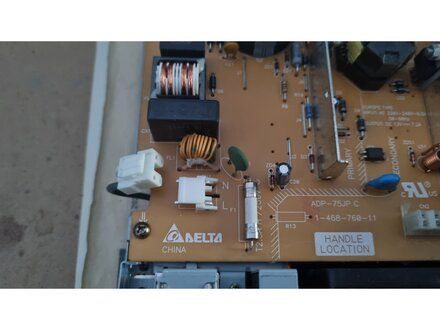

• Press down on the white connector of the AC inlet assembly, then pull the connector towards the left edge of the console.

STEP 14::

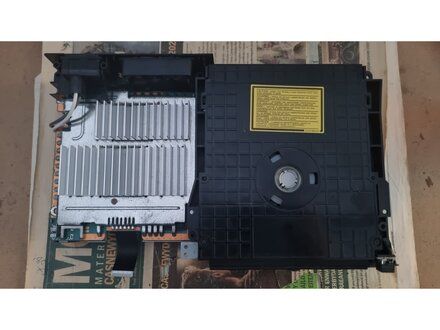

[step 14 photo]
• Flip over the console. The optical drive will be face up and to the right.

STEP 15::

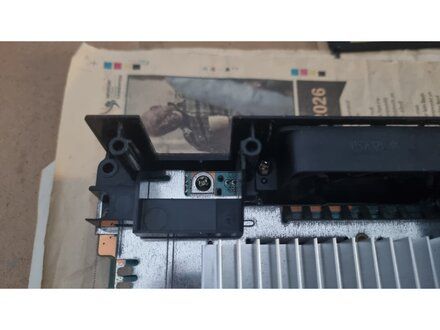

[step 15 photo] [step 15 photo] [step 15 photo]

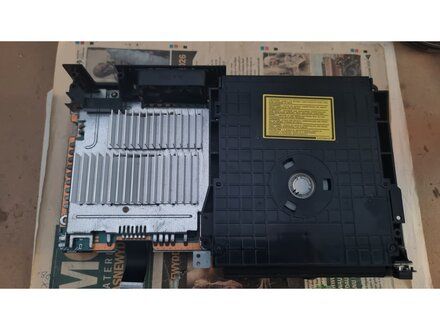

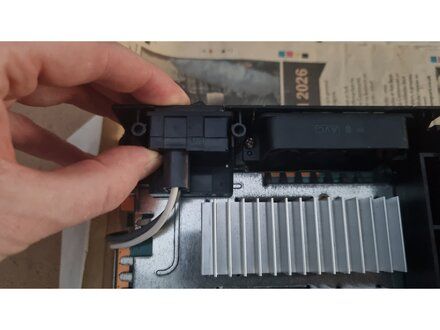

• Slide the AC inlet up and out of the plastic rear bracket.

STEP 16::
[step 16 photo] [step 16 photo]

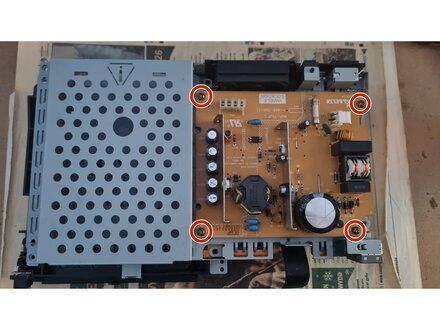

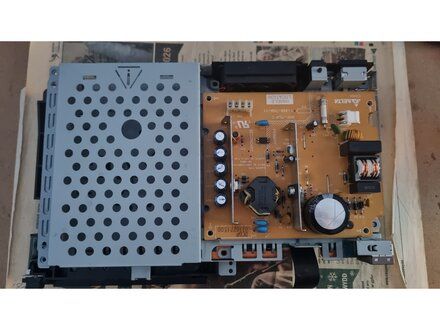

• Use a PH2 screwdriver to remove the 4 screws that secure the power supply to the metal bracket.
    • 4x M3 x 6mm gold coloured screws.

STEP 17::

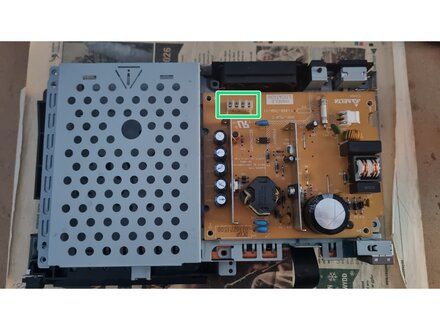

[step 17 photo] [step 17 photo]

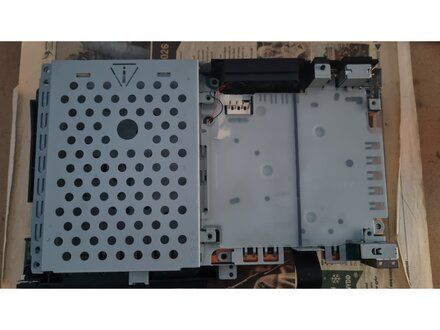

• Lift the power supply board from the metal bracket.
    • The power supply is connected to the main board via friction fit connector.

STEP 18::
[step 18 photo] [step 18 photo]

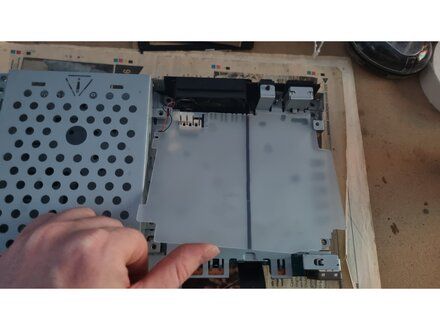

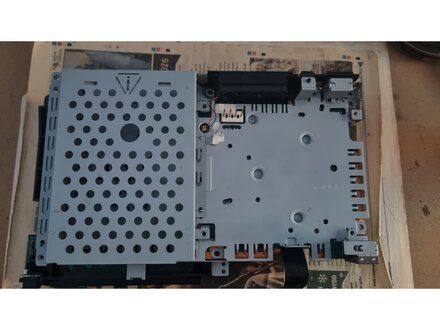

• Remove the plastic insulator sheet.
    • NOTE: If you are not proceeding further with disassembly, then there is no need to remove this sheet.
    • CAUTION: If you fail to replace this sheet on re-assembly, the power supply board could possibly short out on the metal bracket underneath.

STEP 19::

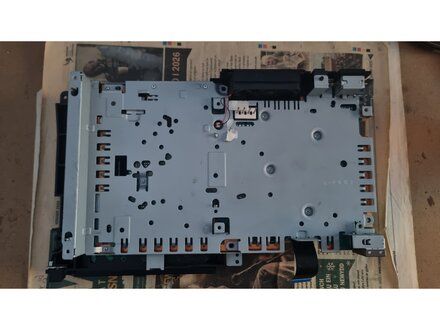

[step 19 photo] [step 19 photo]

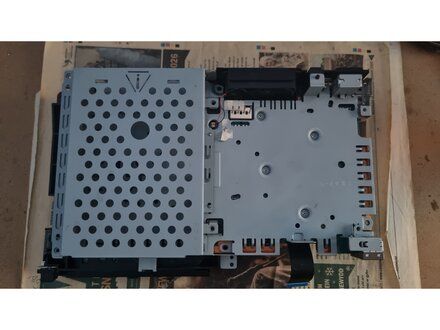

• Lift off the expansion bay.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by David Fear on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
