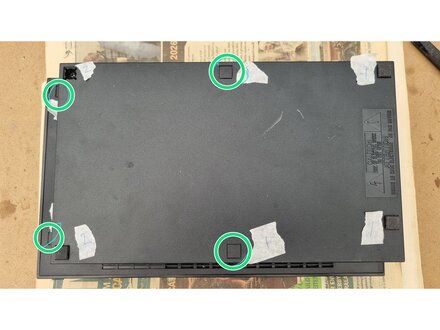

![[step 1 photo]](228739/step01-3.jpg) Flip the PlayStation 2 over so it lays with the bottom of the device facing upwards. Use the flat edge of a metal spudger to pry the eight flat screw covers out. These covers are made of soft rubber and act as feet. These covers are made of hard plastic.
|
|
|
|  |  |  |
|  |

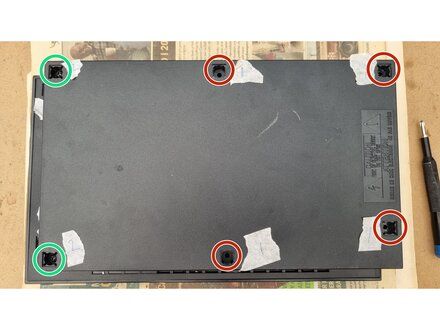

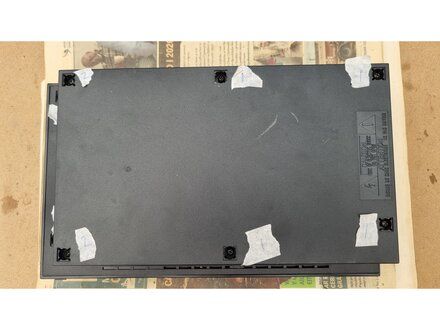

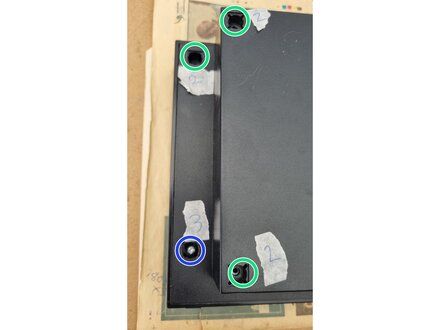

![[step 2 photo]](228739/step02-3.jpg) Use a PH2 screw driver to remove the 8x screws. 4x M2.5 x 53 mm black screws. 3x M3 x 15 mm black screws. 1x M3 x 26.5 mm silver screw.
|
|
|
|  |  |  |
|  |

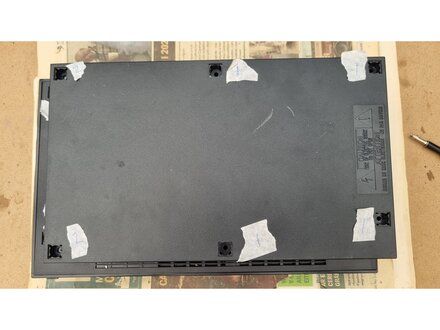

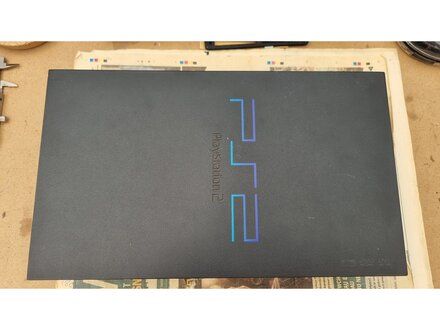

![[step 3 photo]](228739/step03-2.jpg) Flip over the PS2 and make sure the top is face up and the front of the console is nearest to you.
|
|
|
|  |  |  |
|  |

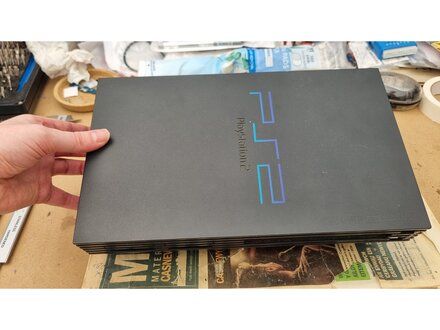

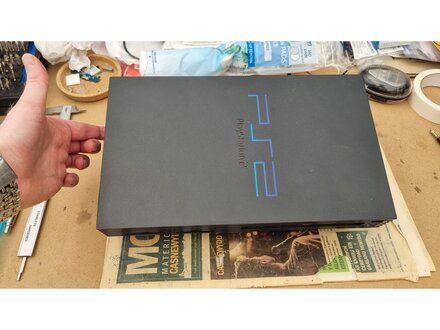

![[step 4 photo]](228739/step04-3.jpg) Lift the rear of the top cover to an angle of about 40-45 degrees. Slide the cover forward and over the controller ports, dvd drive and the power/reset and eject buttons.
|
|
|
|  |  |  |
|  |

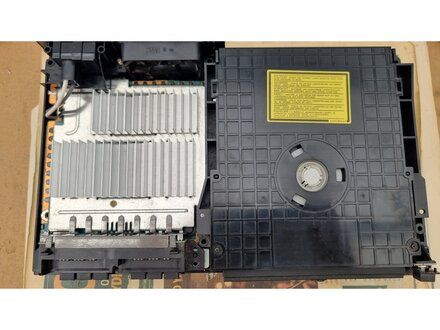

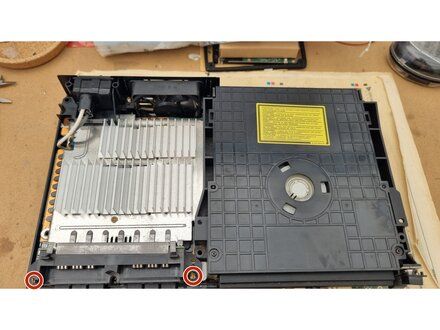

![[step 5 photo]](228739/step05-2.jpg) Use a Phillips PH2 screwdriver to remove the screws holding the controller ports to the base cover. 2x M3 x 11.4mm gold coloured screws.
|
|
|
|  |  |  |
|  |

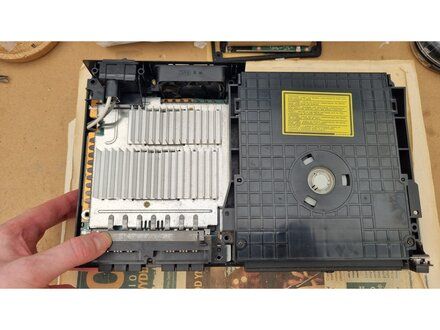

![[step 6 photo]](228739/step06-2.jpg) Flip over the PS2 so the baser cover is facing upwards. CAUTION: The controller ports will be loose. REMINDER: Hold the the left hand side of controller ports ( and the console) when you flip over the PS2.
|
|
|
|  |  |  |
|  |

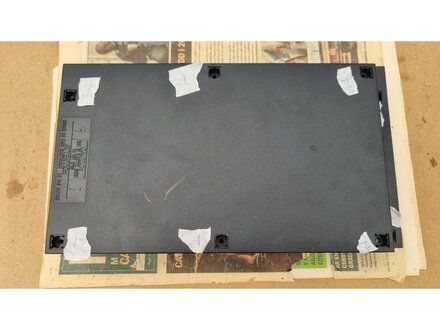

![[step 7 photo]](228739/step07-2.jpg) Lift the base cover straight up to remove it.
|
|
|
|  |  |  |
|  |

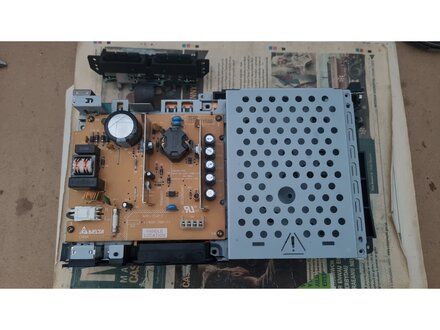

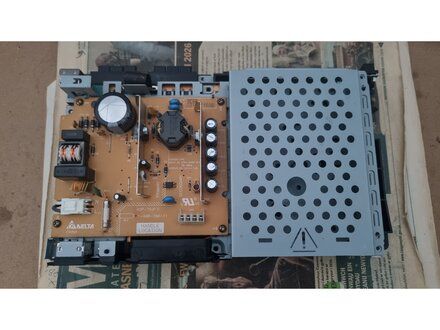

![[step 8 photo]](228739/step08-2.jpg) Move the controller ports away from the console.
|
|
|
|  |  |  |
|  |

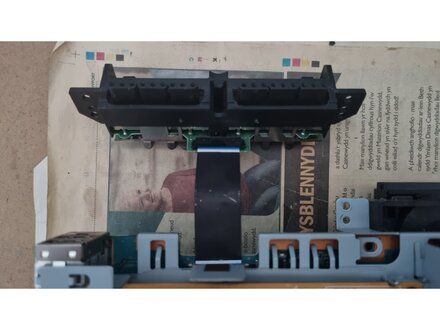

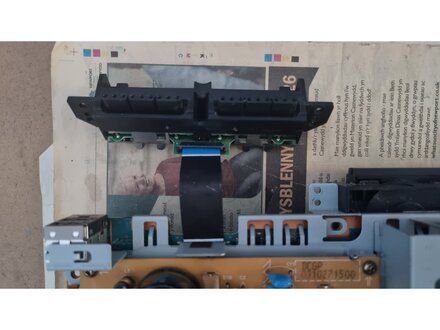

![[step 9 photo]](228739/step09-2.jpg) Unclip the FPC connector on the controller ports pcb.
|
|
|
|  |  |  |

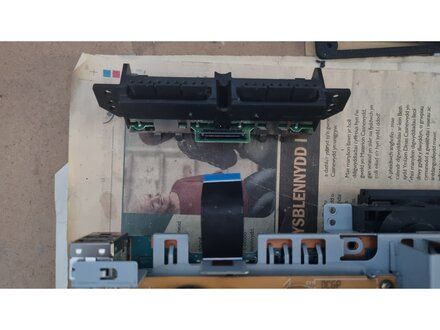

|  | ![[step 10 photo]](228739/step10-1.jpg) Remove the flex cable from the controller ports pcb.
|
|
|
|  |  |  |

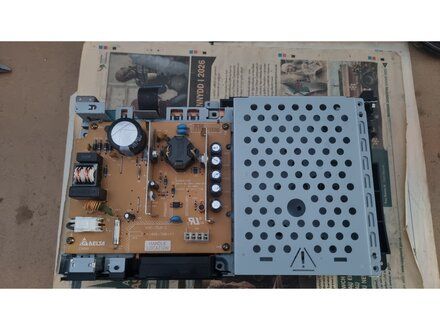

|  | ![[step 11 photo]](228739/step11-1.jpg) Controller ports removed.
|
|
|
|  |  |  |
|  |

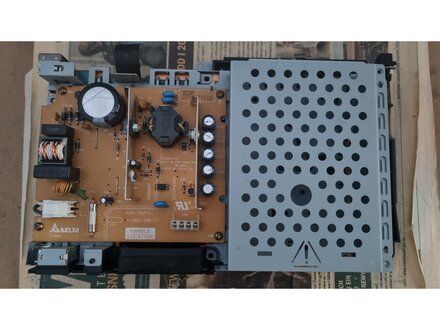

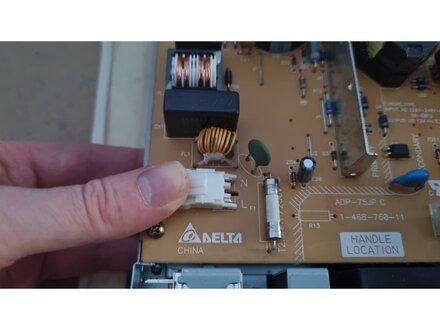

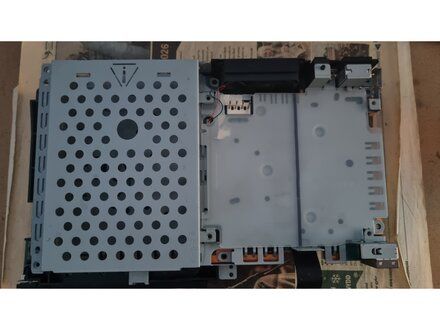

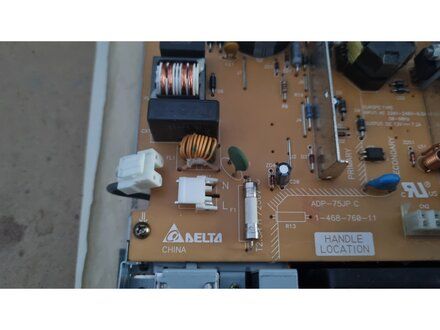

![[step 13 photo]](228739/step13-2.jpg) Press down on the white connector of the AC inlet assembly, then pull the connector towards the left edge of the console.
|
|
|
|  |  |  |

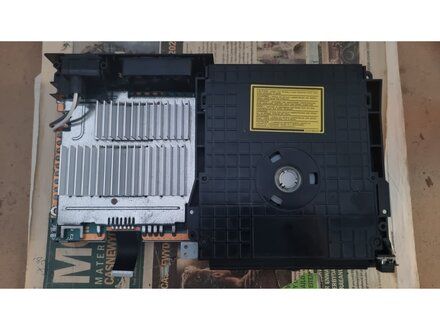

|  | ![[step 14 photo]](228739/step14-1.jpg) Flip over the console. The optical drive will be face up and to the right.
|
|
|
|  |  |  |
|  |

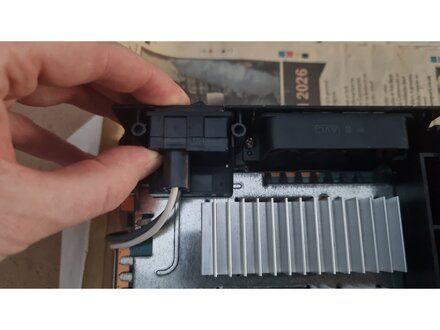

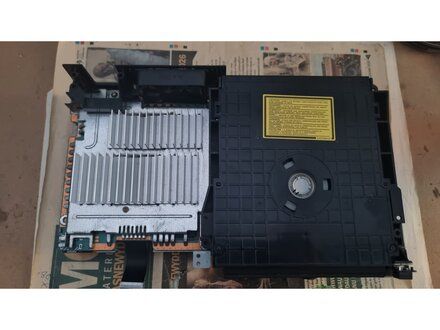

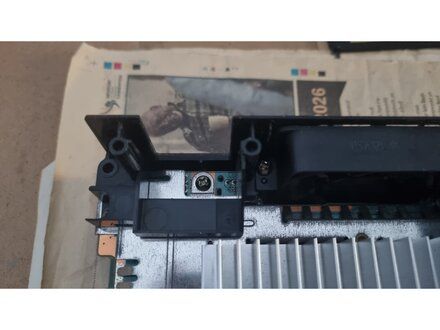

![[step 15 photo]](228739/step15-3.jpg) Slide the AC inlet up and out of the plastic rear bracket.
|
|
|
|  |  |  |
|  |

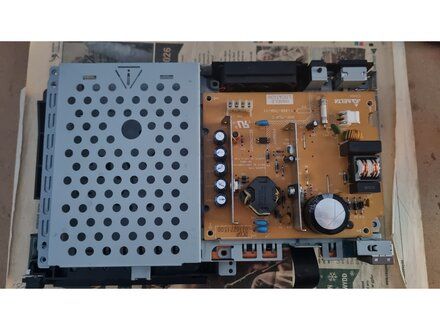

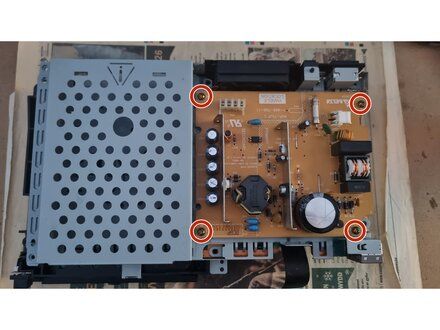

![[step 16 photo]](228739/step16-2.jpg) Use a PH2 screwdriver to remove the 4 screws that secure the power supply to the metal bracket. 4x M3 x 6mm gold coloured screws.
|
|
|
|  |  |  |
|  |

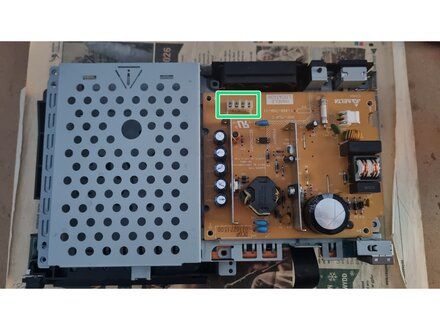

![[step 17 photo]](228739/step17-2.jpg) Lift the power supply board from the metal bracket. The power supply is connected to the main board via friction fit connector.
|
|
|
|  |  |  |
|  |

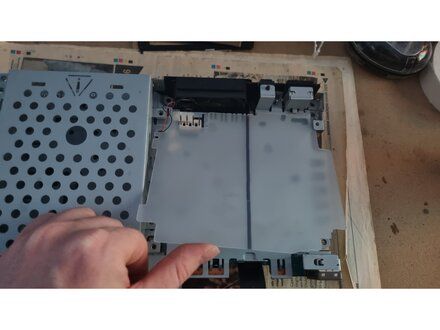

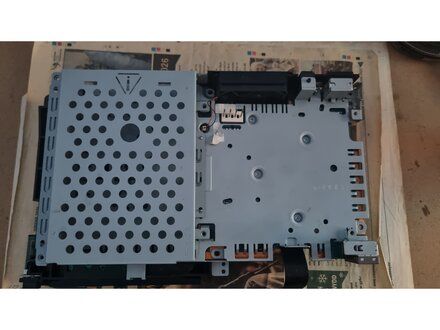

![[step 18 photo]](228739/step18-2.jpg) Remove the plastic insulator sheet. NOTE: If you are not proceeding further with disassembly, then there is no need to remove this sheet. CAUTION: If you fail to replace this sheet on re-assembly, the power supply board could possibly short out on the metal bracket underneath.
|
|
|
|  |  |  |
|  | | To reassemble your device, follow these instructions in reverse order. |
|
|
|  |  |  |
|
