Playstation 2 SCPH-500xx Upper cover Replacement

Device	Playstation 2 SCPH-500xx
Difficulty	Easy
Time	No estimate
Steps	4

This guide is by David Fear on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Replace your PlayStation 2's scratched-up or worn out top cover.

Tools: Phillips #2 Screwdriver; Metal Spudger

Step 1 :: Top cover

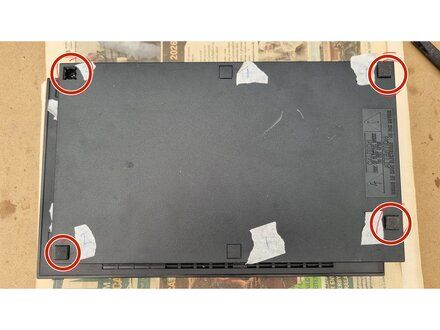

• Flip the PlayStation 2 over so it lays with the bottom of the device facing upwards.
• Use the flat edge of a metal spudger to pry the eight flat screw covers out.
• These covers are made of soft rubber and act as feet.
• These covers are made of hard plastic.

Step 2

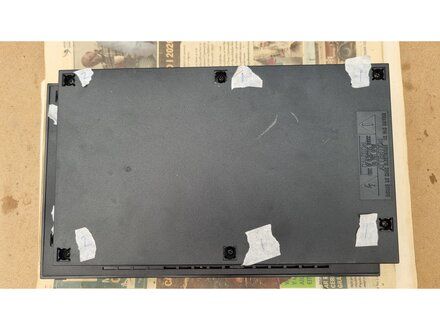

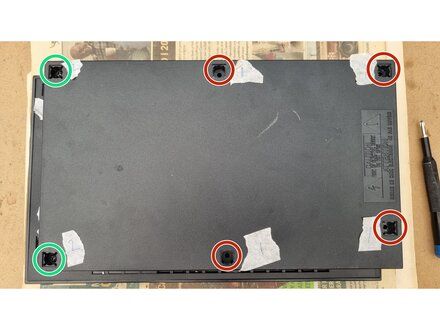

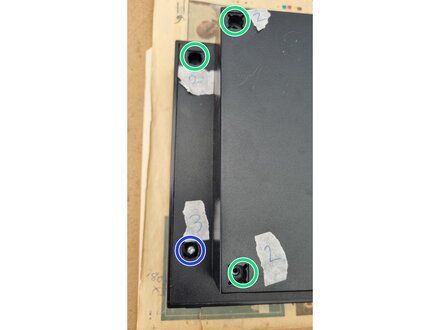

• Use a PH2 screw driver to remove the 8x screws.
    • 4x M2.5 x 53 mm black screws.
    • 3x M3 x 15 mm black screws.
    • 1x M3 x 26.5 mm silver screw.

Step 3

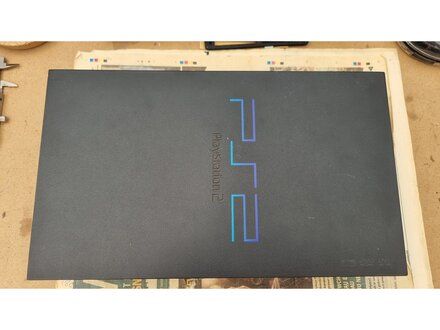

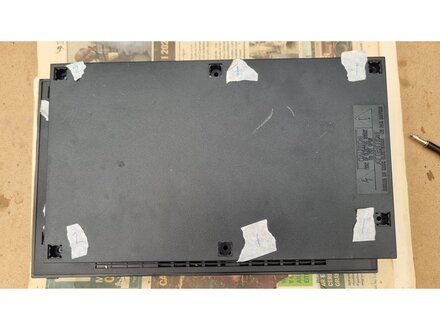

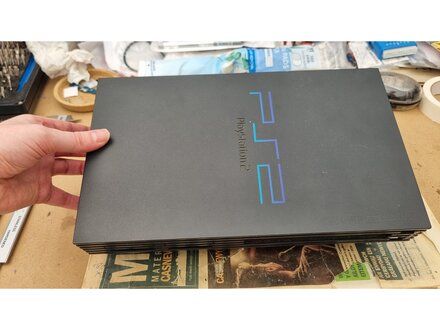

• Flip over the PS2 and make sure the top is face up and the front of the console is nearest to you.

Step 4 :: Remove the top cover

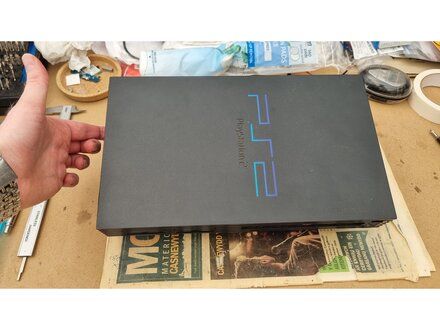

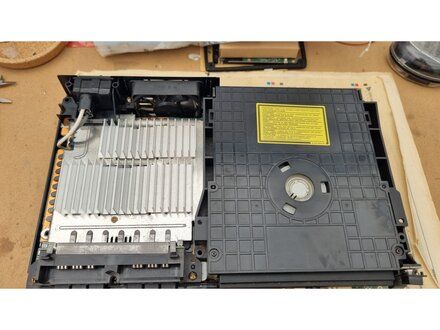

• Lift the rear of the top cover to an angle of about 40-45 degrees.
• Slide the cover forward and over the controller ports, dvd drive and the power/reset and eject buttons.

Conclusion

To reassemble your device, follow these instructions in reverse order.
