Replacing Atari Lynx Buttons and D-Pad

Device	Atari Lynx
Difficulty	Easy
Time	15 minutes
Steps	6

This guide is by Tyler Williams on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will take you step-by-step on how to replace your buttons.

Tools: Phillips #1 Screwdriver; Phillips #0 Screwdriver

Step 1

• Before disassembling your Atari Lynx, be sure the device is powered off.

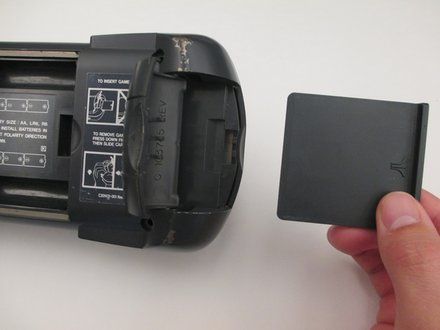

• Remove any game in the console by opening the right latch and sliding the game to the right.

Step 2

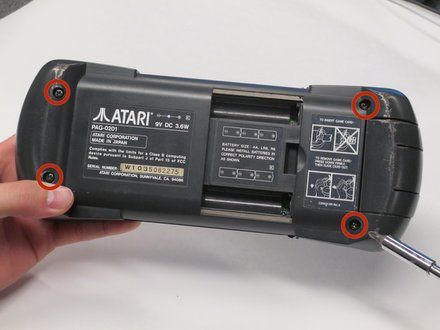

• Remove the four 35 mm Phillips #1 screws at each corner of the backside on the Atari Lynx.
• Pinch the rear panel with your fingers and lift away from the Atari.

Step 3

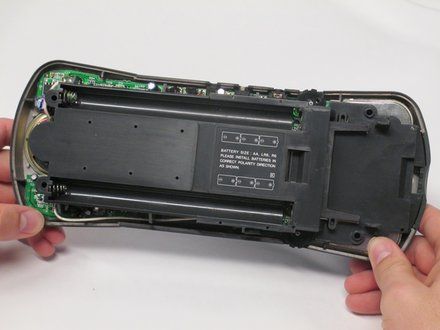

• Remove the battery panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear any wires attached to battery panel.

Step 4

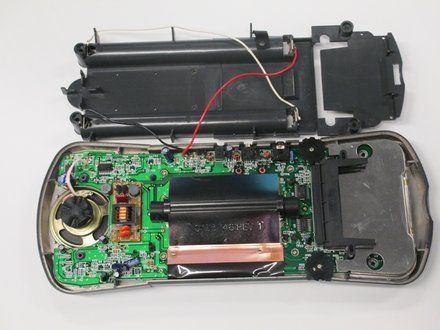

• Remove the control panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear the speaker wire while removing the control panel.

Step 5

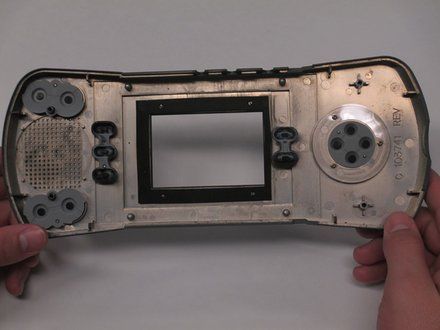

• If you want to replace the buttons other than the D-pad, you can pull them up by pinching the sides with your fingers and lifting away from the front panel of Atari.

Step 6

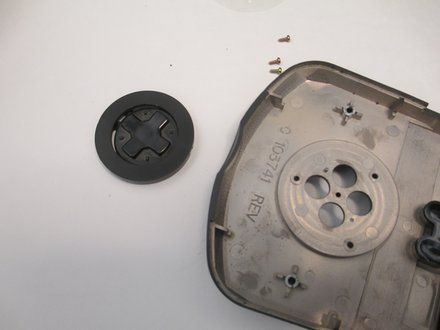

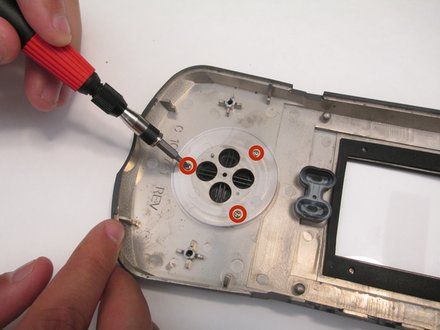

• To remove the D-Pad, remove three 10 mm Phillips #0 screws surrounding the D-Pad.
• The buttons should fall out once the screws have been removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
