REPLACING AN ATARI CAPACITOR::
DeviceAtari Lynx
DifficultyDifficult
TimeNo estimate
Steps7
This guide is by John Lopez on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Before starting this guide you may need some experience with soldering/ desoldering. If you do not know how, you can learn by clicking the link on step 5 (when you have to desolder the aluminum tabs).

Tools: Phillips #1 Screwdriver; Soldering Iron; Lead-Free Solder


STEP 1::
[step 1 photo]
• Before disassembling your Atari Lynx, be sure the device is powered off.

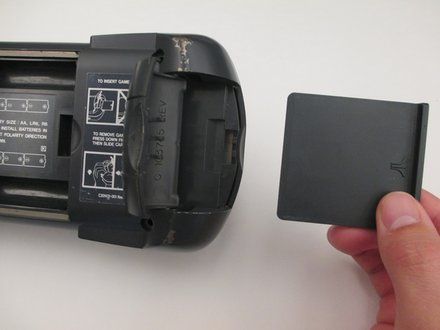

• Remove any game in the console by opening the right latch and sliding the game to the right.

STEP 2::
[step 2 photo]

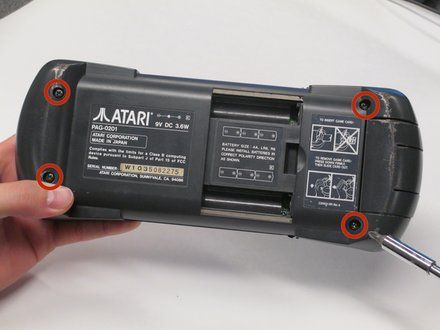

• Remove the four 35 mm Phillips #1 screws at each corner of the backside on the Atari Lynx.
• Pinch the rear panel with your fingers and lift away from the Atari.

STEP 3::
[step 3 photo]

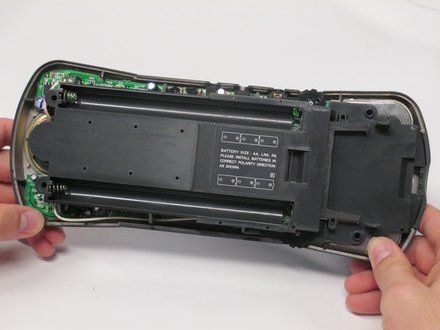

• Remove the battery panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear any wires attached to battery panel.

STEP 4::
[step 4 photo]

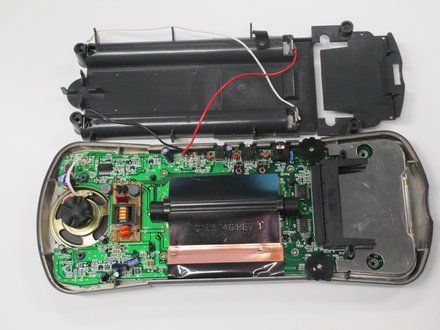

• Remove the control panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear the speaker wire while removing the control panel.

STEP 5::
[step 5 photo] [step 5 photo]

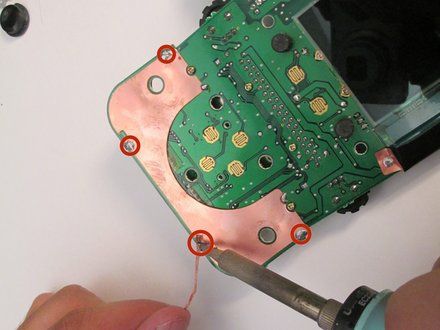

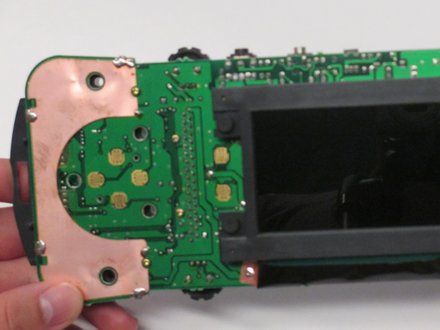

• Desolder the four aluminum tabs and for more information on soldering click here (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750).

STEP 6::
[step 6 photo]

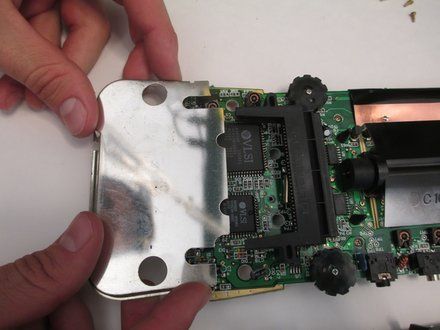

• Remove the aluminum back protector to gain access to the C10 capacitor.

STEP 7::
[step 7 photo] [step 7 photo]

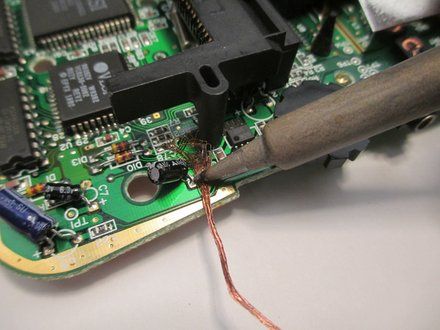

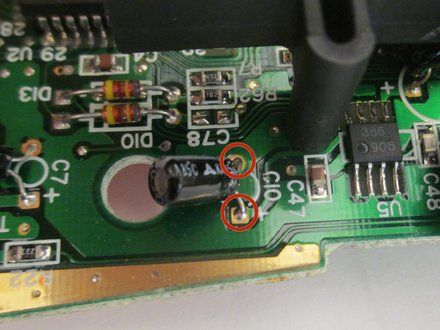

• Desolder the C10 capacitor.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
