Replacing Atari Lynx Speaker

Device	Atari Lynx
Difficulty	Difficult
Time	No estimate
Steps	6

This guide is by Tyler Williams on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to replace the speaker from your Atari Lynx. Before beginning, it is a must to know how to solder and desolder. In order to find out how to do these processes there will be a link in the the following steps. Aside from soldering, most steps should be easy to follow and simple.

Tools: Soldering Iron; Lead-Free Solder; Phillips #1 Screwdriver

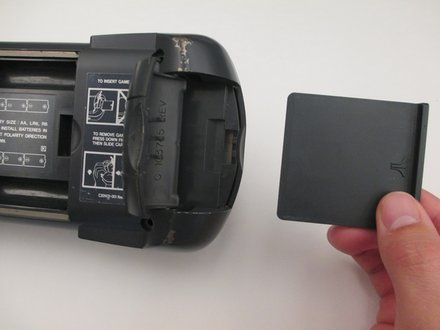

Step 1

• Before disassembling your Atari Lynx, be sure the device is powered off.
• Remove any game in the console by opening the right latch and sliding the game to the right.

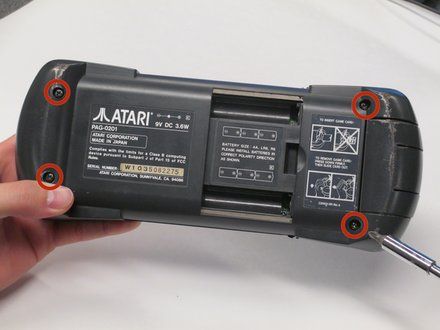

Step 2

• Remove the four 35 mm Phillips #1 screws at each corner of the backside on the Atari Lynx.
• Pinch the rear panel with your fingers and lift away from the Atari.

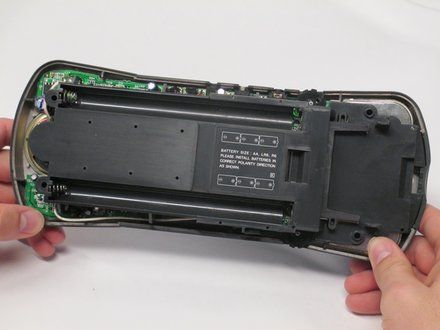

Step 3

• Remove the battery panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear any wires attached to battery panel.

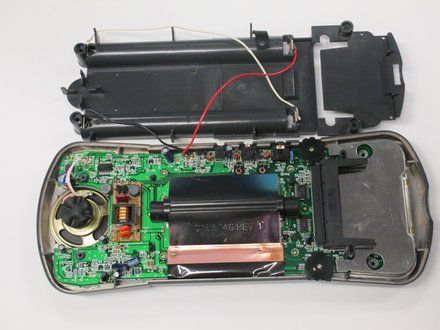

Step 4

• Remove the control panel by pinching the sides with your fingers and lifting it away from the Atari.
• CAUTION: Be sure not to tear the speaker wire while removing the control panel.

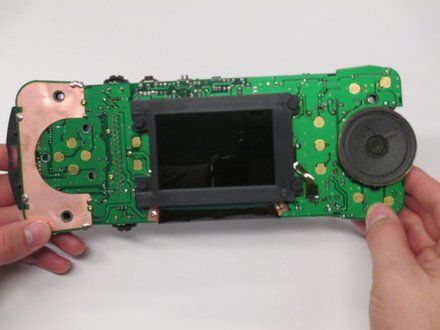

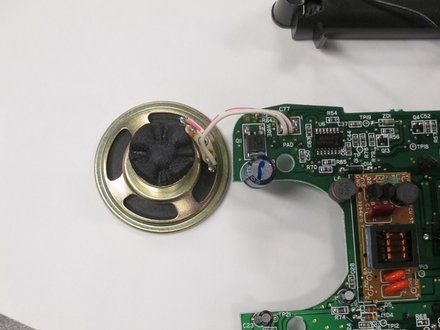

Step 5

• Remove the logic board from the console.
• Flip the logic board so the screen is facing down.

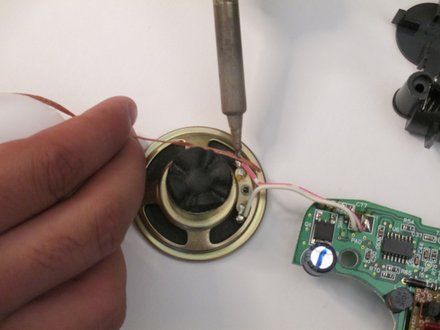

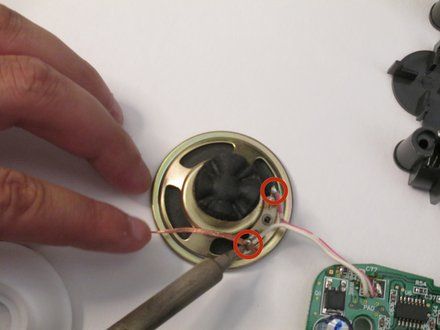

Step 6

• Now you will need to desolder both of the wires connected to the speaker.
• If you are having trouble desoldering, click here (https://www.ifixit.com/Guide/How+To+Solder+and+Desolder+Connections/750).
• Finally solder the new speaker back on and follow the previous steps in reverse order.

Conclusion

To reassemble your device, follow these instructions in reverse order.
