Power Mac G4 Quicksilver video adapter card replacement

Device	Power Mac G4 Quicksilver
Difficulty	Easy
Time	5 - 10 minutes
Steps	7

This guide is by Cameron Christensen on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This is hidden prereq.

Tools: Phillips #0 Screwdriver

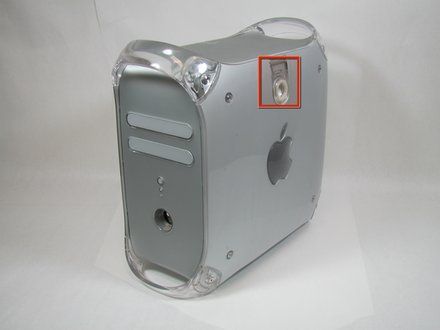

Step 1

• The handle to open your computer is located on top of the right side panel.

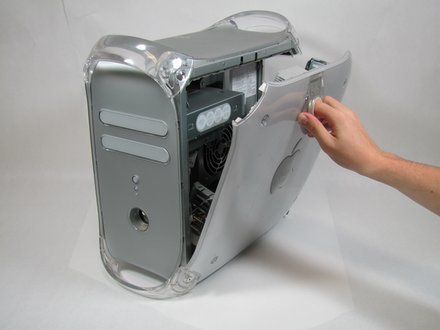

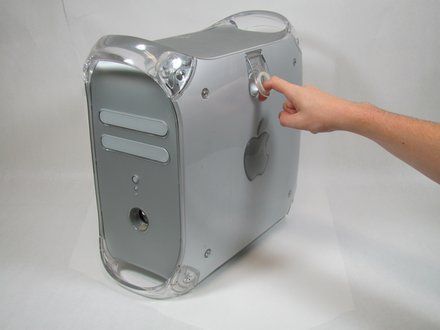

Step 2

• Grab the circular handle and pull outward.

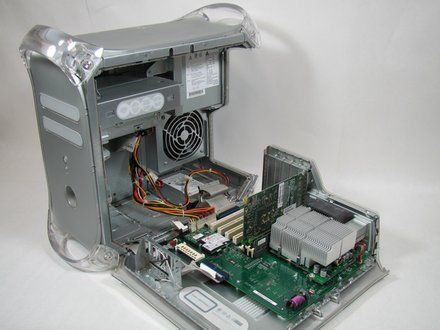

Step 3

• Your computer is now open and ready for repair.

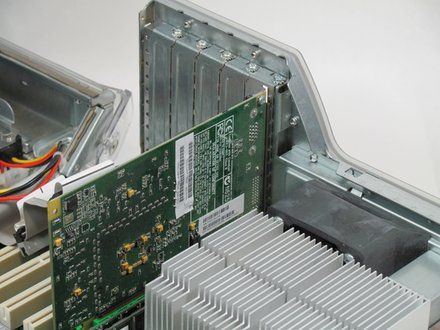

Step 4

• This is your Power Mac G4's video adapter.

Step 5

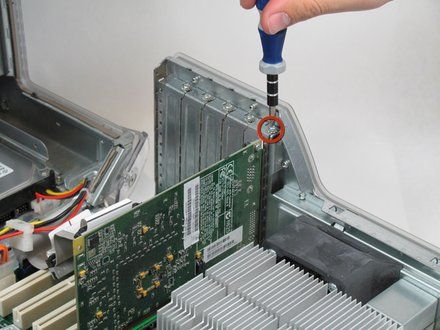

• Start by removing the screw holding the card to the chassis as shown.

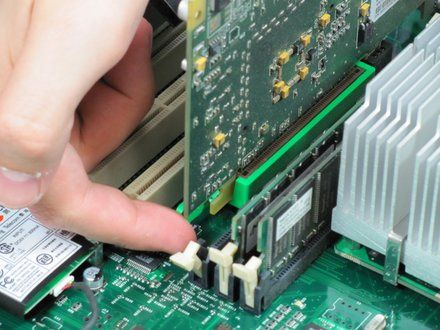

Step 6

• Before lifting the card out, this small plastic tab needs to be pulled back there by releasing it entirely.

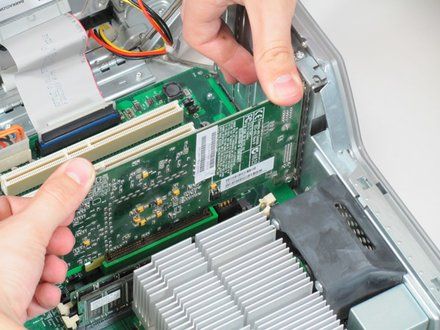

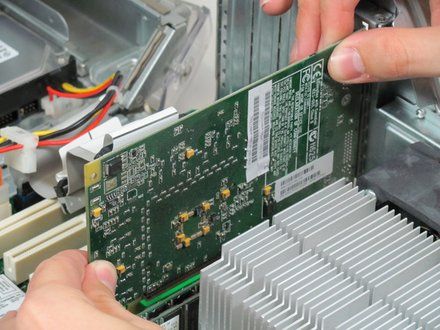

Step 7

• With the tab and screw removed, lift the card straight out.
• NOTE: When putting the card back in, take care to apply even pressure across the top with your thumbs. This will avoid damaging the card.

Conclusion

To reassemble your device, follow these instructions in reverse order.
