Power Mac G4 Quicksilver Optical Drive Disassembly

Device	Power Mac G4 Quicksilver
Difficulty	Easy
Time	10 - 15 minutes
Steps	7

This guide is by Jacob Garcia on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This is meant to be a private prereq guide.

Tools: Phillips #1 Screwdriver

Step 1

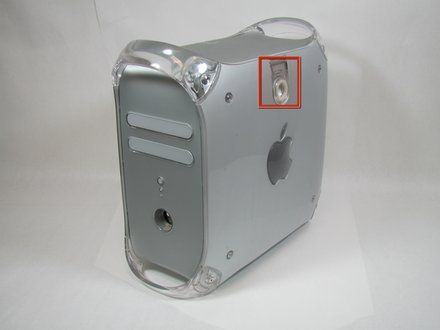

• The handle to open your computer is located on top of the right side panel.

Step 2

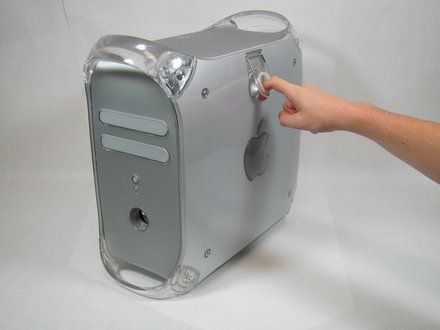

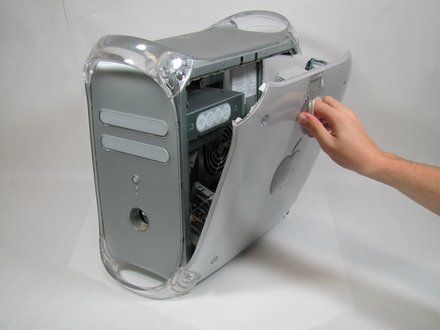

• Grab the circular handle and pull outward.

Step 3

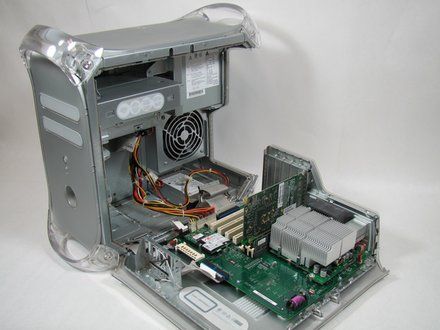

• Your computer is now open and ready for repair.

Step 4

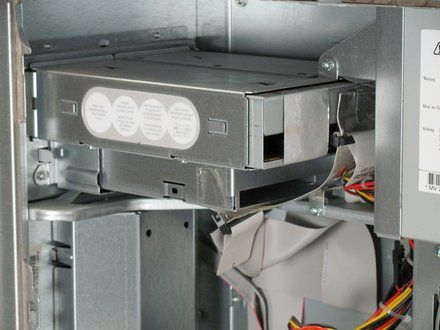

• The optical drive is in the top left corner of the case.

Step 5

• There are four screws to be removed.

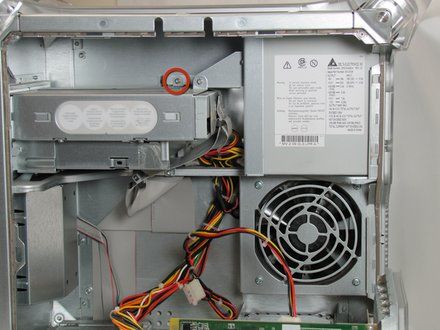

• The first screw can be seen in the first picture.

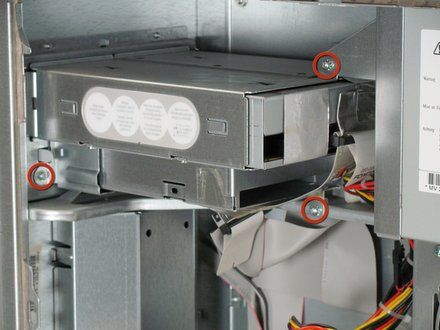

• The remaining three screws can be seen in the second picture.

Step 6

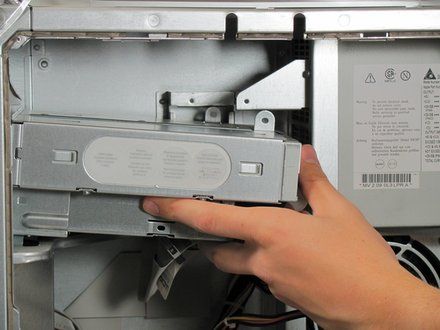

• Remove the optical drive by pulling the drive away from the front of the computer and out.

Step 7

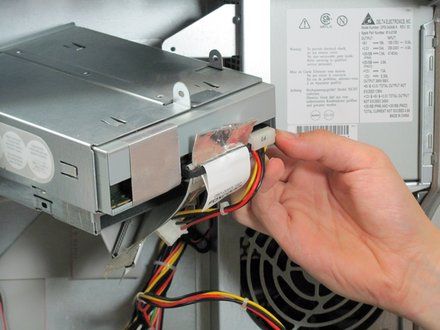

• Detach the two cables attached to the back of the drive.
• NOTE: The flat ribbon cable can be detached by pulling the silver tab. The multicolored cable can be removed by grasping the plastic connector on either side and pulling with substantial force.

Conclusion

To reassemble your device, follow these instructions in reverse order.
