Power Mac G4 Quicksilver Central Processing Unit Replacement

Device	Power Mac G4 Quicksilver
Difficulty	Difficult
Time	45 minutes - 1 hour
Steps	14

This guide is by Ryan Bylard on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Removing the CPU of the Power Mac G4 Quicksilver for replacement.

Tools: Phillips #0 Screwdriver

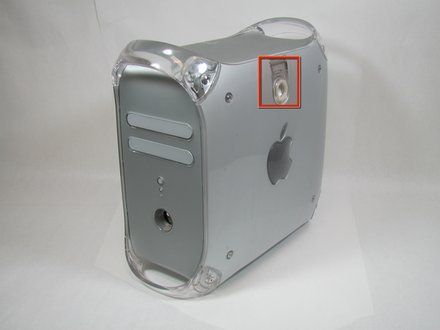

Step 1

• The handle to open your computer is located on top of the right side panel.

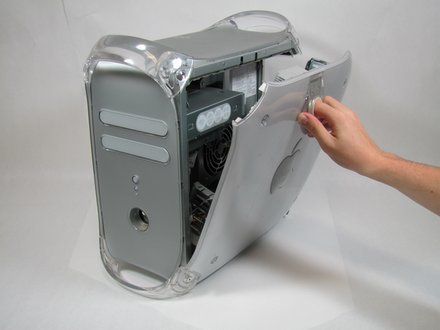

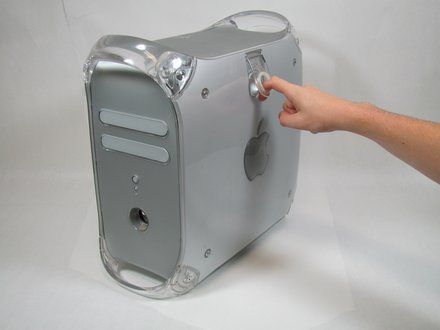

Step 2

• Grab the circular handle and pull outward.

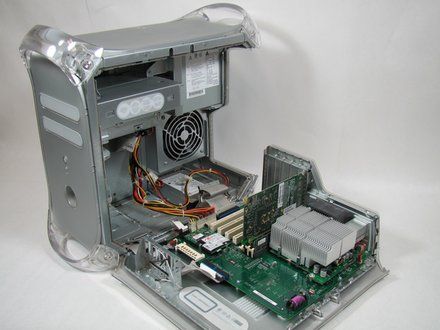

Step 3

• Your computer is now open and ready for repair.

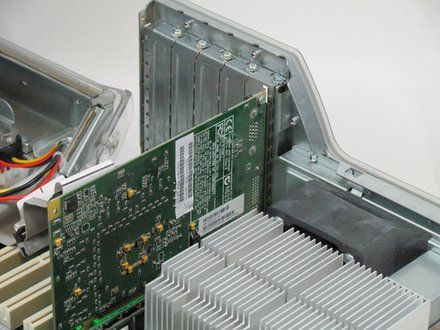

Step 4

• This is your Power Mac G4's video adapter.

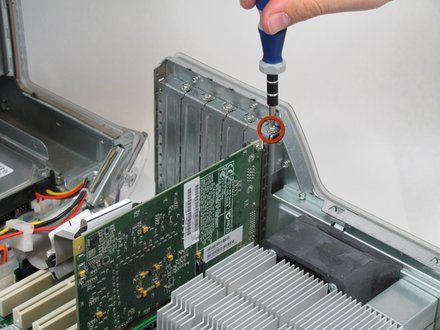

Step 5

• Start by removing the screw holding the card to the chassis as shown.

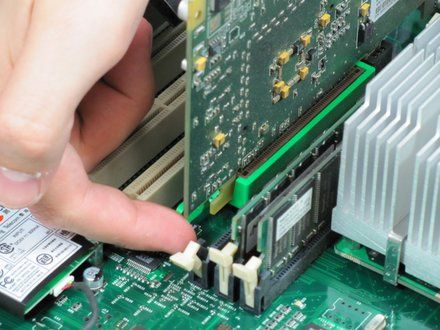

Step 6

• Before lifting the card out, this small plastic tab needs to be pulled back there by releasing it entirely.

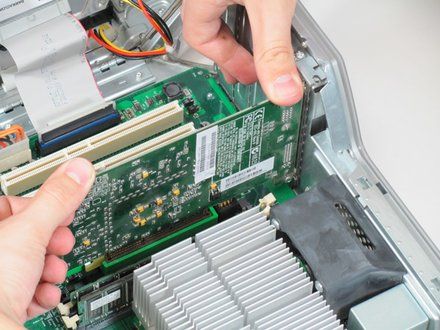

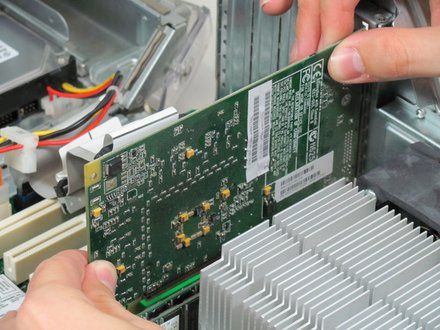

Step 7

• With the tab and screw removed, lift the card straight out.
• NOTE: When putting the card back in, take care to apply even pressure across the top with your thumbs. This will avoid damaging the card.

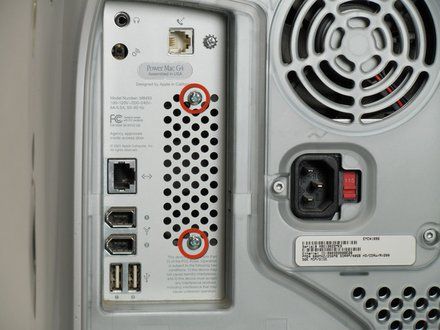

Step 8

• First you want to remove the fan. Remove the two screws on the back of the computer in the upper left hand corner.

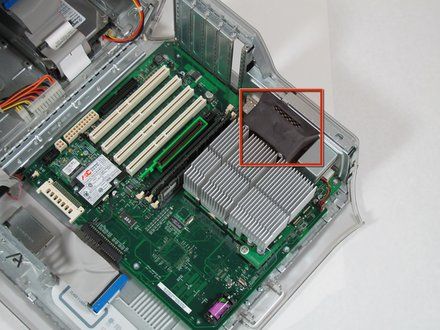

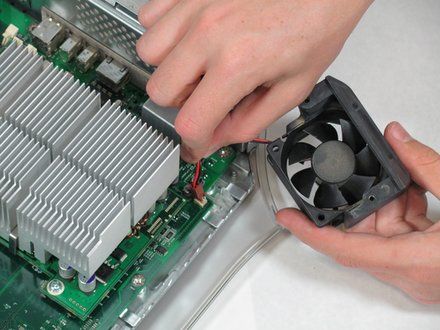

Step 9

• Remove the fan unit by pulling straight up and out.
• NOTE: Be carful not to rip out the cord still attached to the motherboard. Remove it gently.

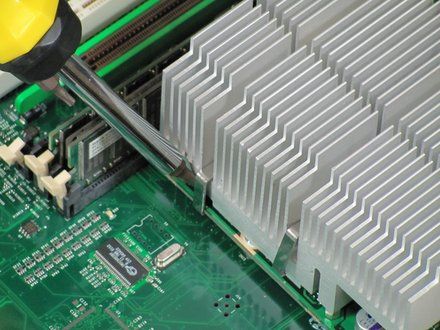

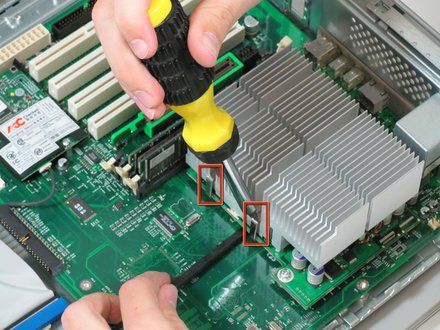

Step 10

• You need detach the heat sink from the CPU. Locate the four clamps holding it down, two on each side.
• NOTE: Taking off the clamps can be difficult. Use a screwdriver to push down on the top of the clip. Then insert a spudger below the heat sink to pull it away from the board, releasing the heat sink.

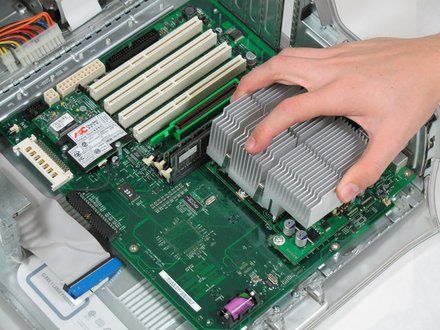

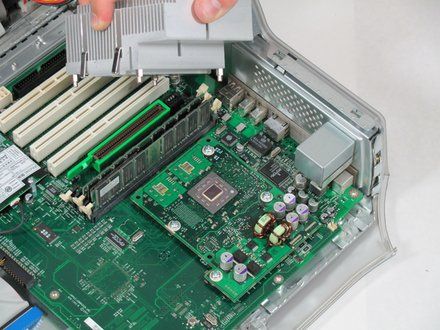

Step 11

• Pull the heat sink up and off of the CPU.

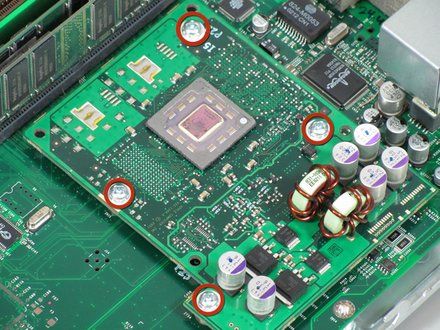

Step 12

• Remove the four screws holding the CPU to the motherboard.

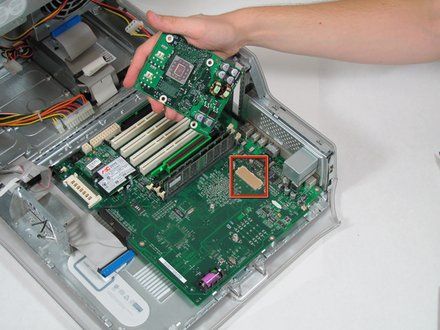

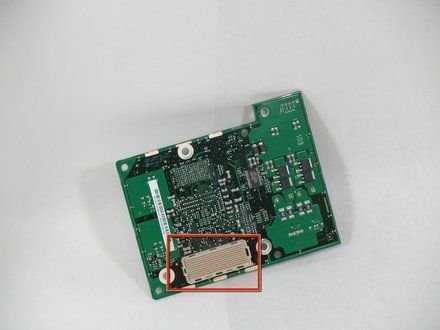

Step 13

• Now you can remove the CPU by pulling it straight up from the motherboard.
• CAUTION: Be very careful when you detach the CPU. There is a connector that has hundreds of little prongs. You must not bend or break any of them! Be extremely careful.

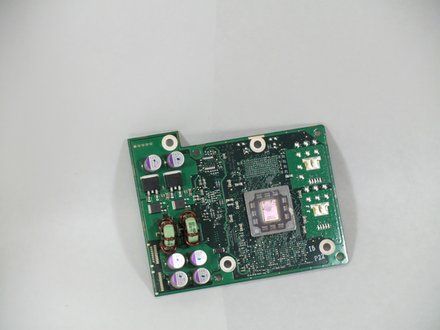

Step 14

• You can now replace the CPU.

Conclusion

To reassemble your device, follow these instructions in reverse order.
