XBOX CONTROLLER S BUTTONS REPLACEMENT
GUIDE::
DeviceXbox Controller S
DifficultyEasy
Time10 minutes
Steps9
This guide is by burntpizza on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will help you replace your Xbox Controller's buttons and D-pad in case they break or need cleaning.

Tools: Phillips #1 Screwdriver; Tweezers


STEP 1 :: BACKPLATE::
[step 1 photo] [step 1 photo]

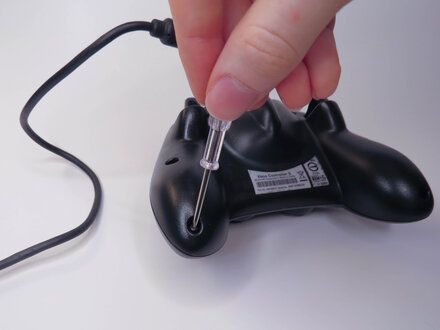

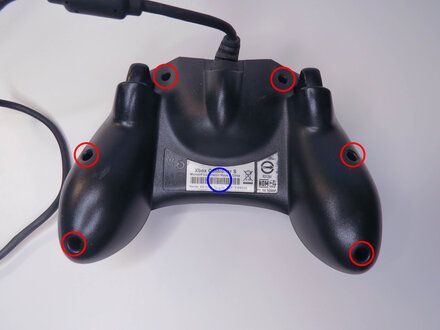

• Remove the six visible 8mm Phillips screws with a #1 Phillips screwdriver.

STEP 2::
[step 2 photo] [step 2 photo]

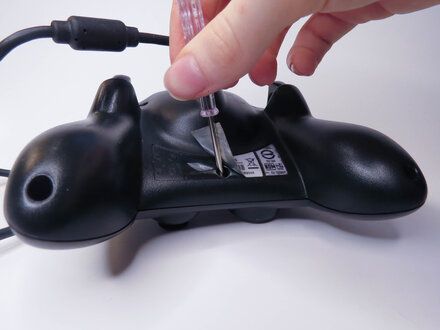

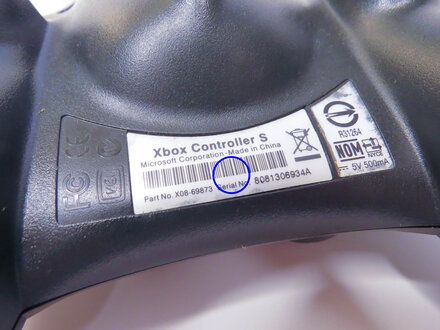

• Peel back the barcode sticker to reveal the seventh Phillips screw and remove it.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

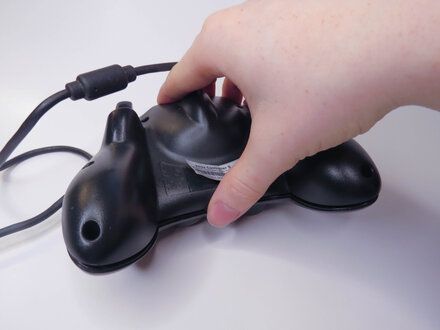

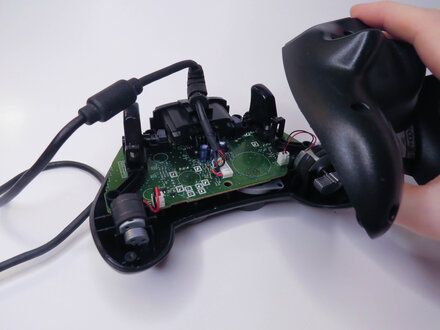

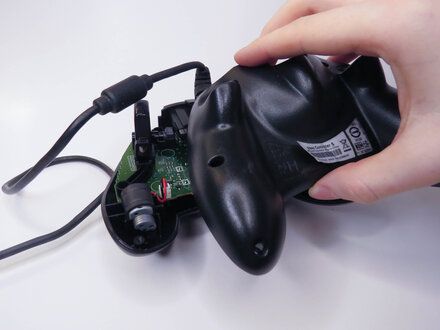

• Carefully lift the backplate off of the controller.
• NOTE: Make sure to hold the frontplate to prevent the buttons from falling out.

STEP 4 :: VIBRATION MOTORS::
[step 4 photo] [step 4 photo] [step 4 photo]

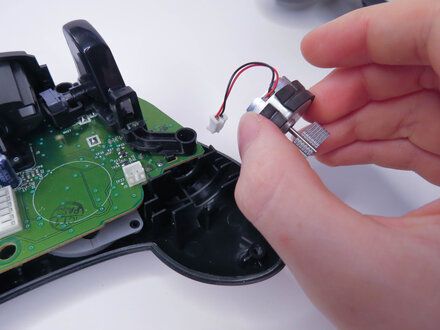

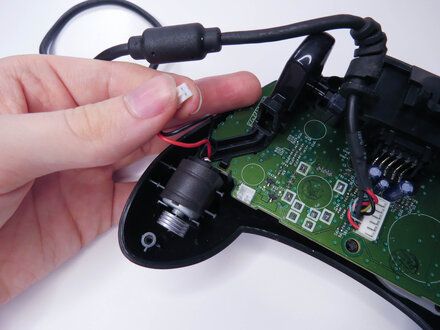

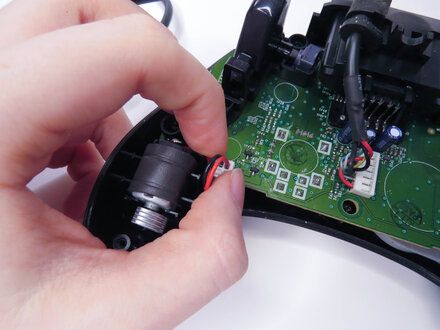

• Unplug the two vibration motors and lift them out of the case, being sure not to pull on the wires.

STEP 5 :: LOGIC BOARD::
[step 5 photo] [step 5 photo]

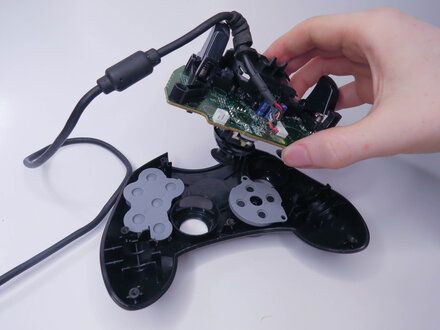

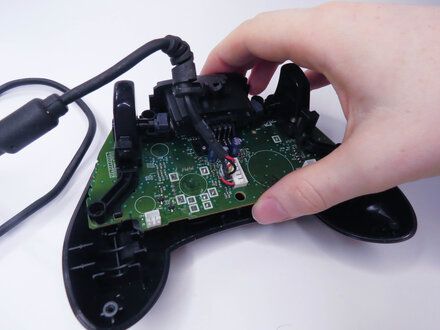

• Lift the logic board out of the controller.

STEP 6 :: RUBBER PADS::
[step 6 photo] [step 6 photo] [step 6 photo]

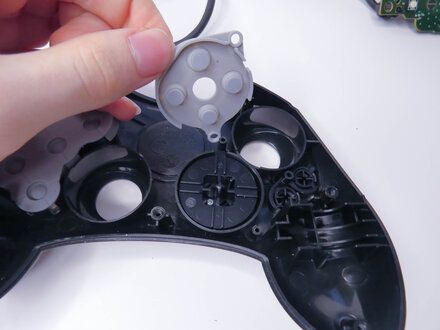

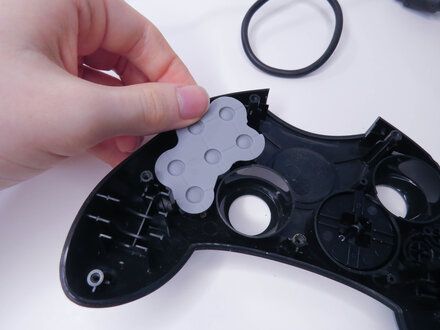

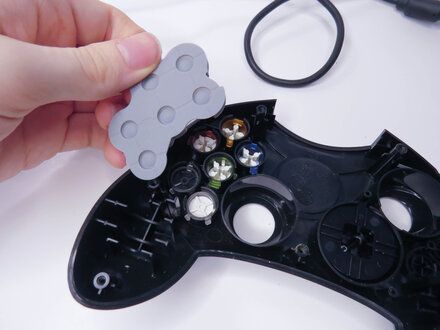

• Remove the rubber pads.

STEP 7 :: BUTTONS::
[step 7 photo] [step 7 photo] [step 7 photo]

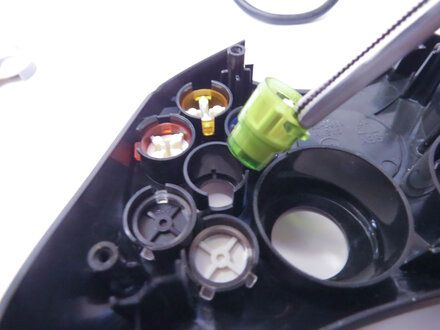

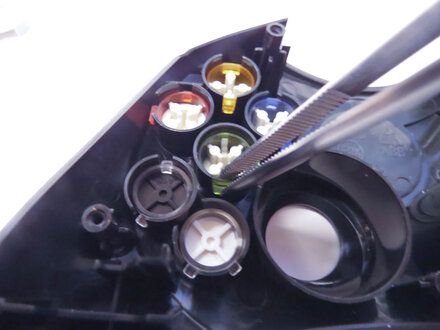

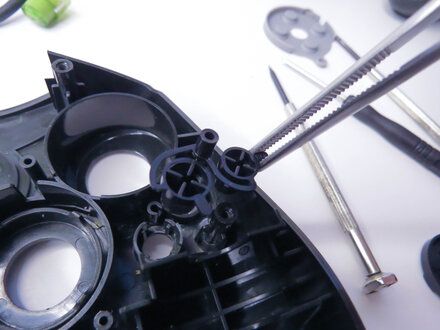

• Remove the A, B, X, Y, White, and Black buttons with a pair of tweezers.
• Remove the Back and Start buttons.
• NOTE: When putting the buttons back in, make sure to align the notches with the case.

STEP 8 :: D-PAD::
[step 8 photo] [step 8 photo] [step 8 photo]

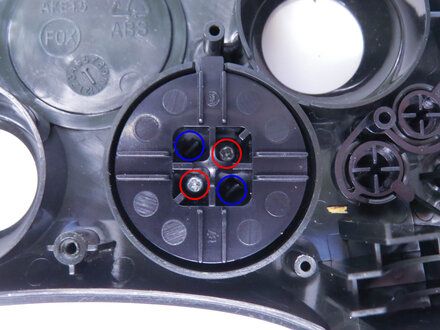

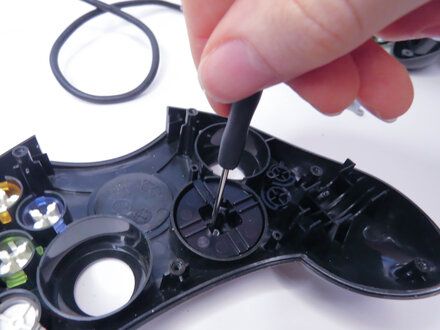

• Unscrew the the two 7mm Phillips screws.

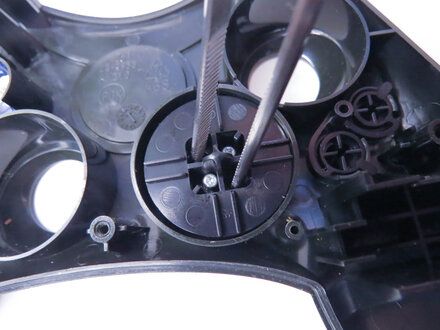

• Separate the D-pad by pushing the two clips in with a pair of tweezers.

STEP 9::
[step 9 photo]

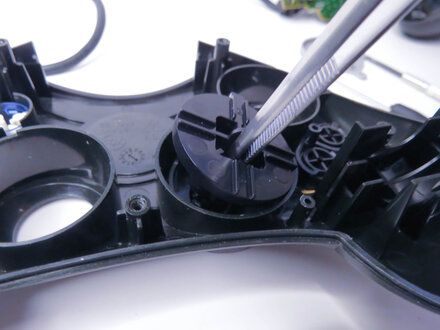

• Separate the two halves of the D-pad.
• NOTE: The front half of the D-pad will fall when you take the back half out, be sure to catch it.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order, being careful to line everything back up.
