Game Boy Advance Batteries Replacement

Device	Game Boy Advance
Difficulty	Very easy
Time	3 minutes
Steps	3

This guide is by Spencer Day on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Follow this guide to replace the two AA batteries in your Nintendo Game Boy Advance model AGB-001.

If your Game Boy doesn't power on or dies quickly, you may need to replace the batteries.

Parts: AA Battery

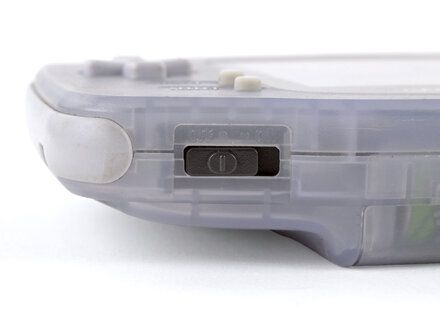

Step 1 :: Power down your Game Boy

• Turn your Game Boy OFF.

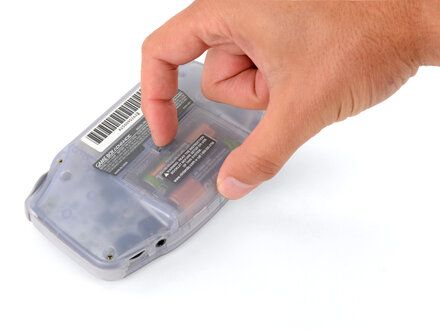

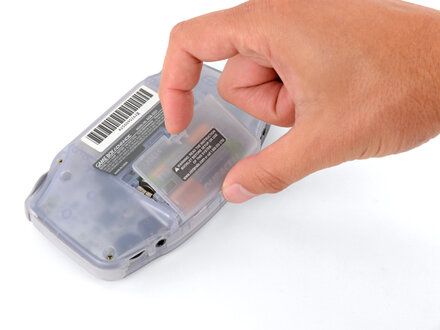

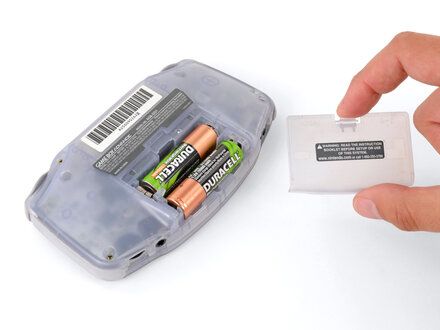

Step 2 :: Remove the battery cover

• Release the battery cover tab with your finger and swing the cover away from your Game Boy to remove it.
• REMINDER: During reassembly, insert the tabs on the bottom edge of the cover into their cutouts and press the cover into place.

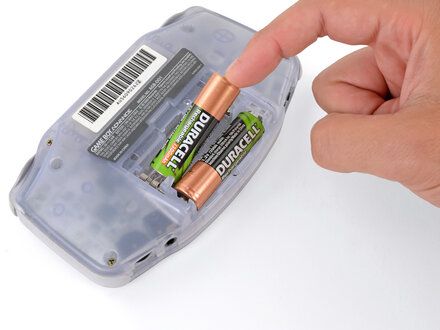

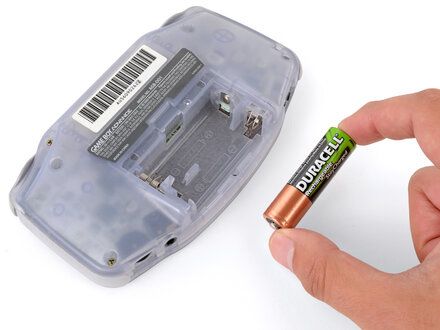

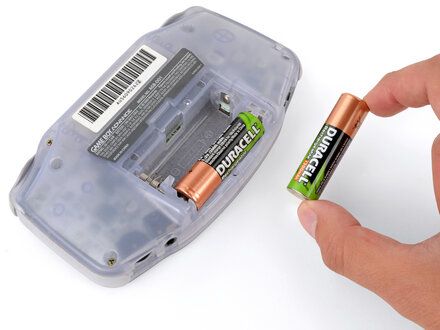

Step 3 :: Remove the batteries

• Remove the two AA batteries.
• NOTE: If the metal terminals are corroded, follow this guide (https://www.ifixit.com/Guide/How+to+Clean+Corroded+Battery+Terminals/164164) to clean them.
• REMINDER: When installing batteries, use the diagram (https://guide-images.cdn.ifixit.com/igi/CuXVhApCfFZ6DpLL.full) in the battery well to properly orient them.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler (https://www.ifixit.com/Wiki/E-Waste).

Repair didn't go as planned? Try some basic troubleshooting (https://www.ifixit.com/Wiki/Troubleshooting_Problems_After_a_Repair), or ask our Answers Community (https://www.ifixit.com/Answers/Device/Game_Boy_Advance) for troubleshooting help.
