XBOX Controller S Trigger Replacement
DeviceXbox Controller S
DifficultyModerate
Time15 - 30 minutes
Steps4
This guide is by WyattGripp on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If the trigger on your Xbox Controller S is unresponsive or difficult to press, use this guide to replace it. The trigger is used to perform in-game actions, such as aiming or firing a weapon. Step 4 requires desoldering to remove the trigger from the motherboard.

Tools: Soldering Iron; Solder Wick Braid; Phillips #00 Screwdriver; Solder ROHS Lead Free Rosin Core


Step 1
[step 1 photo]

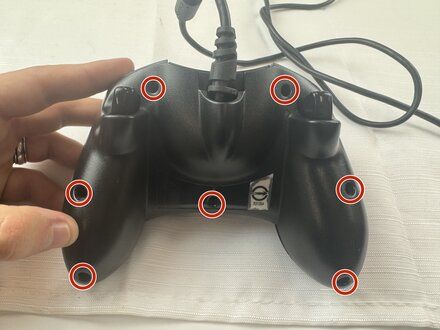

• Remove the seven 9.4 mm screws on the back of the controller using a Phillips #00 screwdriver.
• NOTE: One screw is hidden behind the sticker on the back of the controller. Peel that sticker back and remove that screw as well.

Step 2
[step 2 photo] [step 2 photo] [step 2 photo]
• NOTE: Keep the controller facing down to prevent components from falling out.

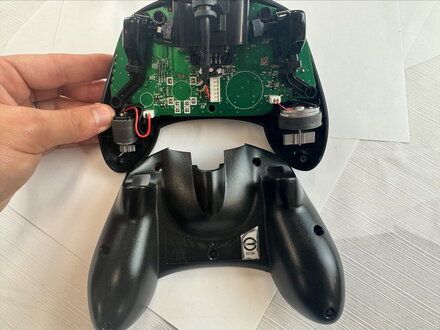

• Remove the back shell.

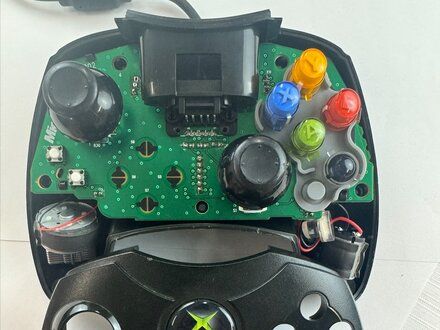

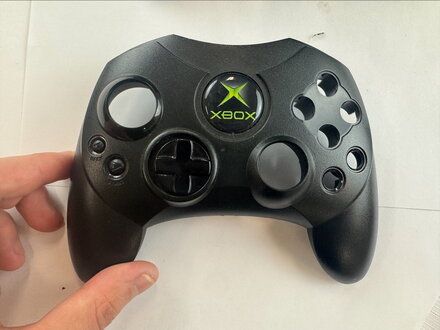

• Flip the controller over and remove the front shell.

Step 3
[step 3 photo] [step 3 photo]

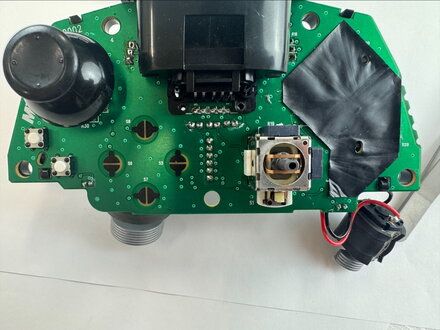

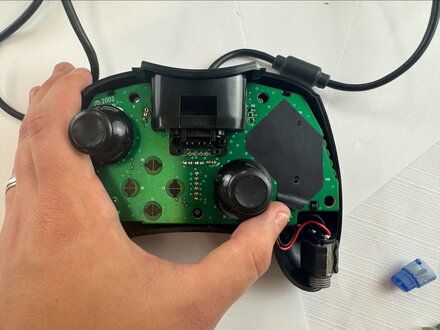

• Carefully remove the motherboard from the shell.

Step 4
[step 4 photo] [step 4 photo] [step 4 photo]

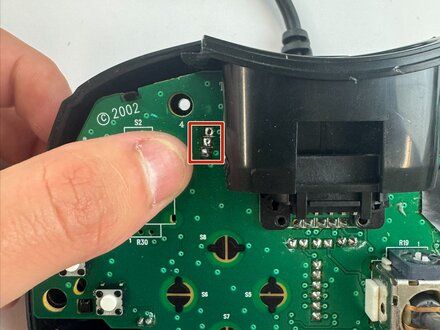

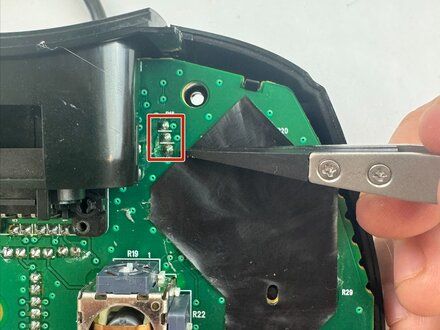

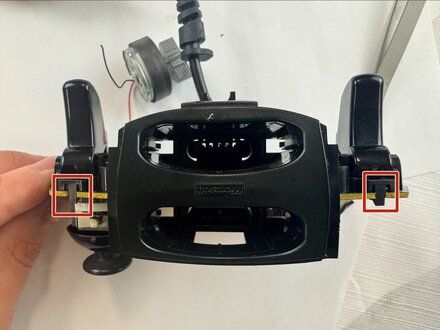

• Desolder the three attachment points for the trigger, then unclip the trigger from the circuit board.
• REMINDER: Clip in the new replacement trigger and solder the three attachment points.

Conclusion
To reassemble your device, follow these instructions in reverse order.
