PlayStation 2 Slimline Optical Drive Replacement
DevicePlayStation 2 Slimline
DifficultyEasy
Time5 - 10 minutes
Steps9
This guide is by Thomas Sullivan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Phillips #1 Screwdriver; Spudger; Tweezers


Step 1
[step 1 photo]

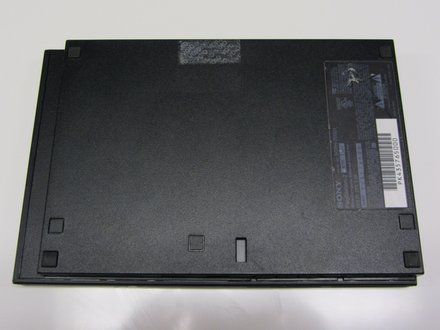

• Disconnect all cables from the console and flip the unit over to reveal its base.

Step 2
[step 2 photo] [step 2 photo] [step 2 photo]

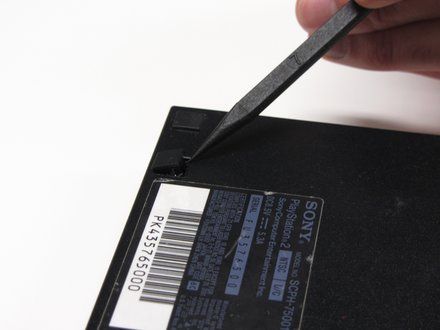

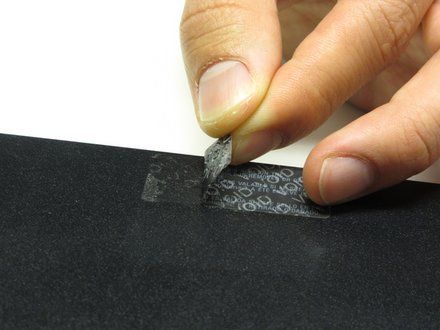

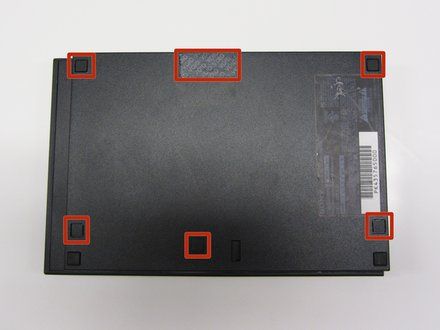

• Locate the 6 feet on the base of the unit. Pry them off using a spudger to reveal the screws.
• NOTE: Note: One of the feet is located under the sticker shown in the photo. Removing this sticker will void any warranty with Sony.

Step 3
[step 3 photo] [step 3 photo] [step 3 photo]

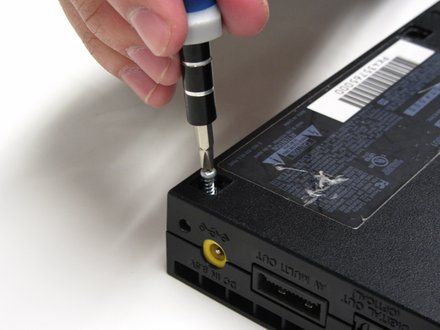

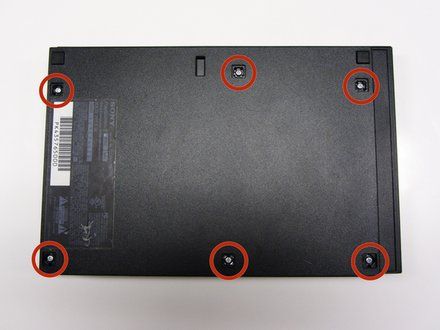

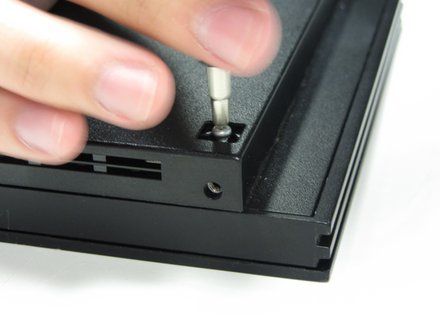

• Remove all six 4.0 mm screws from the base of the unit using a #1 Phillips screwdriver.

Step 4
[step 4 photo] [step 4 photo] [step 4 photo]

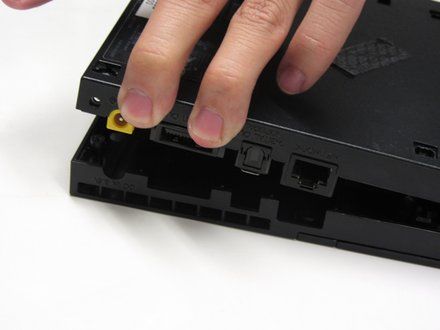

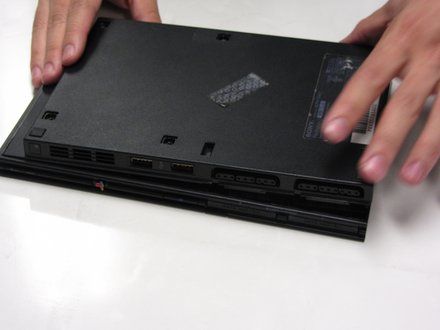

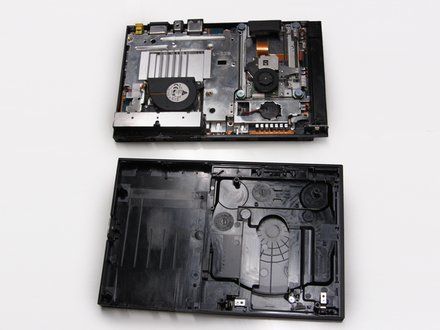

• Starting at the corner at which the power and Ethernet ports are located, pry open the outer shell using a spudger and continue around the entire unit.
• NOTE: Note: You may use your hands for additional force to separate the two pieces of the outer shell.

Step 5
[step 5 photo] [step 5 photo]

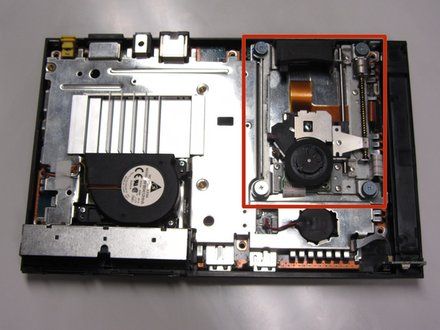

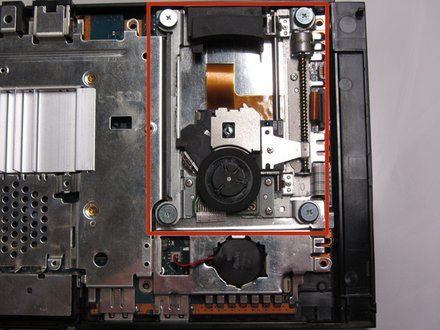

• Locate the optical drive which occupies most of the space on the right side of the unit. It can be identified by the four screws with wide-diameter heads fastening the optical drive to the motherboard.

Step 6
[step 6 photo] [step 6 photo]

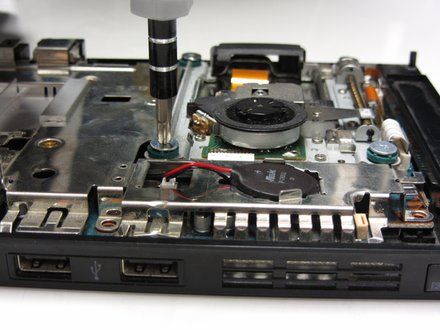

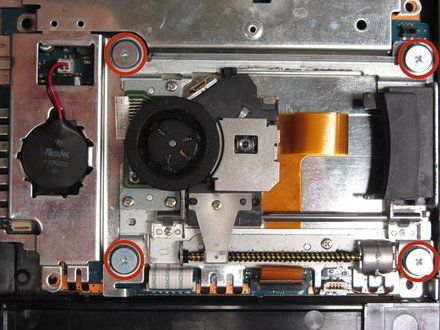

• Remove the four 4.0 mm screws using a #1 Phillips screwdriver.

Step 7
[step 7 photo]

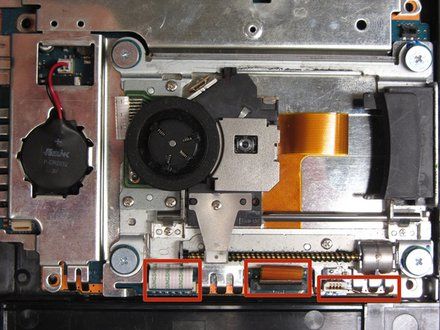

• Locate the three ribbon cables connecting the optical drive to the motherboard.

Step 8
[step 8 photo] [step 8 photo] [step 8 photo]

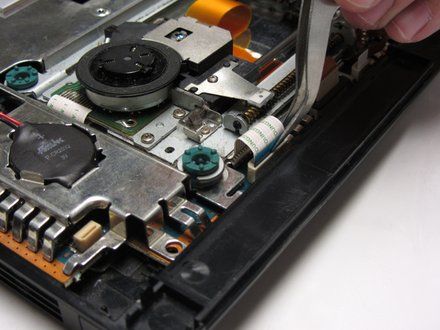

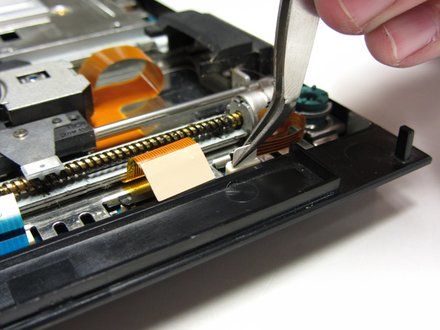

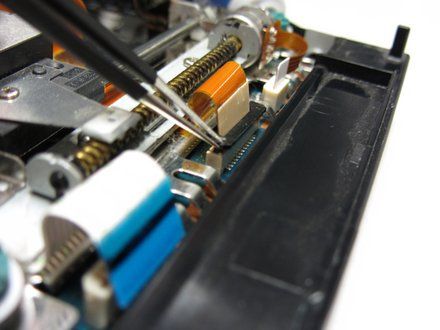

• Gently detach the ribbon cables from the motherboard using a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers).
• NOTE: Note: The ribbon cable in the center must be unlocked by lifting up the black tab. Remember to push the tab down upon re-installation to secure the cable.
• CAUTION: Caution: Always remove ribbon cables by the plastic handles located on each end. Gripping a ribbon cable anywhere but the provided handles can damage the cable and render the component useless.

Step 9
[step 9 photo] [step 9 photo] [step 9 photo]

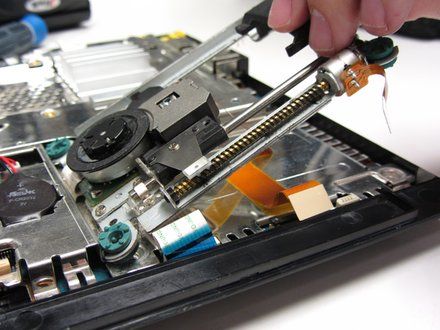

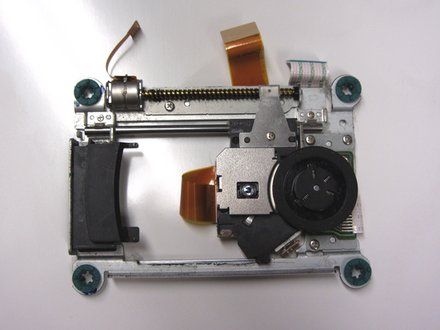

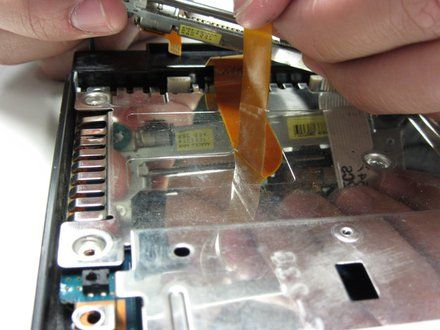

• Remove any tape fastening the cables to the motherboard and gently lift and remove the optical drive.

Conclusion
To reassemble your device, follow these instructions in reverse order.
