PLAYSTATION 2 SLIMLINE IR SENSOR
REPLACEMENT::
DevicePlayStation 2 Slimline
DifficultyModerate
Time10 - 20 minutes
Steps7
This guide is by Thomas Sullivan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to locate and replace the Infrared Sensor in the Playstation 2 Slimline. The IR sensor reads wireless signals so PS2 controllers and remotes function as if they were plugged into the unit.

Tools: Phillips #1 Screwdriver; Spudger


STEP 1::
[step 1 photo]

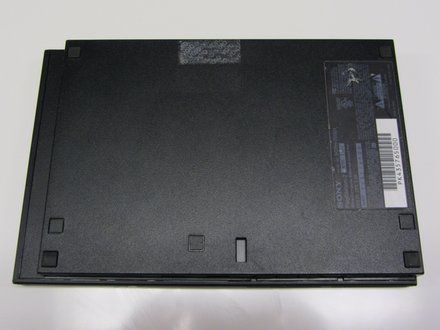

• Disconnect all cables from the console and flip the unit over to reveal its base.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

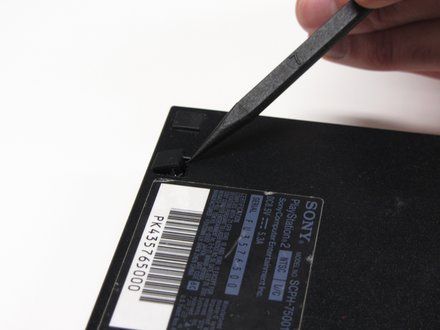

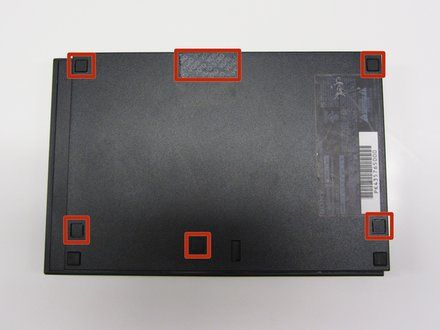

• Locate the 6 feet on the base of the unit. Pry them off using a spudger to reveal the screws.

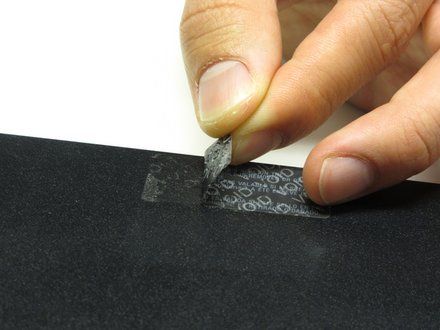

• NOTE: Note: One of the feet is located under the sticker shown in the photo. Removing this sticker will void any warranty with Sony.

STEP 3::
[step 3 photo] [step 3 photo] [step 3 photo]

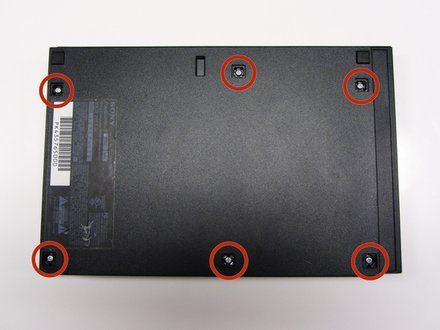

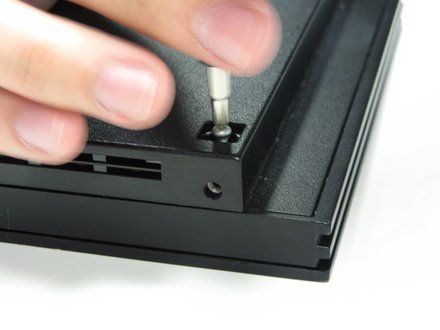

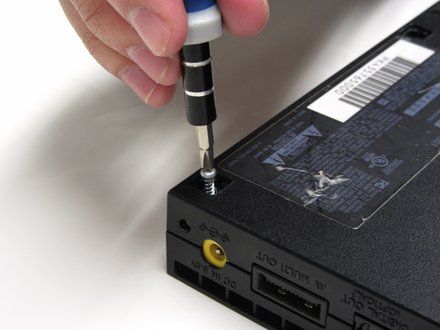

• Remove all six 4.0 mm screws from the base of the unit using a #1 Phillips screwdriver.

STEP 4::
[step 4 photo] [step 4 photo] [step 4 photo]

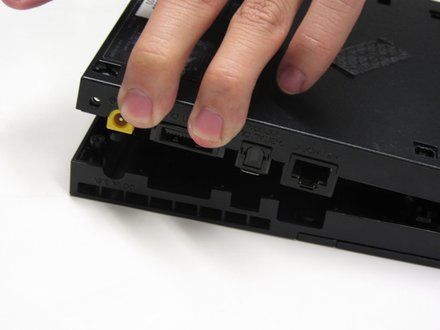

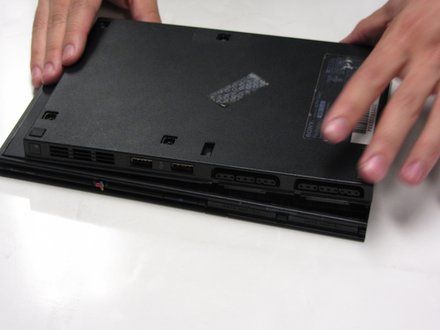

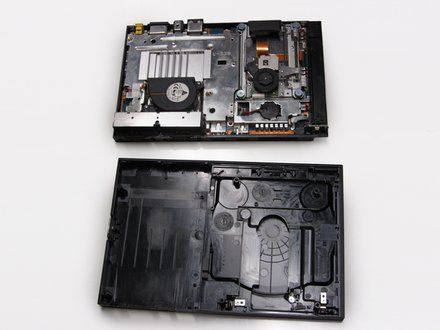

• Starting at the corner at which the power and Ethernet ports are located, pry open the outer shell using a spudger and continue around the entire unit.
• NOTE: Note: You may use your hands for additional force to separate the two pieces of the outer shell.

STEP 5::
[step 5 photo]

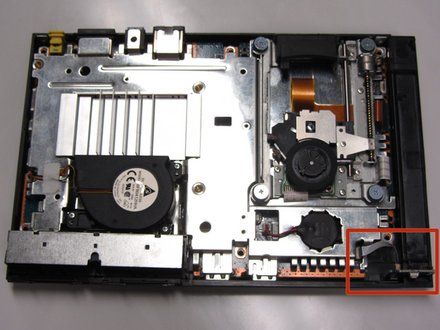

• Locate the IR sensor at the front, right corner of the unit.

STEP 6::
[step 6 photo]

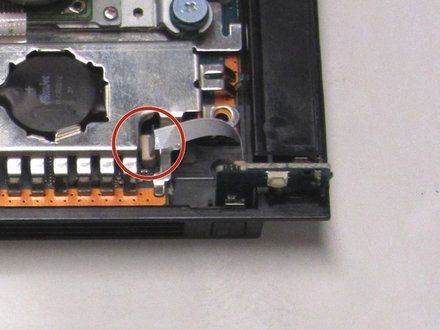

• Gently detach the ribbon cable connecting the IR sensor to the motherboard.
• Caution: Always remove ribbon cables by the plastic handles located on either end. Gripping a ribbon cable anywhere but the provided handles can damage the cable and render the component useless.

STEP 7::
[step 7 photo]

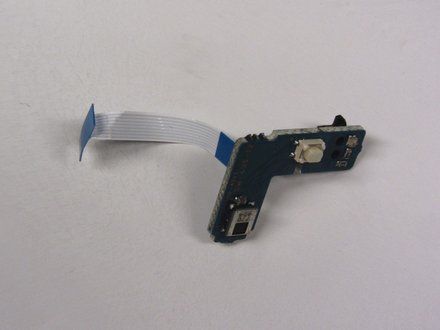

• Gently lift and remove the IR Sensor from its designated slot.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.
