PlayStation 2 Slimline Fan Replacement

Device	PlayStation 2 Slimline
Difficulty	Easy
Time	5 minutes
Steps	8

This guide is by Thomas Sullivan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to locate and replace the fan in the PlayStation 2 Slimline.

Tools: Phillips #1 Screwdriver; Spudger; Tweezers

Step 1

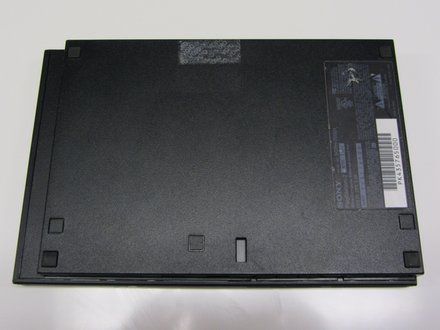

• Disconnect all cables from the console and flip the unit over to reveal its base.

Step 2

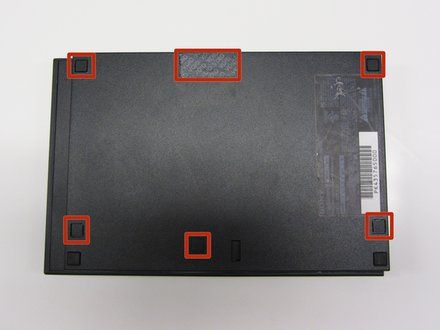

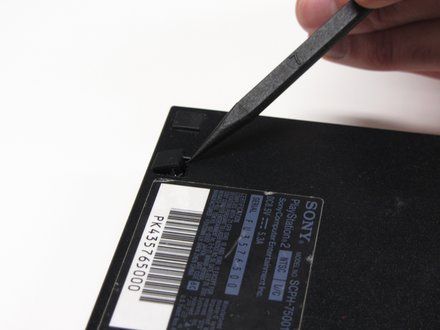

• Locate the 6 feet on the base of the unit. Pry them off using a spudger to reveal the screws.

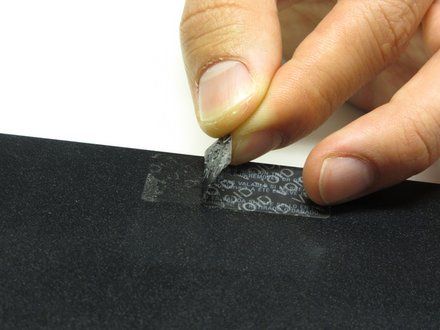

• NOTE: Note: One of the feet is located under the sticker shown in the photo. Removing this sticker will void any warranty with Sony.

Step 3

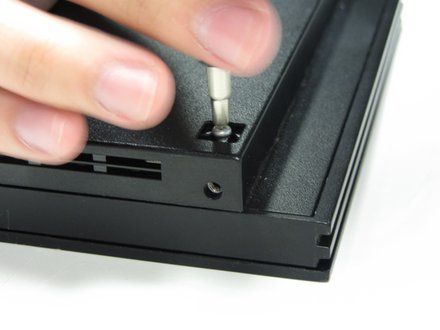

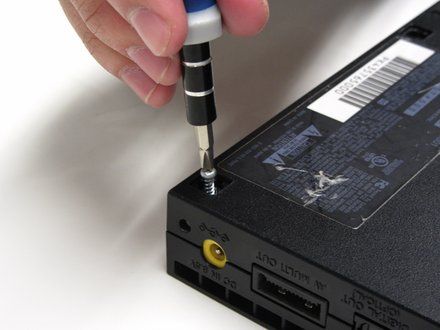

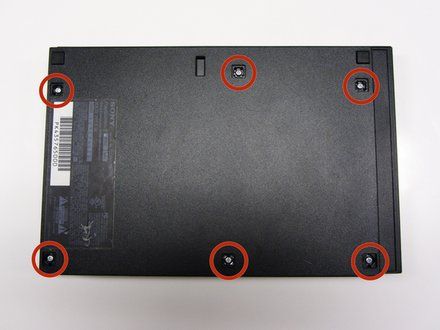

• Remove all six 4.0 mm screws from the base of the unit using a #1 Phillips screwdriver.

Step 4

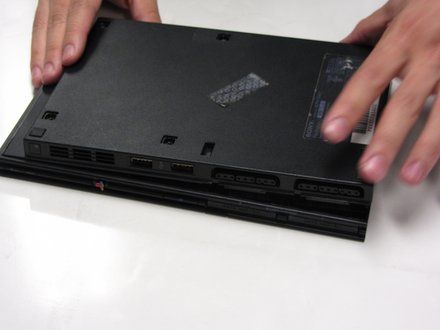

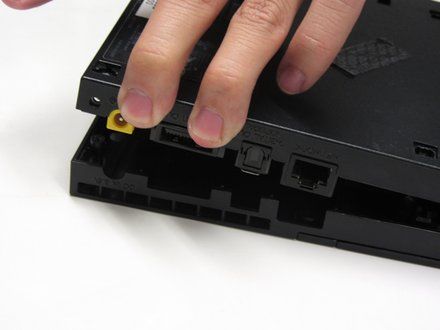

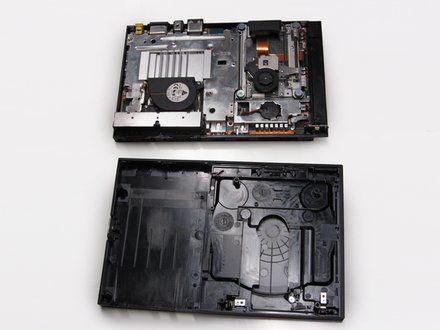

• Starting at the corner at which the power and Ethernet ports are located, pry open the outer shell using a spudger and continue around the entire unit.
• NOTE: Note: You may use your hands for additional force to separate the two pieces of the outer shell.

Step 5

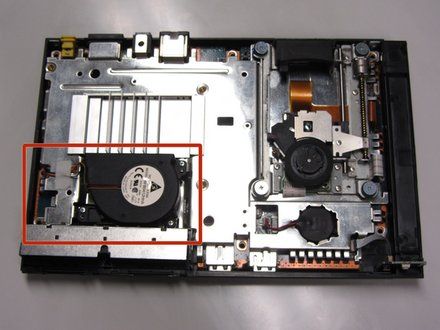

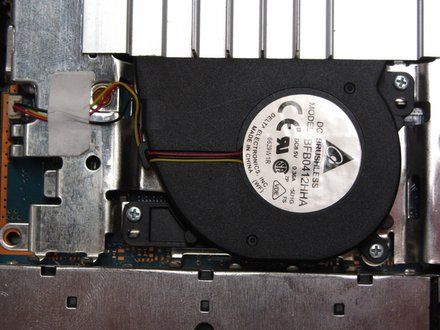

• Locate the fan at the front, left section of the unit.

Step 6

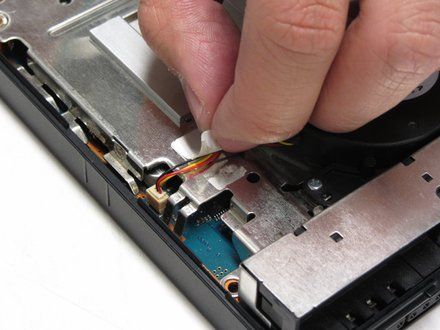

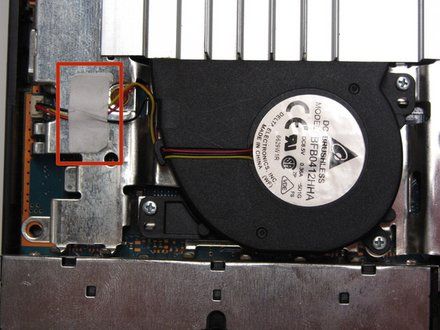

• Peel off the sticker holding the power cords to the unit.

Step 7

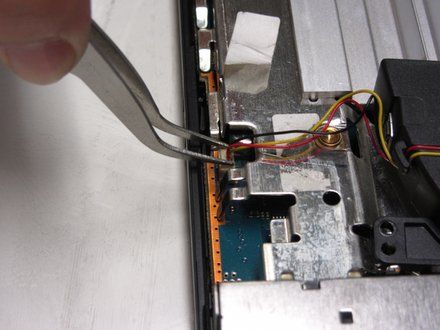

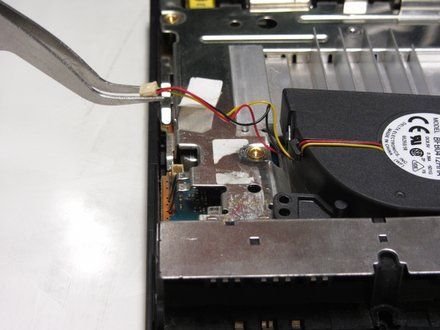

• Lift the connector from the motherboard with a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers) using a firm, upward force.

Step 8

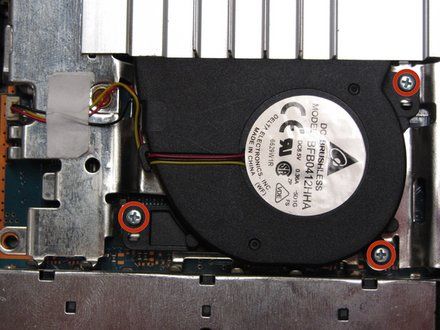

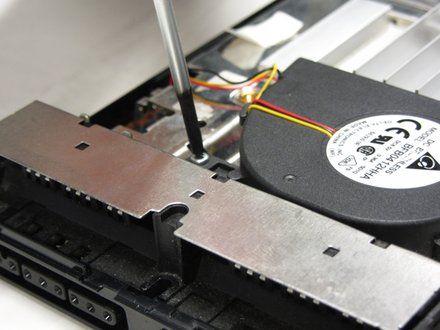

• Remove all three 1.6 mm screws fastening the fan to the unit using a #1 Phillips screwdriver.

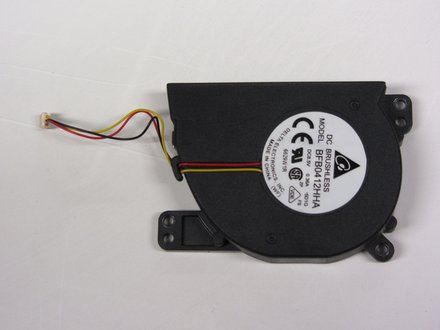

• Gently lift and remove the fan from its compartment.

Conclusion

To reassemble your device, follow these instructions in reverse order.
