PlayStation 2 Slimline Clock Battery Replacement

Device	PlayStation 2 Slimline
Difficulty	Easy
Time	5 minutes
Steps	7

This guide is by Thomas Sullivan on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to locate and replace the clock battery, sometimes known as a CMOS battery or motherboard battery, in the PlayStation 2 Slimline.

Tools: Phillips #1 Screwdriver; Spudger; Tweezers

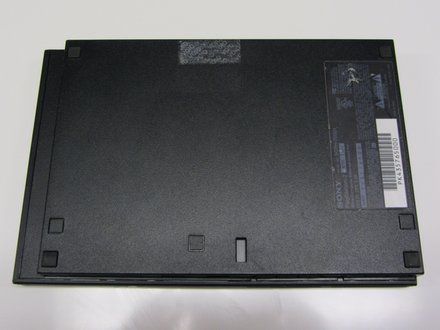

Step 1

• Disconnect all cables from the console and flip the unit over to reveal its base.

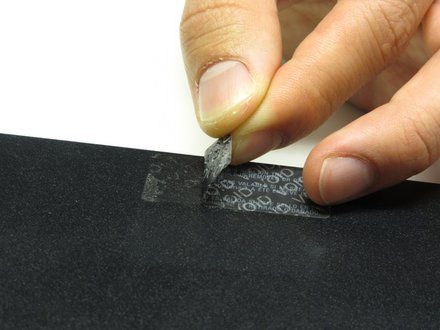

Step 2

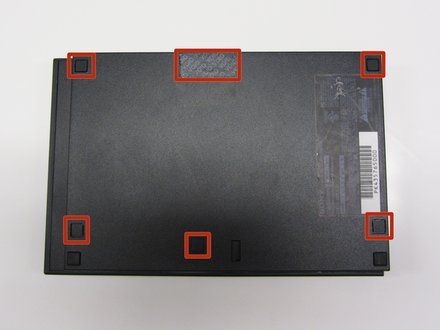

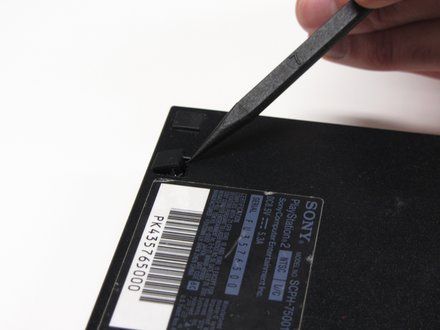

• Locate the 6 feet on the base of the unit. Pry them off using a spudger to reveal the screws.
• NOTE: Note: One of the feet is located under the sticker shown in the photo. Removing this sticker will void any warranty with Sony.

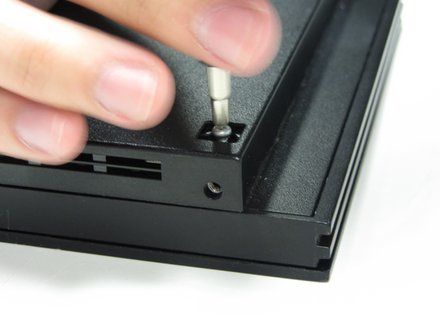

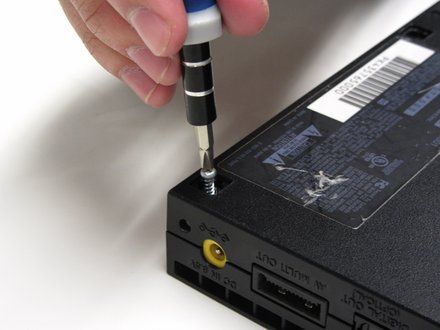

Step 3

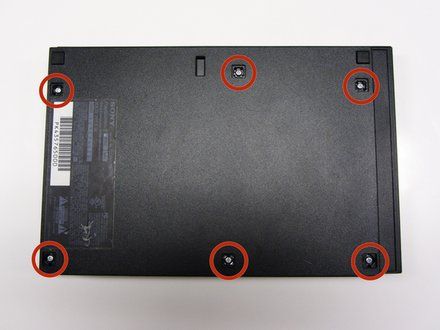

• Remove all six 4.0 mm screws from the base of the unit using a #1 Phillips screwdriver.

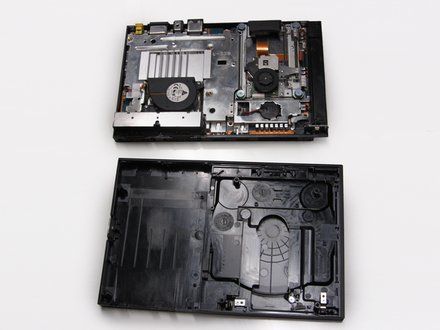

Step 4

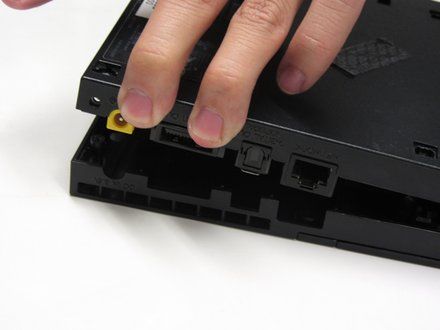

• Starting at the corner at which the power and Ethernet ports are located, pry open the outer shell using a spudger and continue around the entire unit.

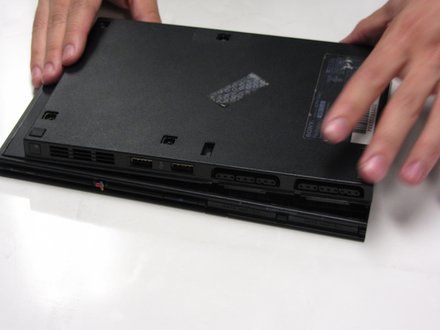

• NOTE: Note: You may use your hands for additional force to separate the two pieces of the outer shell.

Step 5

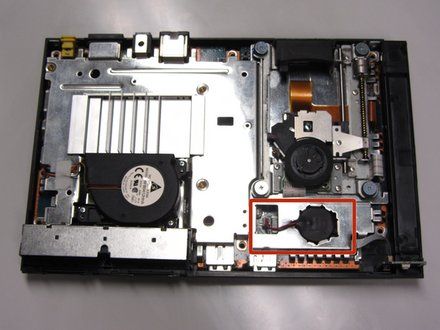

• Locate the clock battery at the front, right section of the unit. The battery has a circular shape with red (+) and black (-) wires connecting to the motherboard.

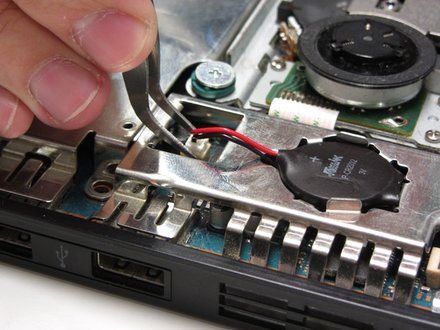

Step 6

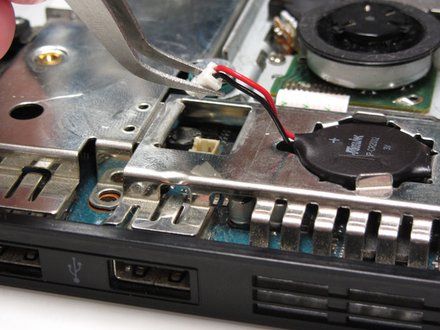

• Lift the connector from the motherboard with a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers) using a firm, upward force.

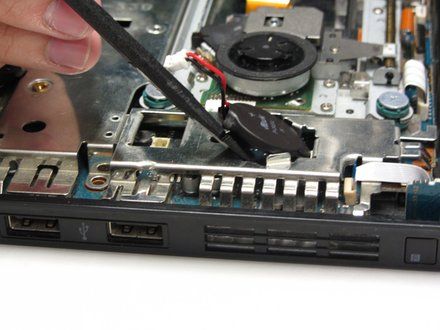

Step 7

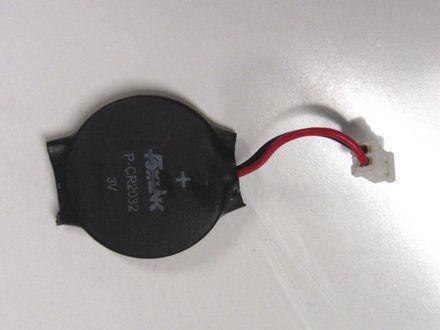

• Gently lift and remove the battery from its compartment using a spudger.

Conclusion

To reassemble your device, follow these instructions in reverse order.
