Power Mac G4 M5183 Processor Replacement

Device	Power Mac G4 M5183
Difficulty	Easy
Time	15 minutes
Steps	4

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

How to remove the processor from the logic board.

Tools: Phillips #1 Screwdriver; Phillips #2 Screwdriver; Spudger

Step 1

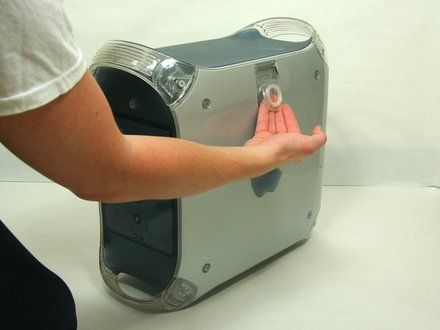

• Pull on outer latch.

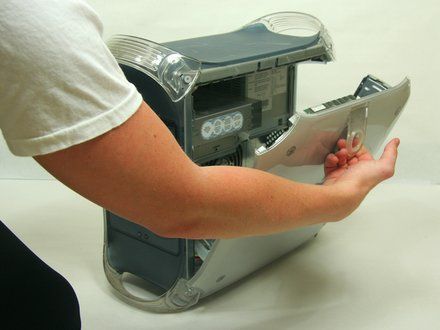

• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

Step 2

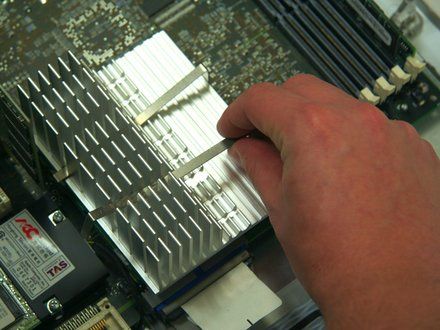

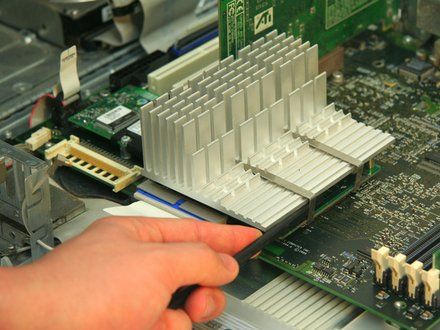

• Use the spudger to pry the clips horizontally off of the heat sink.
• Fully remove the clips by lifting upwards.

Step 3

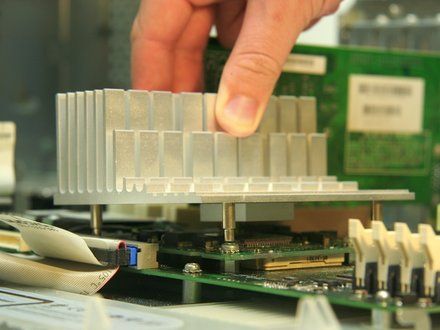

• Remove the heat sink by pulling upwards, off of the logic board.

Step 4

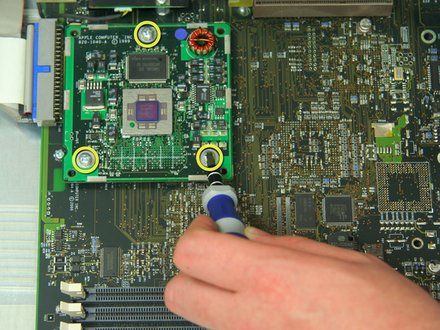

• Remove the 3 screws attaching the processor to the logic board using the Phillips #2 screwdriver.

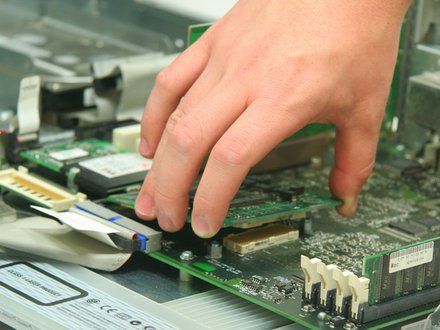

• Remove processor by pulling vertically upwards.
