Power Mac G4 M5183 Heat Sink Replacement

Device	Power Mac G4 M5183
Difficulty	Very easy
Time	5 minutes
Steps	3

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will illustrate how to remove the heat sink from your PowerMac.

Tools: Spudger

Step 1

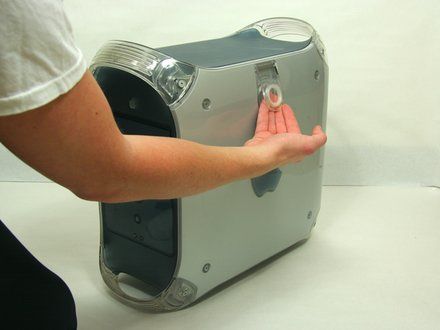

• Pull on outer latch.

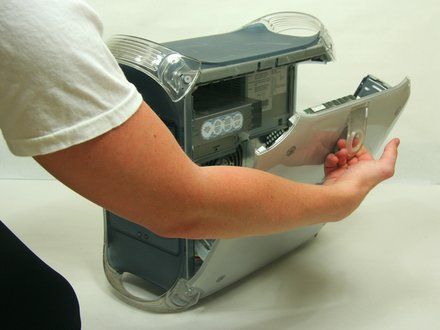

• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

Step 2

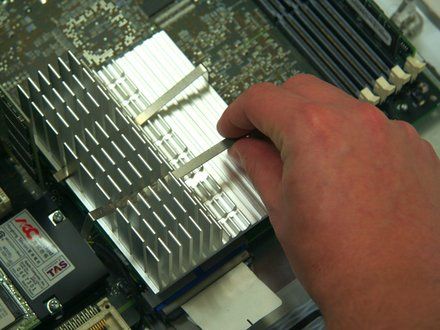

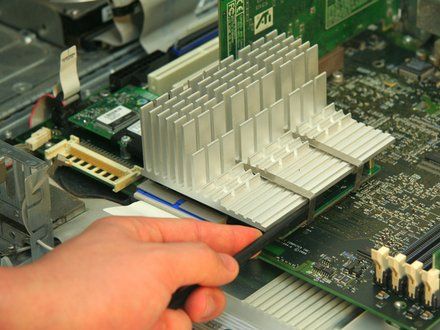

• Use the spudger to pry the clips horizontally off of the heat sink.
• Fully remove the clips by lifting upwards.

Step 3

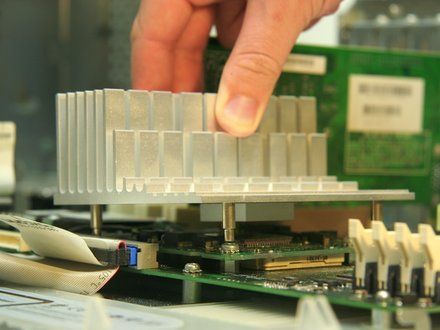

• Remove the heat sink by pulling upwards, off of the logic board.
