Power Mac G4 M5183 Power Supply Replacement

Device	Power Mac G4 M5183
Difficulty	Moderate
Time	25 minutes
Steps	8

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will help you in disassembling the power supply from your PowerMac.

Tools: 2.5mm Hex Screwdriver; Phillips #1 Screwdriver; Phillips #2 Screwdriver; Spudger

Step 1

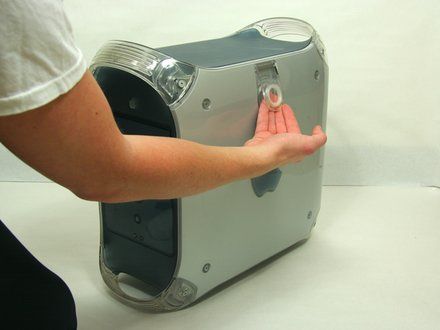

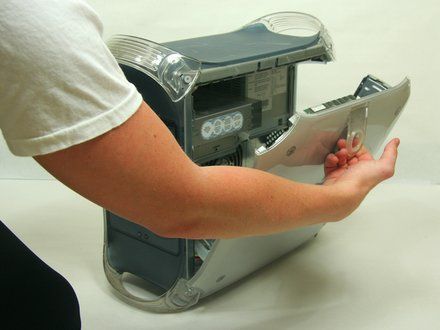

• Pull on outer latch.
• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

Step 2

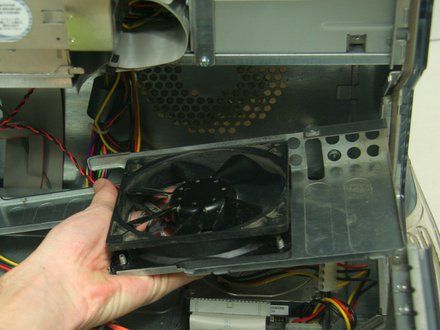

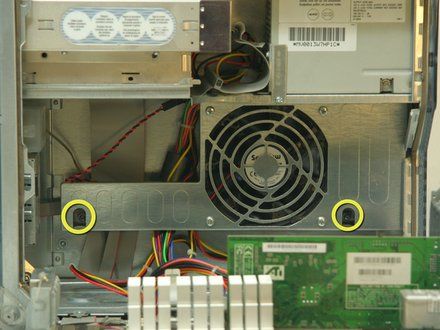

• Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.
• NOTE: The fan housing will still be connected to the computer by a power cable which will be removed in the next step.

Step 3

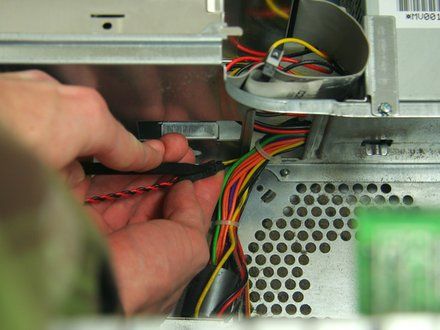

• Remove the power cable from the fan and detach bracing.

Step 4

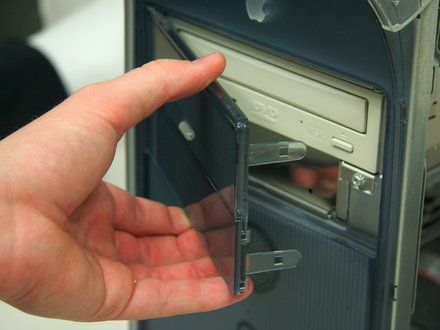

• Removing the faceplate.

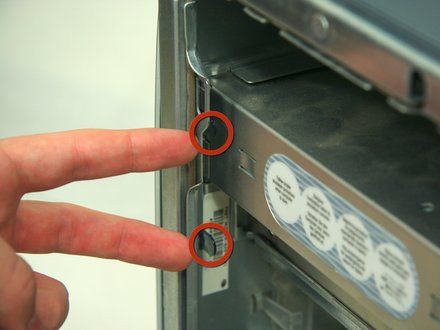

• On the inside of the case, find the two plastic tabs.
• While depressing the tabs, remove the faceplate by pulling and rotating outward.

Step 5

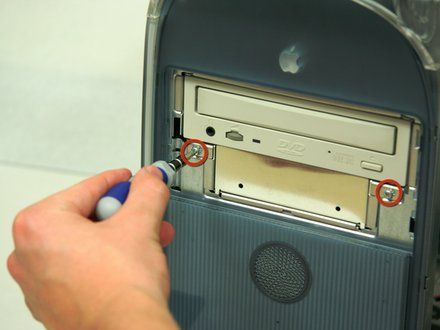

• Remove the two screws on the front of the drive with the Phillips #1 screwdriver.

Step 6

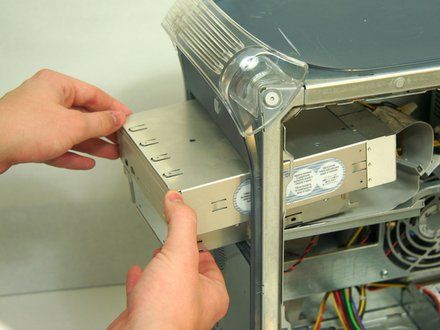

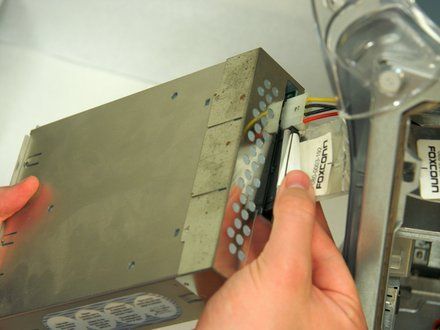

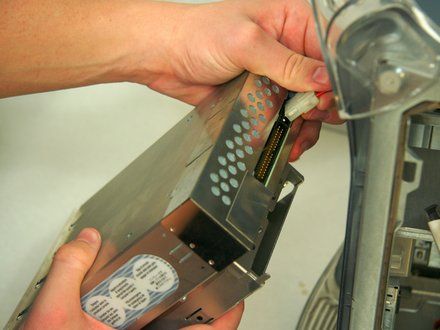

• Pull the drive out to allow access to the power and ribbon cables. Do not fully remove.
• Remove both the power and ribbon cable.

Step 7

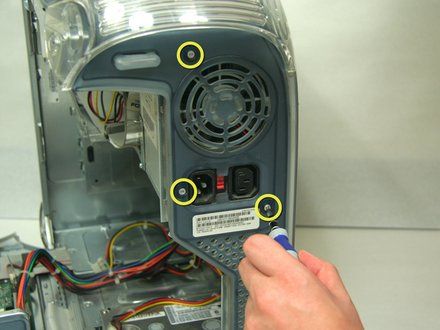

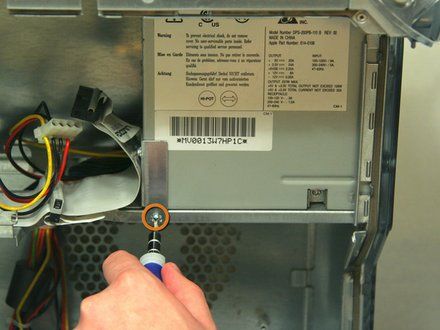

• Remove the 3 hex screws on the back of the case.
• Remove the single screw on the side of the power supply casing with the Phillips #1 screwdriver.

Step 8

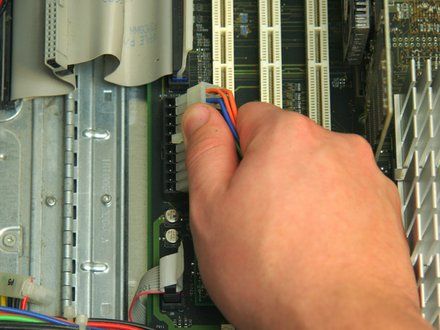

• Remove power cable from the logic board.
• Remove power cable from hard drive.

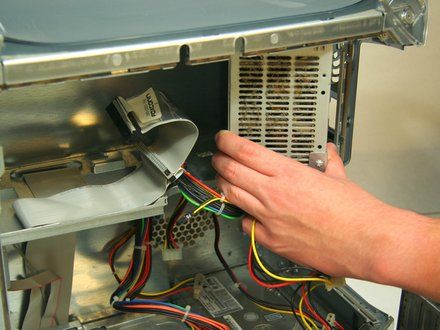

• Pull the power supply out and towards yourself.
