Remove PowerMac G4 M5183 Main Fan

Device	Power Mac G4 M5183
Difficulty	Easy
Time	10 minutes
Steps	3

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Remove the main fan from the case.

Tools: Phillips #1 Screwdriver; Phillips #2 Screwdriver; Spudger

Step 1

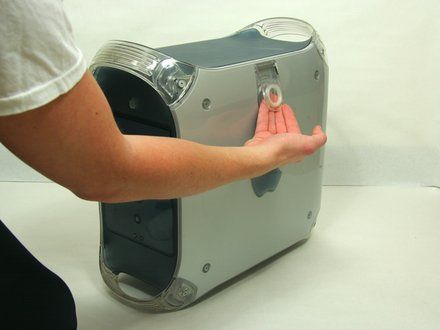

• Pull on outer latch.

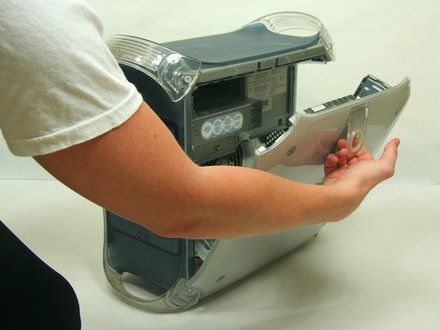

• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

Step 2

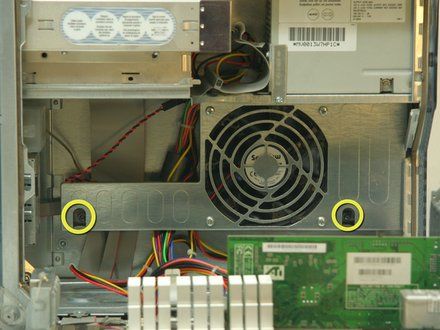

• Remove the screw from each of the two niches on lower part of fan using the Phillips #1 screwdriver.

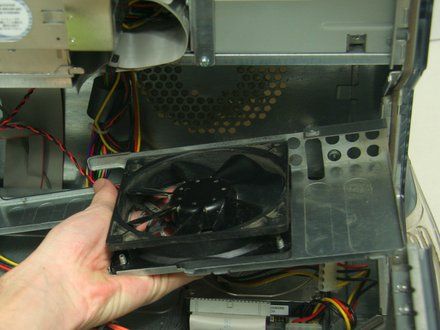

• NOTE: The fan housing will still be connected to the computer by a power cable which will be removed in the next step.

Step 3

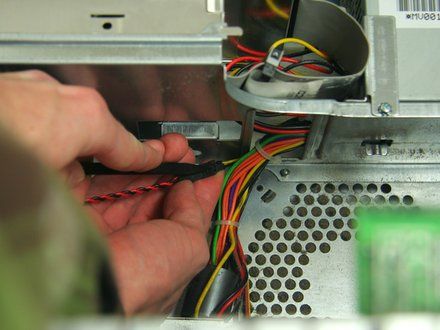

• Remove the power cable from the fan and detach bracing.
