Removing PowerMac G4 M5183 DVD-ROM Drive Tray

Device	Power Mac G4 M5183
Difficulty	Moderate
Time	20 minutes
Steps	4

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Removing and replacing the DVD-ROM drive.

Tools: Phillips #1 Screwdriver; Spudger

Step 1

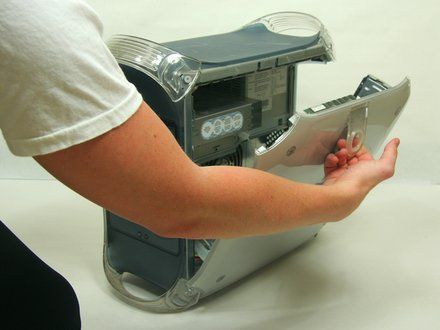

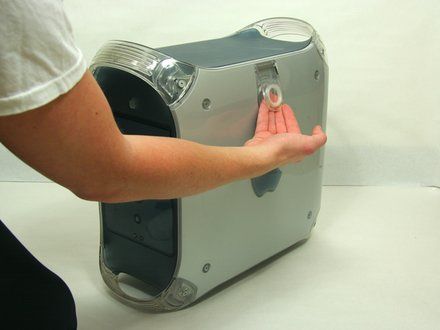

• Pull on outer latch.
• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

Step 2

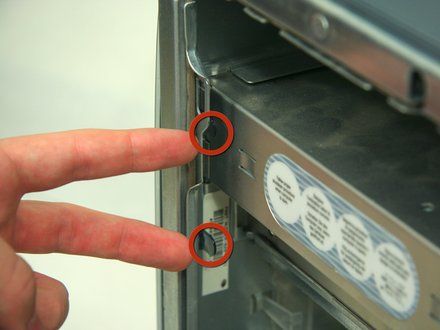

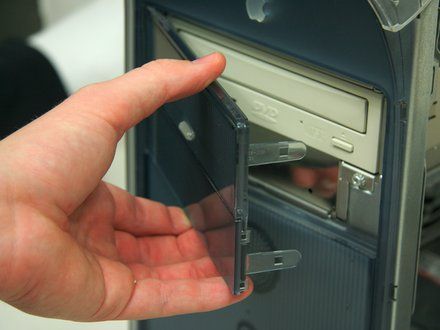

• Removing the faceplate.
• On the inside of the case, find the two plastic tabs.
• While depressing the tabs, remove the faceplate by pulling and rotating outward.

Step 3

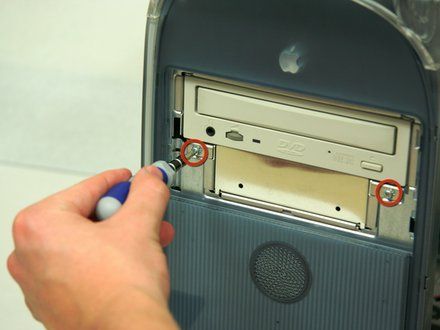

• Remove the two screws on the front of the drive with the Phillips #1 screwdriver.

Step 4

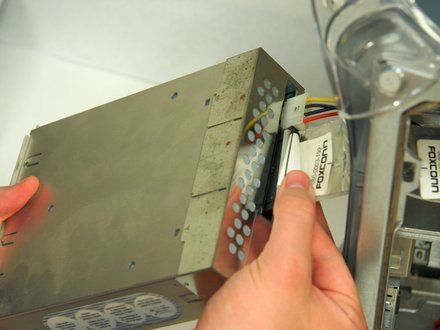

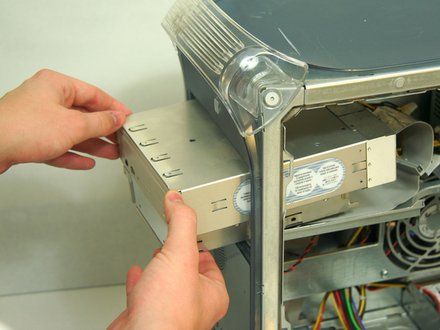

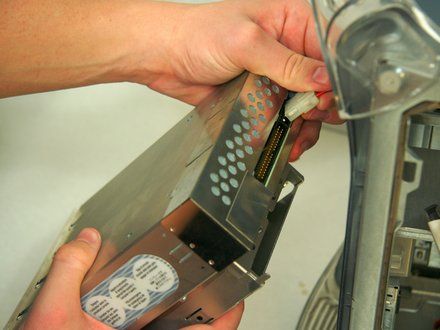

• Pull the drive out to allow access to the power and ribbon cables. Do not fully remove.
• Remove both the power and ribbon cable.
