Power Mac G4 M5183 Internal Battery Replacement

Device	Power Mac G4 M5183
Difficulty	Very easy
Time	10 minutes
Steps	2

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Replacing the internal battery which regulates several functions in the computer, including the calendar.

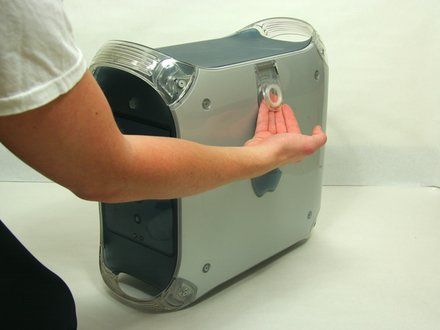

Step 1

• Pull on outer latch.

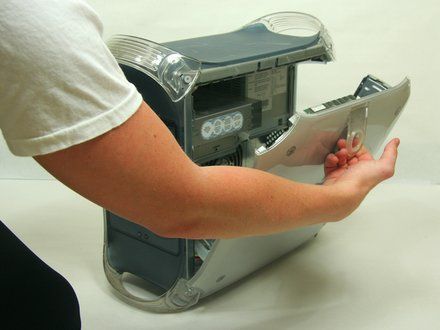

• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

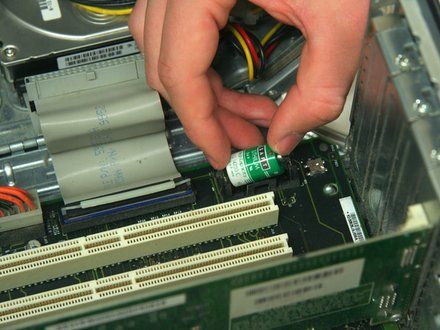

Step 2

• Locate the battery.
• Remove and replace battery.

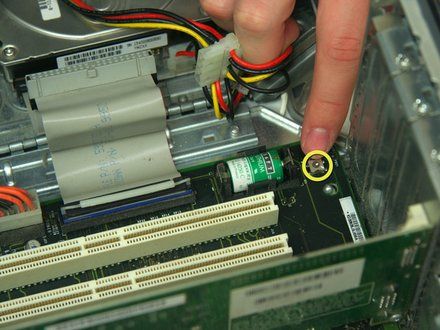

• Push the PMU button once, and only once, to reset the power supply.
