Power Mac G4 M5183 Hard Drive Replacement

Device	Power Mac G4 M5183
Difficulty	Very easy
Time	10 minutes
Steps	5

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Removing the Hard Drive.

Tools: Phillips #1 Screwdriver

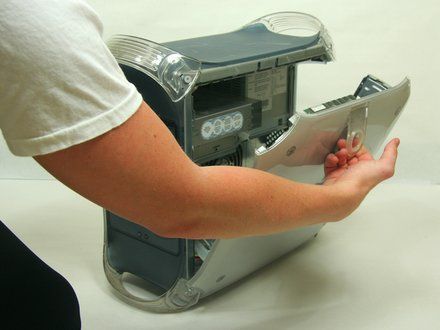

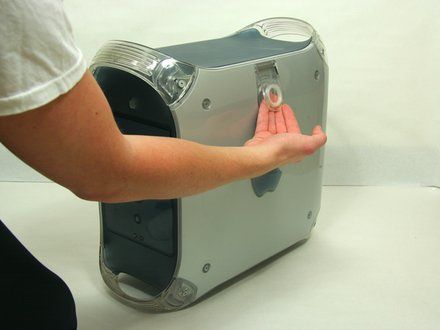

Step 1

• Pull on outer latch.
• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

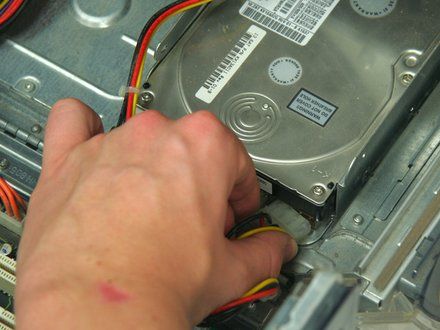

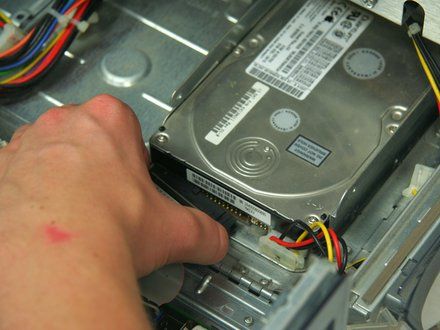

Step 2

• Remove the ribbon cable and power cable from the Hard Drive.

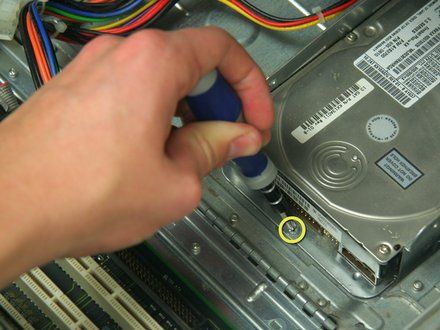

Step 3

• Remove the screw which holds the Hard Drive tray in place.

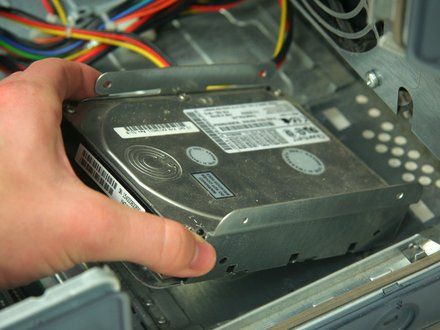

Step 4

• Slide the Hard Drive tray out of the computer.

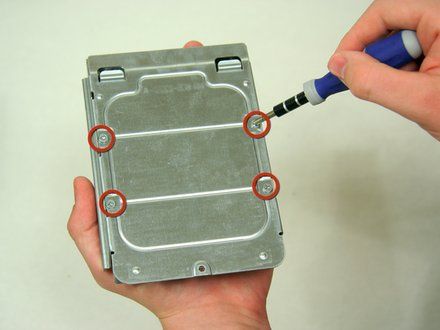

Step 5

• To remove the Hard Drive from the tray, unscrew the 4 screws on the bottom of the tray.
