PowerMac G4 M5183 RAM

Device	Power Mac G4 M5183
Difficulty	Very easy
Time	10 minutes
Steps	2

This guide is by Justin Petrilli on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show you how to remove the RAM Modules.

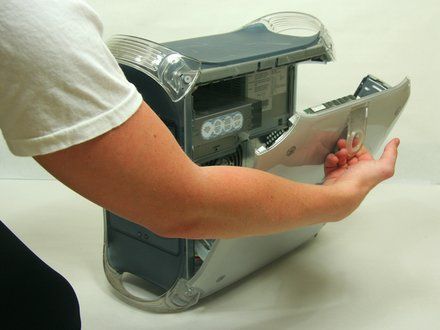

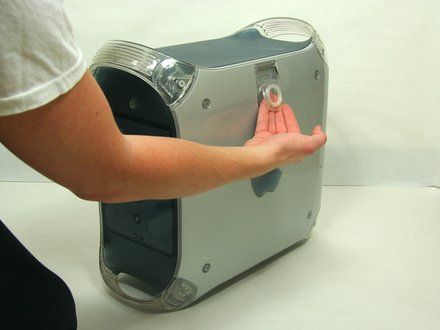

Step 1

• Pull on outer latch.
• Lower door until it is level with your work surface.
• CAUTION: Before working on the computer make sure it is not plugged into a power supply, then touch a metal object. This discharges static electricity, which could damage the computer.

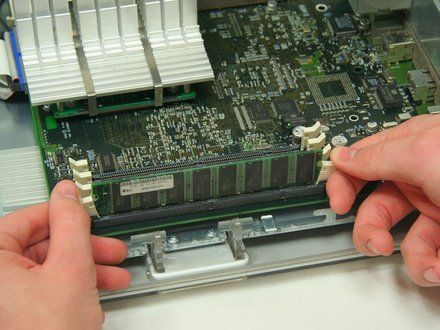

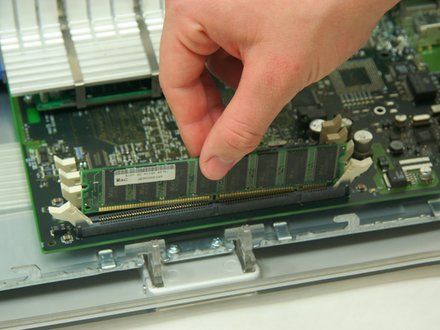

Step 2

• Locate the RAM modules.
• Pull side tabs outward. The RAM will pop out of the housing.
