NINTENDO GAME BOY ADVANCE SP SHELL
REPLACEMENT::
DeviceNintendo Game Boy Advance SP
DifficultyModerate
Time30 - 40 minutes
Steps9
This guide is by Rocko Bishop on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If your GameBoy Advance SP AGS-001 or AGS-101 has a deteriorating shell, or if you're looking to customize it, use this guide to replace the shell.

Before using this guide, plug in your console and charge it for a few minutes. If the battery is too old, it may start expanding and could potentially explode. If it starts to swell, you'll have to order a replacement battery - which you can find below:

https://www.amazon.com/Game-Boy-Advance-... (https://www.amazon.com/Game-Boy-Advance-Replacement-Battery-Pack/dp/B000QJ1NS8?tag=ifixitam-20)

Before beginning the replacement process, power off your console and unplug it from the outlet if it is plugged in.

Tools: Tri-point Y00 Screwdriver Bit; Phillips #00 Screwdriver; Spudger

Parts: Nintendo Game Boy Advance SP Shell

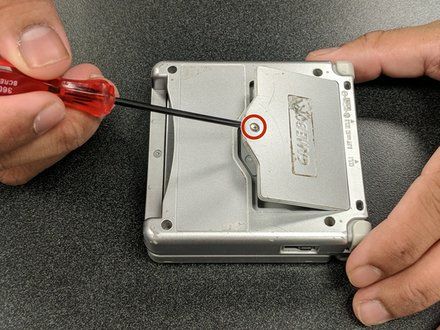

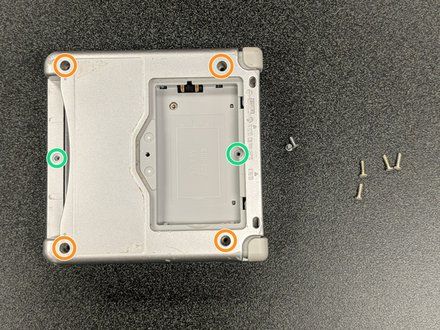

STEP 1::
[step 1 photo] [step 1 photo]
• Unscrew the screw on the battery compartment with a Phillips #00 screwdriver.
• Open the battery compartment and remove the battery.
• Remove the four 6.45 mm Tri-point Y00 screws from the corners of the device.
• Remove the two 4.6 mm Tri-point Y00 screws from inside the battery compartment and game cartridge comparments.

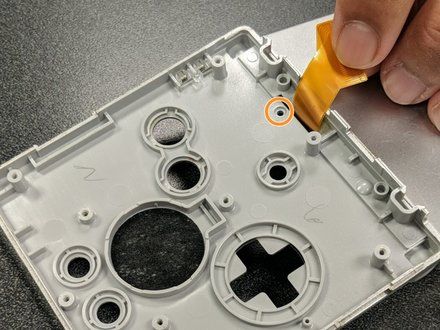

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

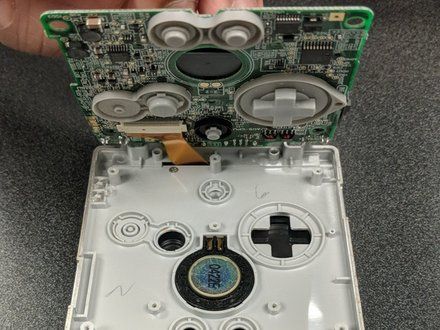

• Lift off the bottom cover to expose the motherboard.
    • NOTE: If you need to, use isopropyl alcohol to clean the power and volume sliders.

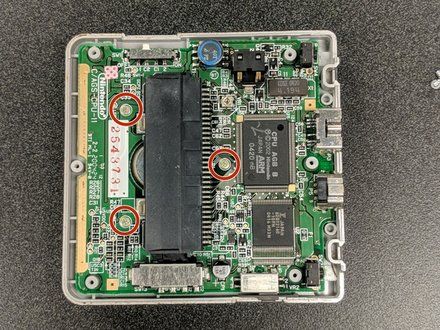

• Remove the three 4mm Phillips #00 screws from the motherboard.
• Gently lift up the motherboard and remove the ribbon cable by gently pulling the two clips on the side up and towards the cable.
• Remove the small Phillips #00 screw hidden underneath the ribbon cable. It holds the hinge cover of the top screen together.

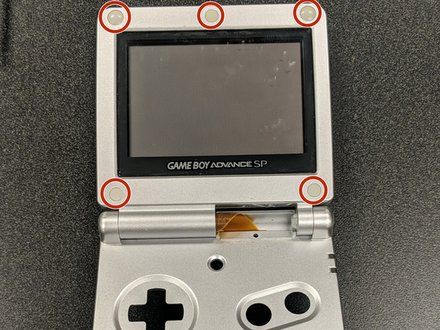

STEP 3::
[step 3 photo] [step 3 photo]

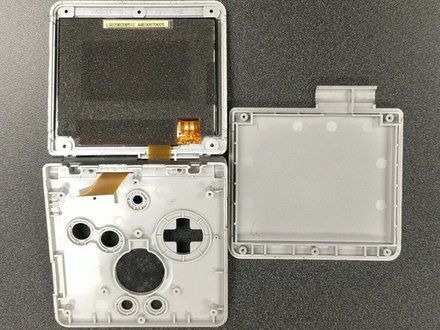

• Open the GBA SP screen and use the pointed end of a spudger to remove the rubber pads around the screen bezel.
• Remove the five Tri-point Y00 screws hidden beneath the rubber pads.
• Remove the bezel from the screen with a spudger.
• CAUTION: Be careful not to pull on the ribbon cable as the bezel comes off.

STEP 4::
[step 4 photo] [step 4 photo]

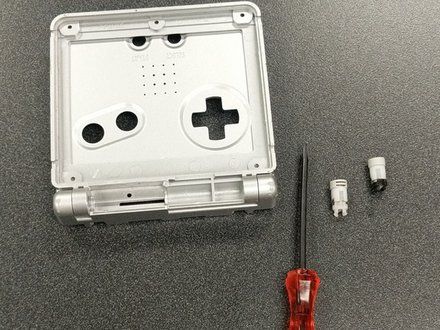

• Remove the hinges from the original shell. This is the most difficult step, as it requires a lot of force to remove the hinges.

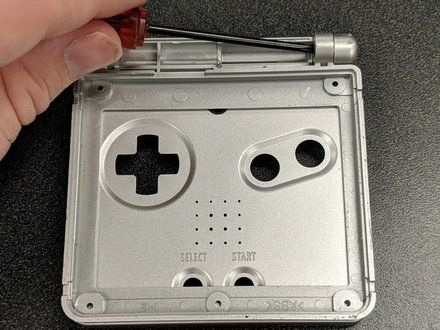

    • Apply pressure with the pointed end of a spudger from the inside, pushing out with plenty of force. The hinges will likely fly out of the shell a few feet; this is normal.
• Once the hinges are removed, remove the caps on the end of each hinge.
• CAUTION: Be careful with the spudger. Pushing out the hinges requires a massive amount of force, and you might injure your hand on accident if you do not take extra caution.

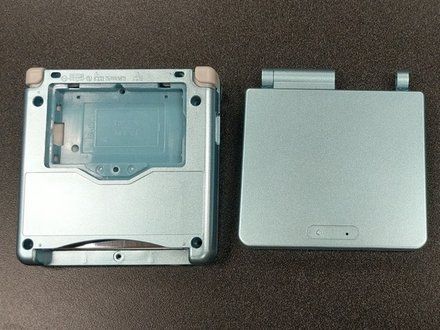

STEP 5::
[step 5 photo] [step 5 photo]
• Take out your replacement shell.

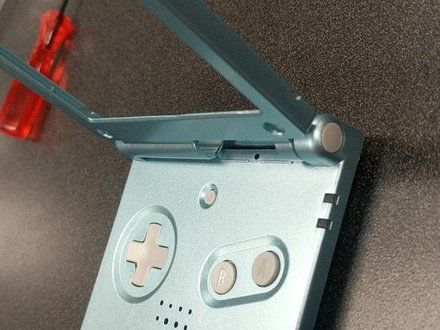

• Push the hinges from the old case into the slot of the new case about halfway while the case is closed.
• Then open the shell and push the hinges the rest of the way in.

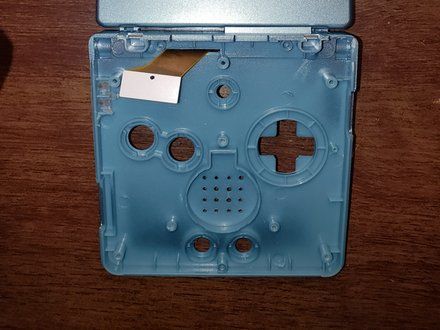

STEP 6::
[step 6 photo] [step 6 photo] [step 6 photo]

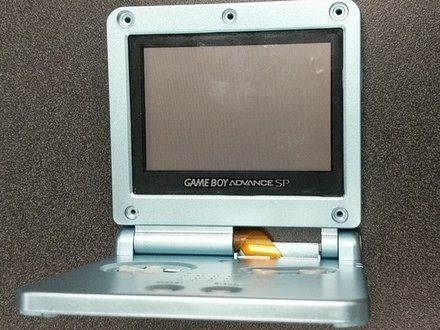

• Place your screen into the new shell and affix the bezel into position; the ribbon cable should slide through the gap like before.
• NOTE: The case should click into place so that it stays together even without screws. There also may be a small gap between the top and bottom case, as this common on third party cases.
• Reinstall the five Tri-point Y00 screws around the screen.

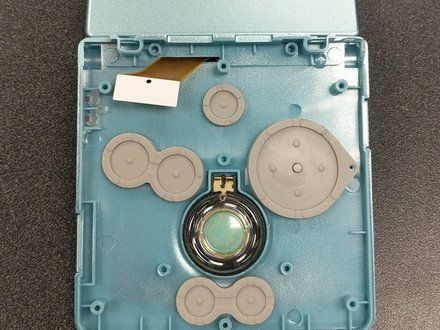

• Reinstall the speaker, buttons, and silicone pads into the bottom case.

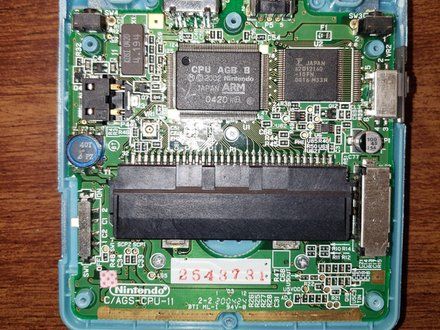

STEP 7::
[step 7 photo] [step 7 photo] [step 7 photo]

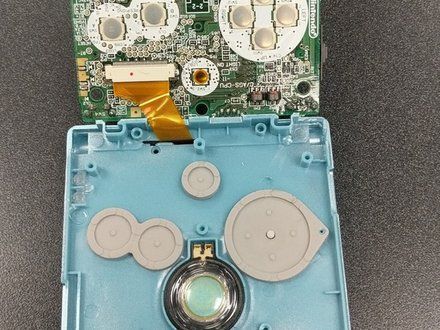

• Reinsert the ribbon cable into the motherboard and lock it into place.
• Guide the motherboard into the new case and screw it down with the three 4mm Phillips #00 screws.

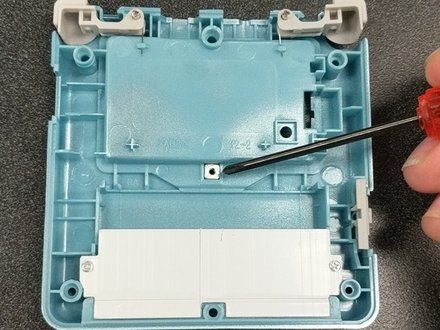

• Install the square, threaded washer on the back of the shell. This is where the battery compartment's screw gets held, so it is important!

STEP 8::
[step 8 photo] [step 8 photo] [step 8 photo]

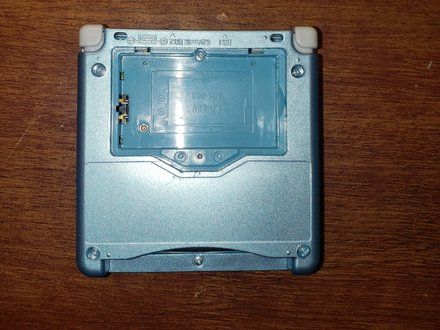

• Make sure the volume and power sliders are in place before putting the back cover on.

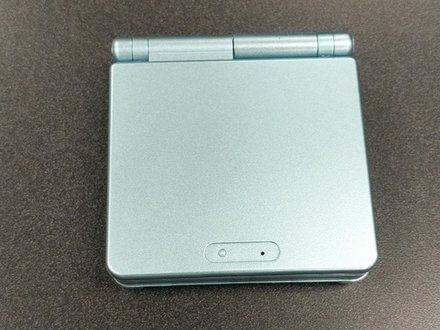

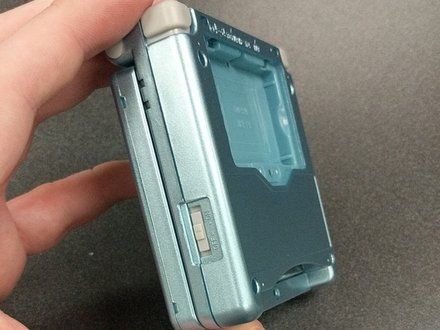

• Put the back cover on and push the two parts together.
• Screw the shell together with the four 6.45 mm Tri-point Y00 and two 4.6 mm Tri-point Y00 screws, then reinstall the battery.

STEP 9::

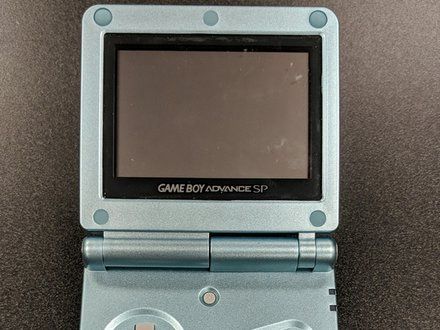

[step 9 photo] [step 9 photo]
• Reinstall the rubber pads around the screen bezel--they stop the shell from rubbing together on the inside.

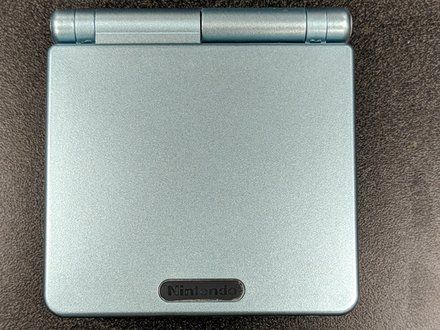

• Find the "Nintendo" logo replacement sticker and put it into place.
• Test the console and make sure it works properly!

CONCLUSION::
Rehousing your GBA SP can be a fun project! It doesn't take very long, and once you're done you'll have a fun new customized console! The ease of difficulty and ability to express yourself both make this project well worth attempting.

CREDIT::
This guide is by Rocko Bishop on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
