HOW TO INSTALL SHOULDER BUTTONS IN YOUR
GAME BOY ADVANCE SP::
DeviceNintendo Game Boy Advance SP
DifficultyModerate
Time5 - 10 minutes
Steps5
This guide is by Spencer Day on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide shows you how to install the shoulder buttons (L + R) in the bottom shell of your Nintendo Game Boy Advance SP.

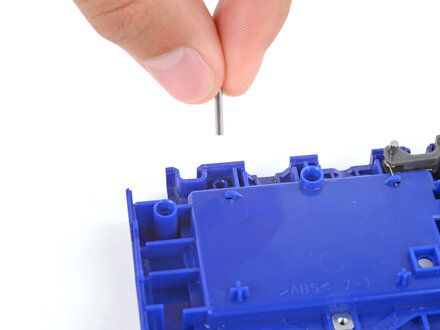

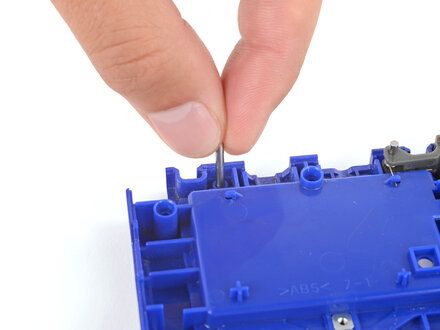

STEP 1 :: INSTALL THE HINGE PIN::
[step 1 photo] [step 1 photo]
• If the hinge pin fell out when removing the shoulder button, put it back into place.

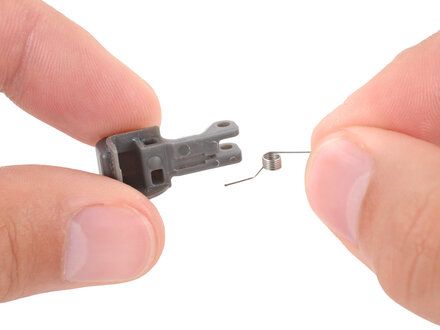

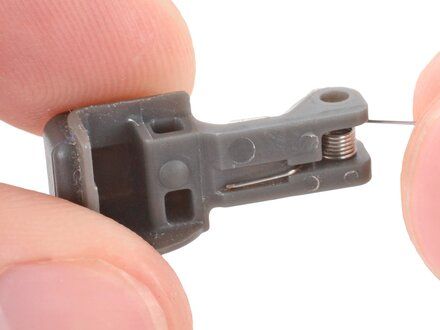

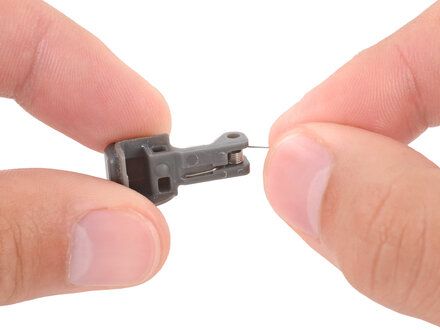

STEP 2 :: INSTALL THE SPRING::
[step 2 photo] [step 2 photo] [step 2 photo]
• NOTE: The two springs are not interchangeable. It should be clear if you're trying to install the wrong spring, as it won't fit correctly in the button.
• Slide the spring into the shoulder button so the bent arm goes into the cutout on the inside edge.

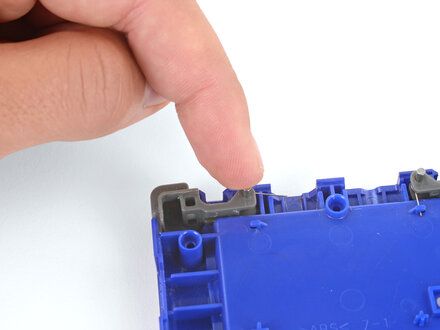

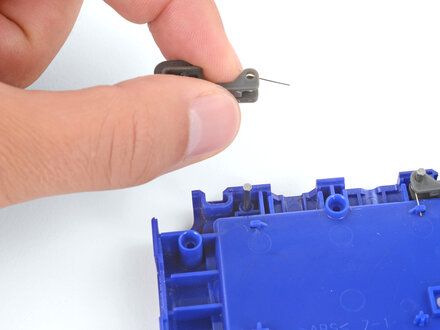

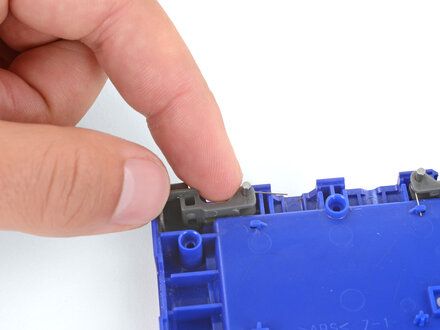

STEP 3 :: PUT THE SHOULDER BUTTON IN
PLACE::
[step 3 photo] [step 3 photo] [step 3 photo]
• NOTE: When installing the button, make sure it's oriented so the spring's straight arm is on top.
• Use your fingers to hold the spring in place and slide the button over the hinge pin and into its recess.

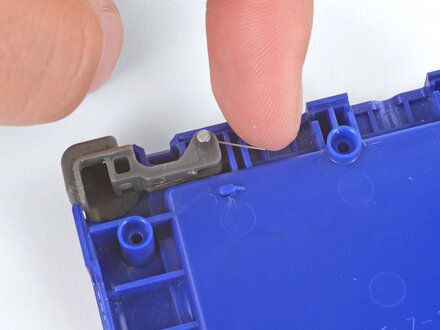

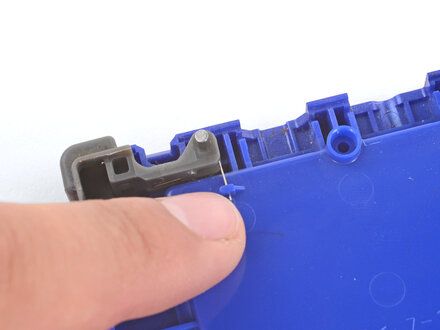

STEP 4 :: PUSH THE SPRING ARM INTO PLACE::
[step 4 photo] [step 4 photo]
• Use your finger, a spudger, or a pair of tweezers to rotate the spring arm into its clip.

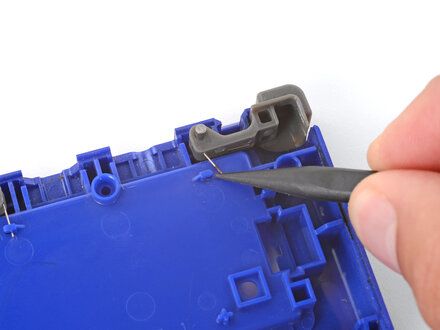

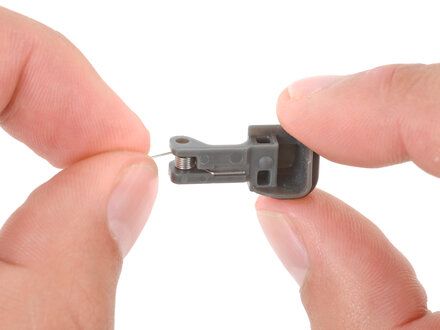

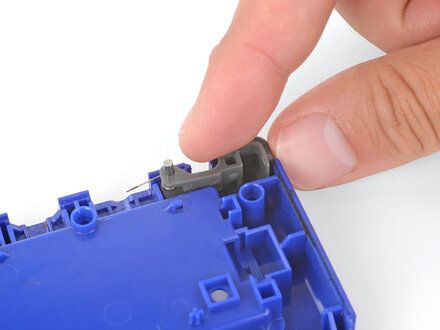

STEP 5 :: INSTALL THE OTHER SHOULDER
BUTTON::
[step 5 photo] [step 5 photo] [step 5 photo]
• Repeat the process to install the other shoulder button.

CONCLUSION::
Return to your original repair guide and continue with reassembly.

CREDIT::
This guide is by Spencer Day on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
