Game Boy Advance On/Off Switch Replacement

Device	Game Boy Advance
Difficulty	Very easy
Time	No estimate
Steps	6

This guide is by Adam on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Use this repair guide when debris needs to be cleared from the On/Off switch or it needs to be replaced.

Tools: Phillips #1 Screwdriver; Tri-point Y0 Screwdriver

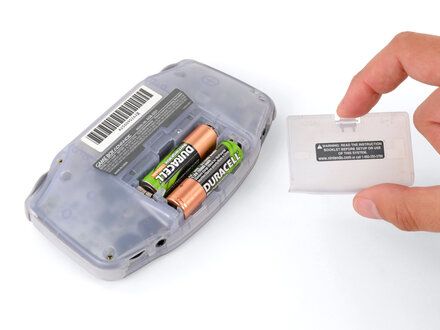

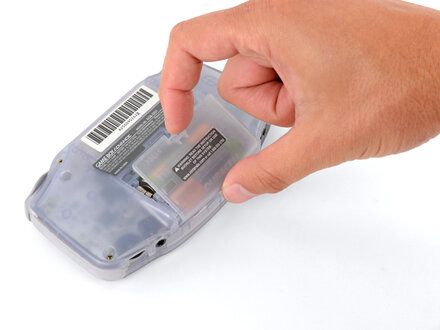

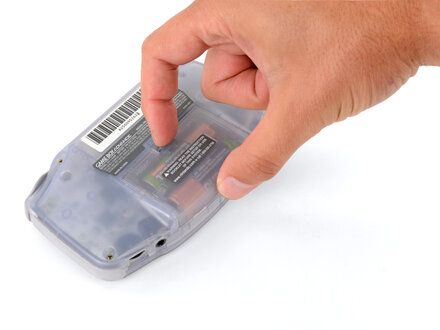

Step 1 :: Remove the battery cover

• Release the battery cover tab with your finger and swing the cover away from your Game Boy to remove it.
• REMINDER: During reassembly, insert the tabs on the bottom edge of the cover into their cutouts and press the cover into place.

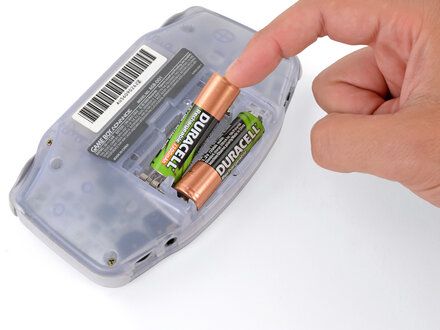

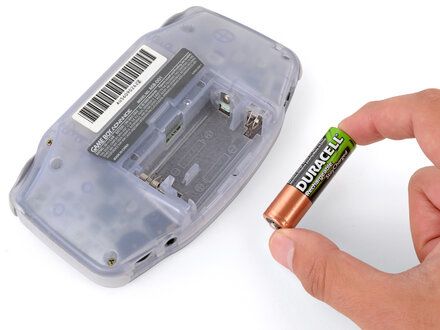

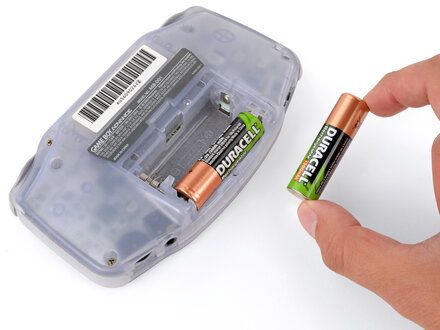

Step 2 :: Remove the batteries

• Remove the two AA batteries.
• NOTE: If the metal terminals are corroded, follow this guide (https://www.ifixit.com/Guide/How+to+Clean+Corroded+Battery+Terminals/164164) to clean them.
• REMINDER: When installing batteries, use the diagram (https://guide-images.cdn.ifixit.com/igi/CuXVhApCfFZ6DpLL.full) in the battery well to properly orient them.

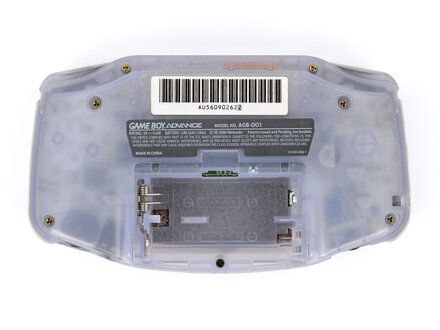

Step 3 :: Remove the back shell screws

• Remove the seven screws securing the back shell:
    • Six 9.4 mm?long tri?point Y0 screws
    • One 8.5 mm?long JIS 1 screw
        • NOTE: You can try to use a non-iFixit Phillips driver in a pinch, but you risk damaging or stripping screws. Push down firmly on the driver and twist slowly.

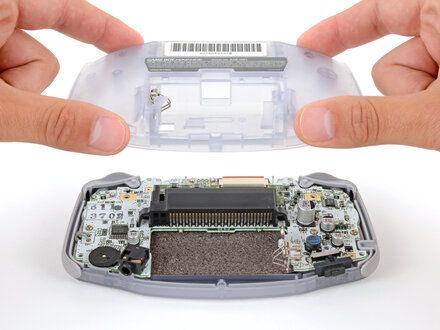

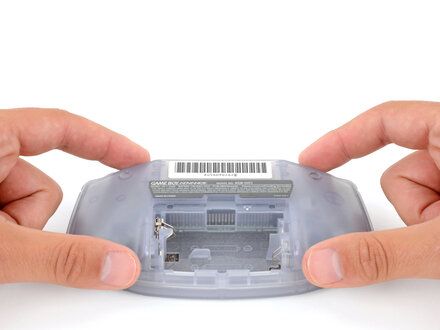

Step 4 :: Remove the back shell

• Lift the back shell straight up and remove it.
• REMINDER: During reassembly, squeeze the shell firmly around the edges and ensure the shoulder buttons and bumpers are properly seated with no large gaps. Gently test the buttons to make sure everything feels correct.

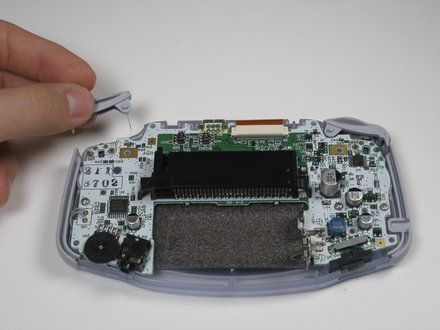

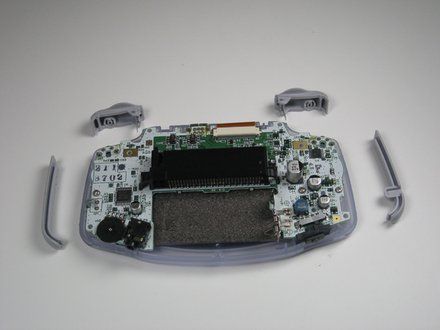

Step 5 :: Remove Triggers

• Remove left and right triggers by lifting and pulling them away from the system.
• Do the same for side panels
• NOTE: For finicky or jammed triggers only! Adjust and correct triggers and reassemble. Most jammed triggers are caused by buttons misplaced or jammed in its enclosure.

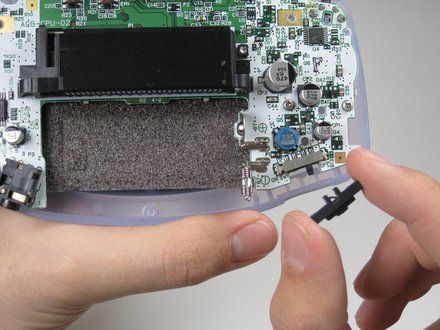

Step 6 :: Remove the On/Off Switch

• Remove the gray On/Off Switch by pulling up and away from the unit. Replace with another switch if necessary.

Conclusion

To reassemble your device, follow these instructions in reverse order.
