PLAYSTATION OPTICAL DRIVE REPLACEMENT
FROM A SCPH-7501 OR SCPH-9001::
DevicePlayStation
DifficultyModerate
TimeNo estimate
Steps10
This guide is by Unchi on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: Pro Tech Toolkit


STEP 1::
[step 1 photo]

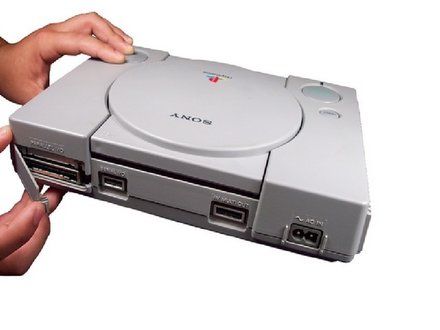

• Remove the parallel port cover on the back of the PlayStation

STEP 2::
[step 2 photo]

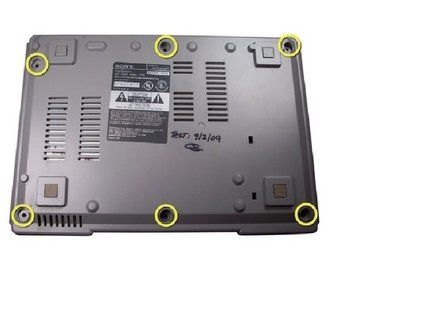

• Flip over the PlayStation and remove the six screws from the bottom.

STEP 3::

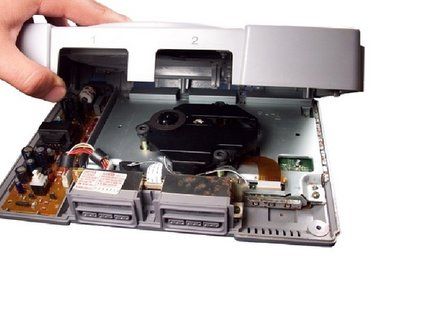

[step 3 photo]
• Turn the PlayStation upright. Remove the cover by lifting it up.

STEP 4::

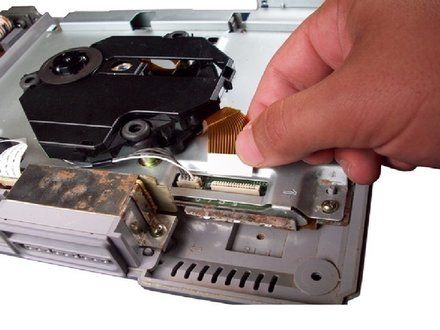

[step 4 photo]
• Carefully disconnect the gold-colored ribbon cable from it's connector.
• To avoid damaging the cable, pull it by the white, reinforced tab.

STEP 5::

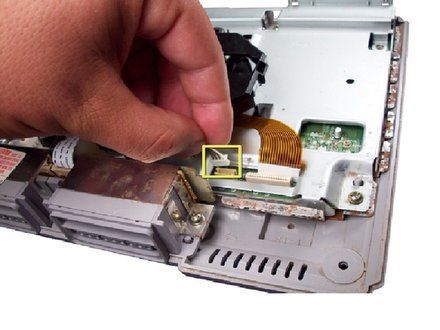

[step 5 photo]
• Disconnect the second cable by pulling up on the plastic connector at the end.

STEP 6::

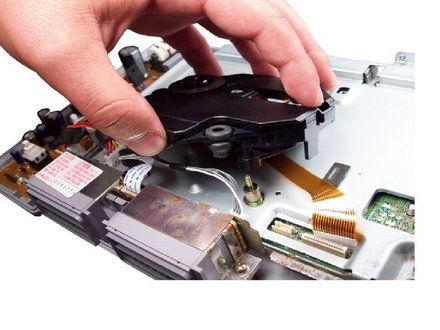

[step 6 photo]
• Lift the optical drive off of the PlayStation.

STEP 7::

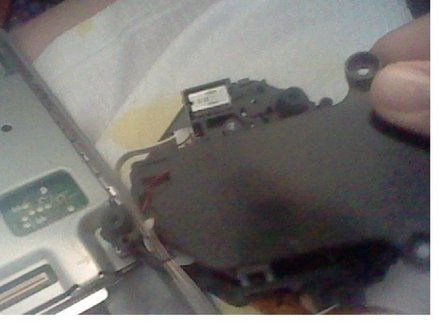

[step 7 photo]
• Remove the two screws and take off the bottom piece for your new Optical drive from the old one.

STEP 8::

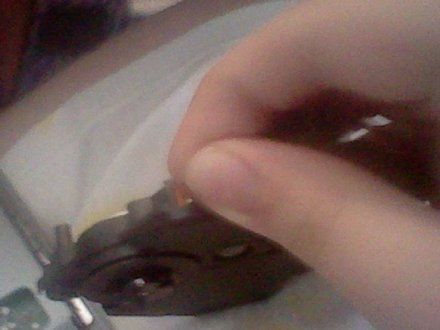

[step 8 photo]
• Take the new lens either from a SCPH-7501 or SCPH-9001.
• To avoid damaging the cable, Gently lift on this gold-colored cable that has a pot screw on it and lift it, but not too much.

STEP 9::

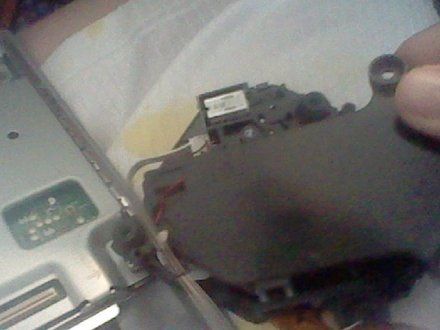

[step 9 photo]
• Take the bottom piece and screw the two screws on the new Optical Drive.

STEP 10::

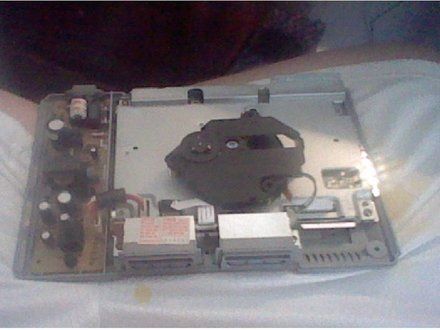

[step 10 photo]
• Plug the cables back in. Your work should look like this. Put it back together, plug it in, turn it on and see if it works.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Unchi on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
