Game Boy Micro Buttons Replacement

Device	Game Boy Micro
Difficulty	Moderate
Time	30 minutes
Steps	16

This guide is by Jack on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Use the following guide to replace buttons in the device.

Tools: Phillips #00 Screwdriver; Tri-point Y0 Screwdriver; Tweezers

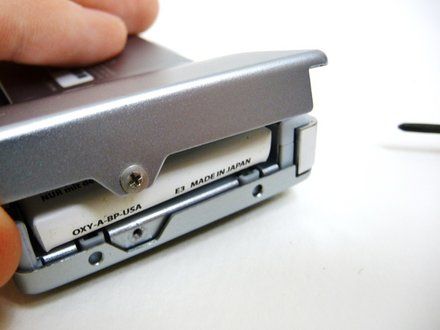

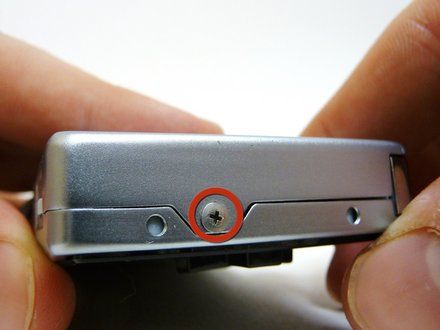

Step 1 :: Remove the Cover

• Remove the Phillips #00 screw on the side of the Game Boy closest to the directional pad.
• Once the screw has been loosened, lift the cover off the back of the device.

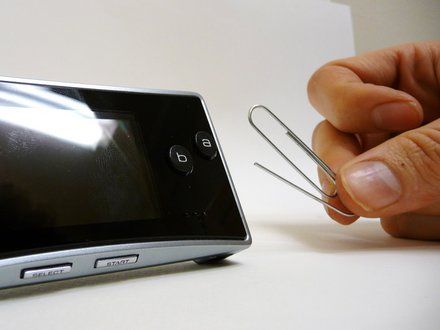

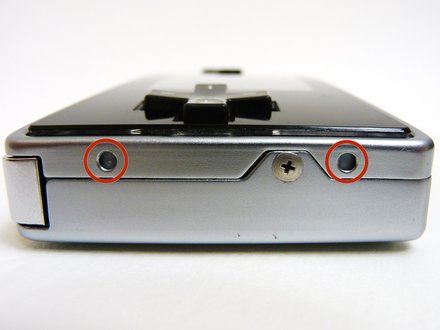

Step 2

• Locate the two circular holes on the side of the Game Boy nearest to the directional pad.

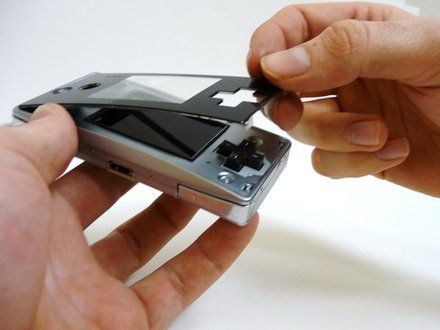

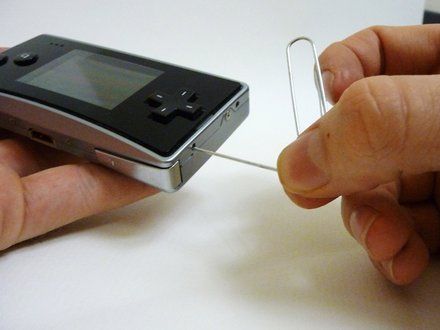

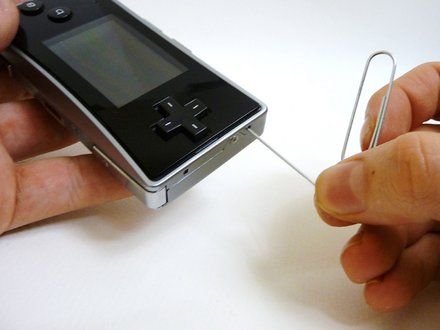

Step 3

• Straighten the end of a paper clip and push it into each of the circular holes.
• NOTE: You may hear a faint click afterwards.
• Use the paper clip to lever the faceplate off from the unit.

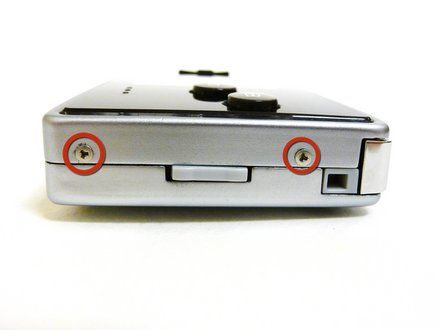

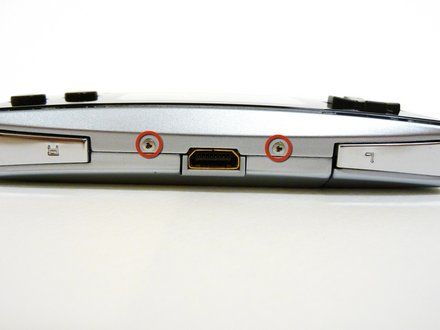

Step 4 :: Unscrew the Outer Cover

• Remove the two tri-wing screws on the top of the Game Boy and the two screws next to the volume/contrast switch.

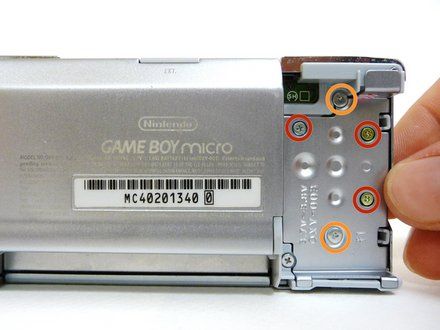

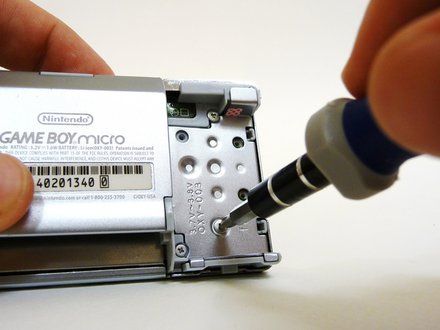

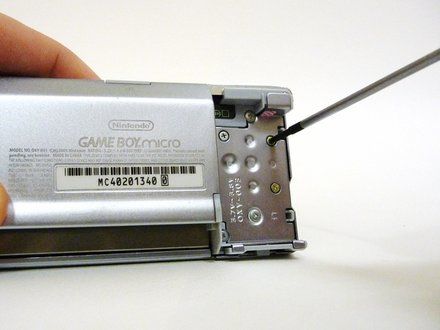

Step 5

• Remove the three Phillips #00 screws.
• Remove the two tri-wing screws.

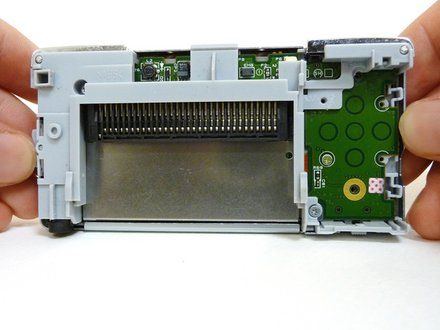

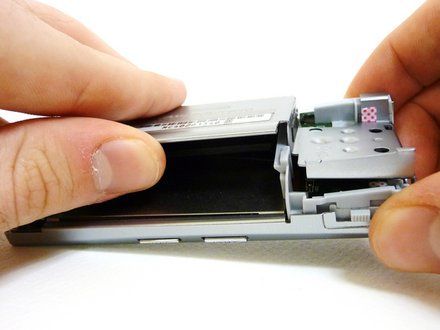

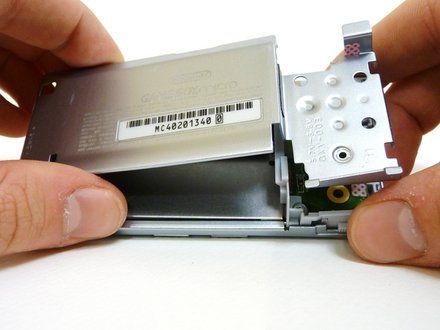

Step 6

• Lift the back cover off of the Game Boy.

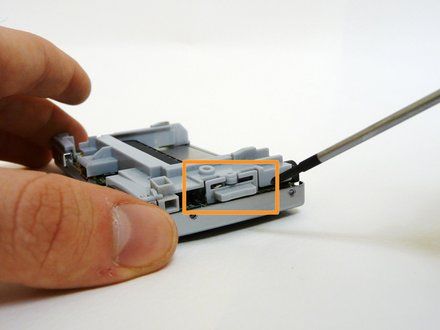

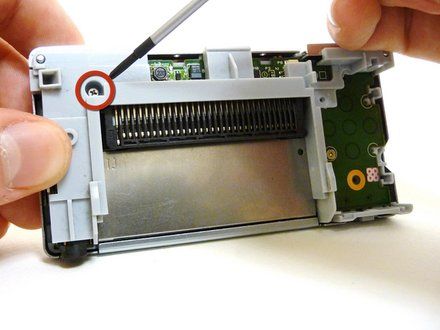

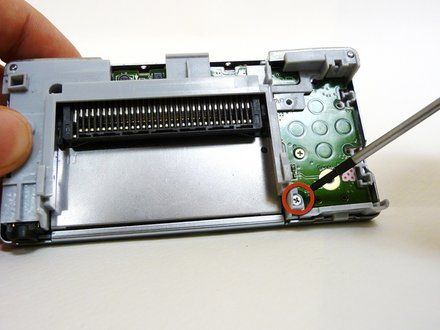

Step 7

• Remove the two Phillips #00 screws from the plastic frame.
• As you are pulling off the plastic frame, the shoulder buttons and the volume switch may fall out of the device.
• NOTE: Underneath each shoulder button is a small spring. Do not lose them.

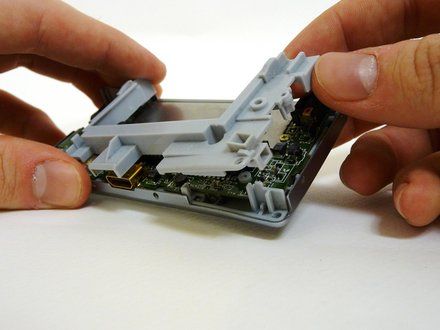

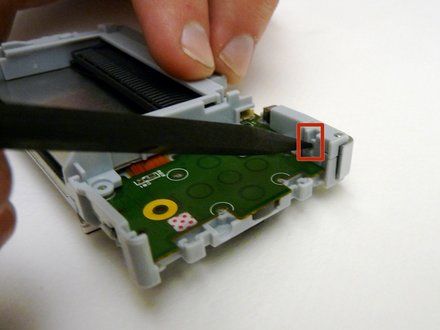

Step 8

• With a spudger, depress the small clip on the lower right corner of the plastic guard.
• Grab the edges of the plastic frame and lift the frame off the motherboard.

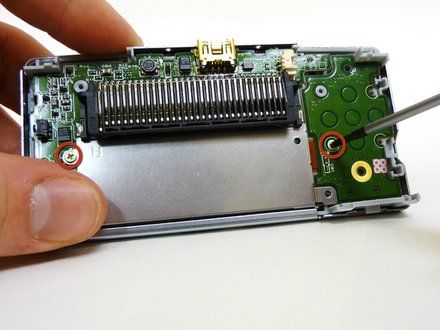

Step 9

• Remove the two gold Phillips #00 screws from the motherboard.

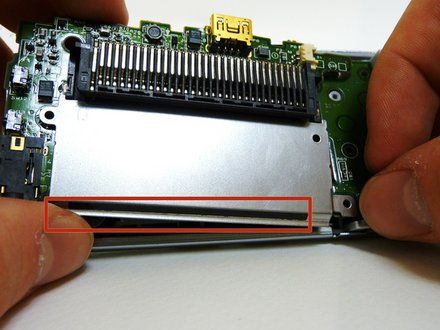

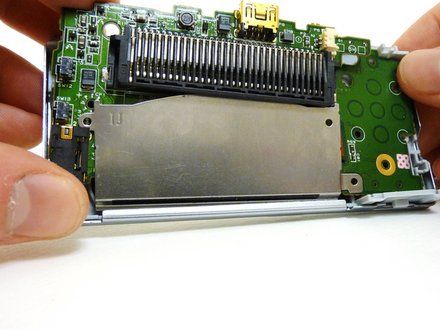

Step 10

• With one hand, gently slide the top left end of the motherboard up and out of the front case.
• With your other hand, pull out the EMI shield until the tab comes out of the front case.
• Once the tab is pulled out from the bottom, slide the EMI shield down and out of the device.

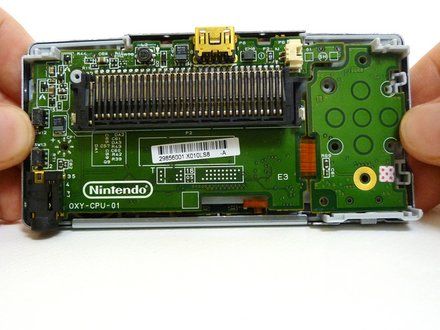

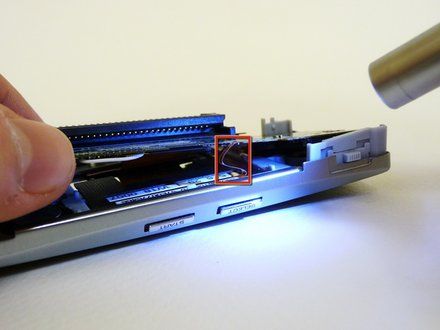

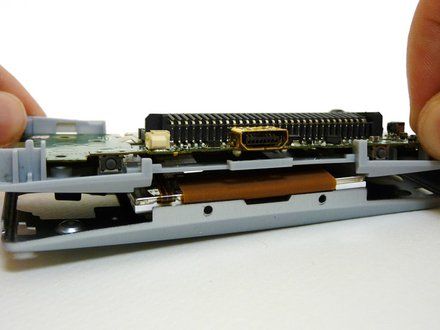

Step 11

• The entire motherboard is now accessible.
• CAUTION: Take extreme care when working with the motherboard to avoid damaging the device and its components.
• A small ribbon cable connects the start and select buttons to the motherboard. It can rip very easily, so do not pull on it.
• Lift the motherboard and the front plastic cover assembly off of the front case.
• NOTE: Once the front case is removed, the plastic on/off switch will fall out of place.

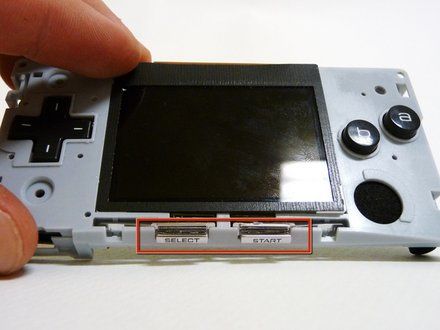

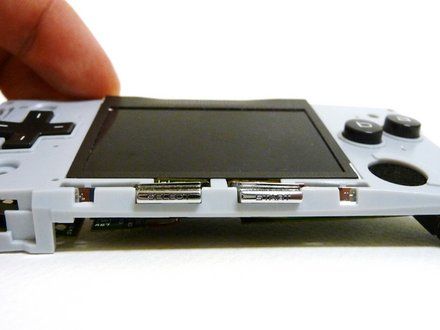

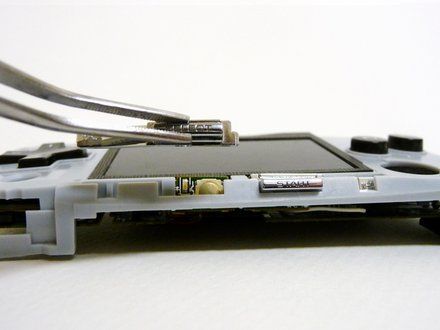

Step 12

• When you remove the motherboard from the front case, the start and select buttons may fall out.
• If the buttons do not fall out, remove them with a pair of tweezers (https://www.ifixit.com/en-ca/products/tweezers).

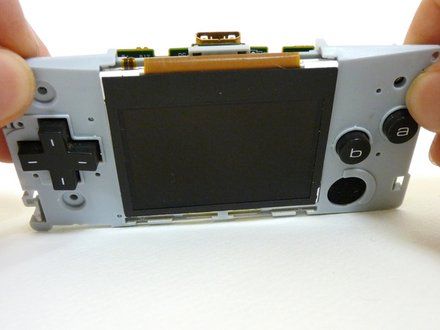

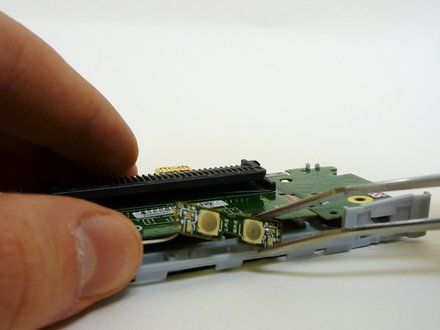

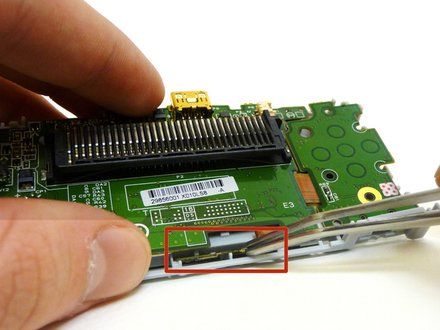

Step 13

• Without the front case, you will be left with the motherboard and the plastic mount. The LCD screen is attached to the motherboard by a ribbon and can fall off the plastic mount.
• Using metal tweezers, grab the start/select board and slide it out gently.

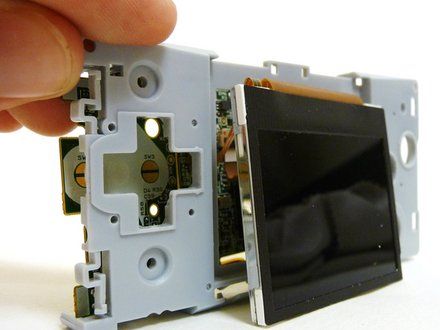

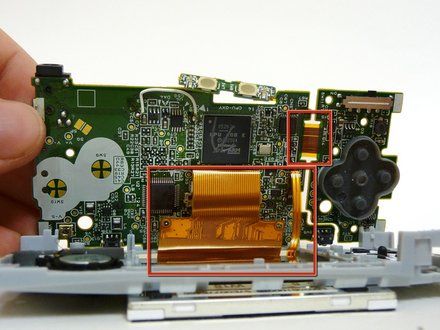

Step 14

• Lift the entire motherboard assembly off the plastic guard.
• Take caution not to damage any of the gold ribbon cables on the motherboard.
• NOTE: The LCD screen is the only thing connecting the motherboard and plastic guard.

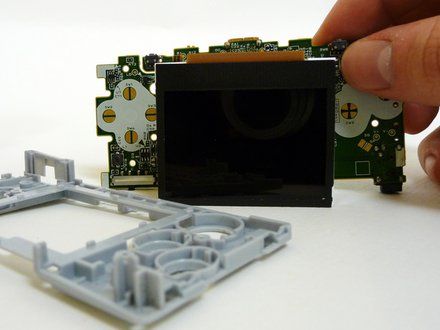

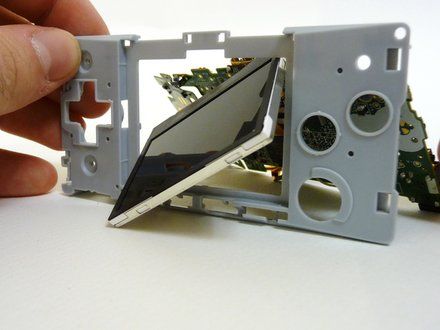

Step 15

• To remove the LCD screen, carefully angle it until it is diagonal to the square hole in the plastic guard and slide it out.
• It is now possible to remove the entire motherboard assembly from the plastic guard.

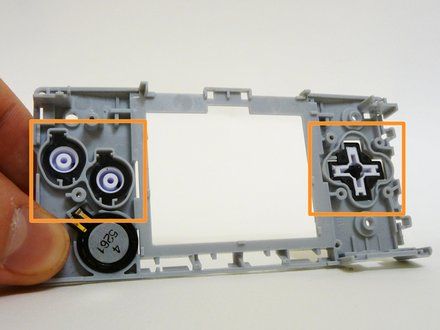

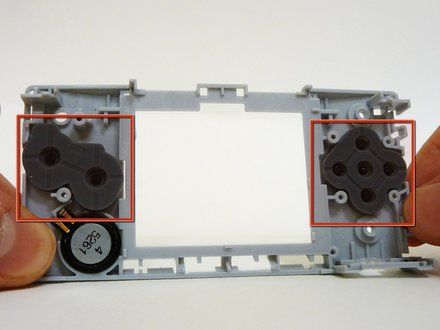

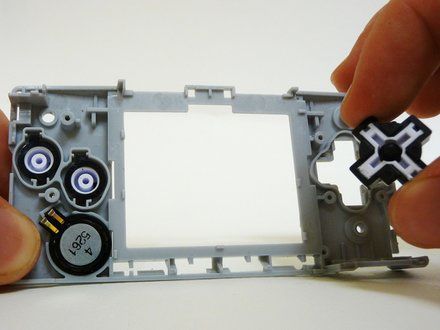

Step 16

• On the plastic guard, there are two rubber pads that cover the buttons. Remove them.
• NOTE: These pads rest on the motherboard and sometimes stick to it. If they do, peel them off.
• With the rubber pads off, you may use your fingers to remove the buttons to clean or replace them.
• REMINDER: When returning the buttons to the guard, they have to be put back in exactly the way they were pulled out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
