Xbox Duke Controller Face Plate Replacement

Device	Xbox Duke Controller
Difficulty	Easy
Time	5 minutes
Steps	2

This guide is by Anthony Casino on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

To remove the faceplate of your Xbox Duke controller and access the internal hardware, follow this guide. This guide is a prerequisite to all other Xbox Duke repair guides that require accessing internal components like the buttons, the potentiometers, motherboard, etc.

Tools: Phillips #1 Screwdriver

Step 1

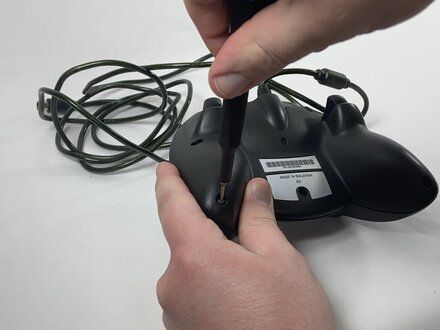

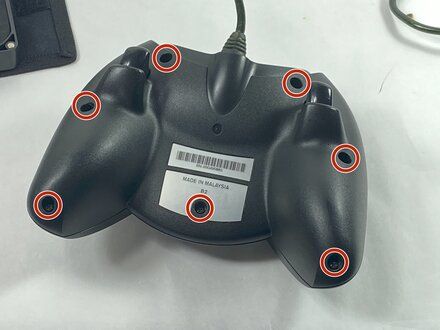

• Remove the seven black 8 mm screws holding the two halves of the Duke together using a Phillips #1 screwdriver.

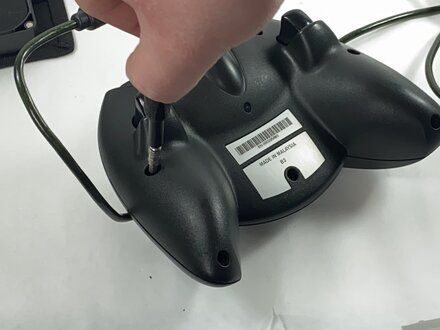

• NOTE: To reach the deeply set screws, use a longer screw driver or a 4.0 socket bit in addition to the PH1 bit.

Step 2

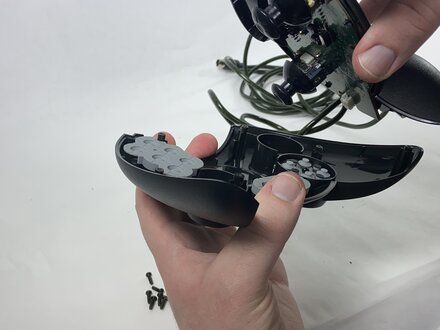

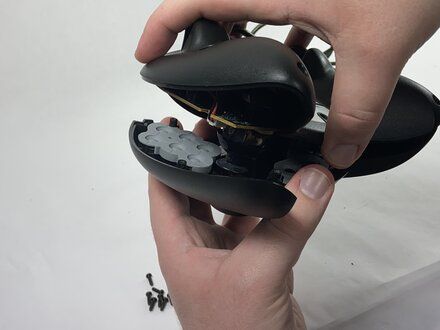

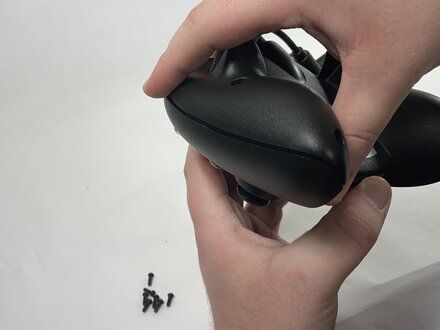

• Remove the two halves of the Duke, placing the top plate face-down so the buttons don't fall out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
