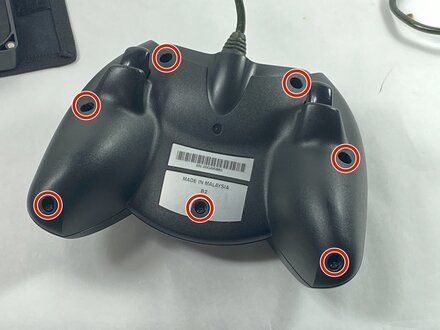

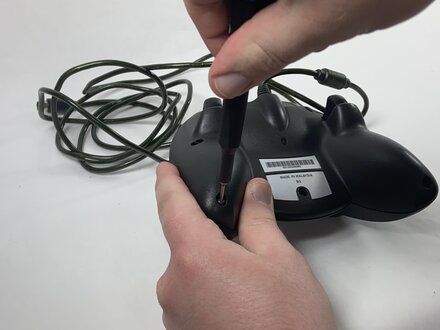

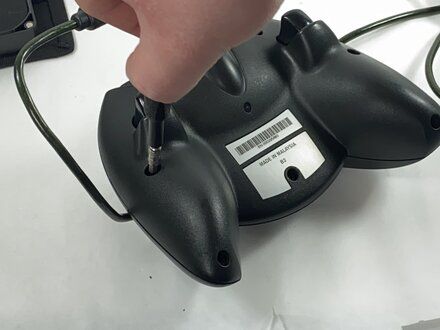

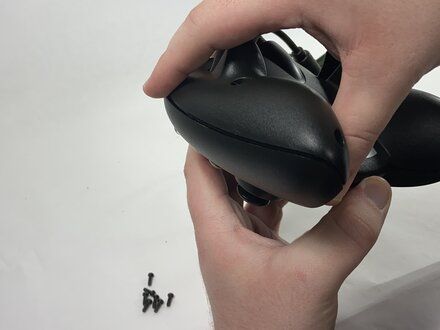

![[step 1 photo]](184359/step01-3.jpg) Remove the seven black 8 mm screws holding the two halves of the Duke together using a Phillips #1 screwdriver. NOTE: To reach the deeply set screws, use a longer screw driver or a 4.0 socket bit in addition to the PH1 bit.
|
|
|
|  |  |  |
|  |

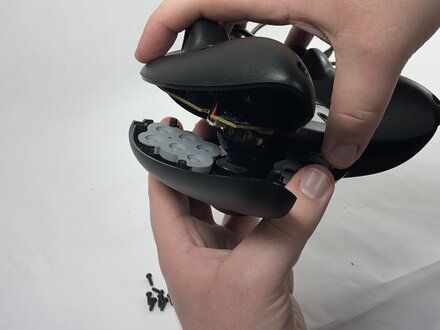

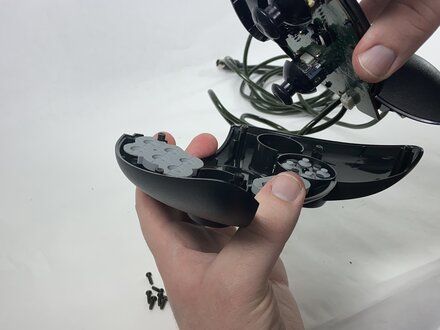

![[step 2 photo]](184359/step02-3.jpg) Remove the two halves of the Duke, placing the top plate face-down so the buttons don't fall out.
|
|
|
|  |  |  |
|  |

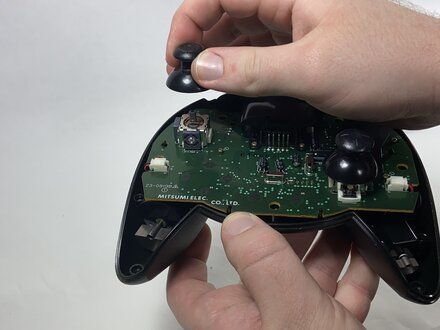

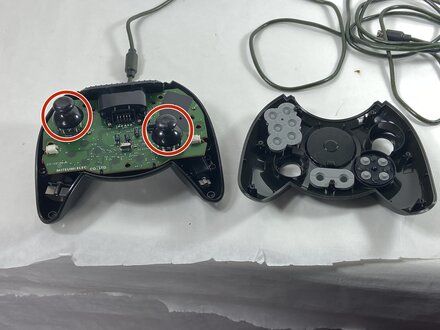

![[step 3 photo]](184359/step03-2.jpg) Remove the stick caps from the potentiometers.
|
|
|
|  |  |  |
|  |

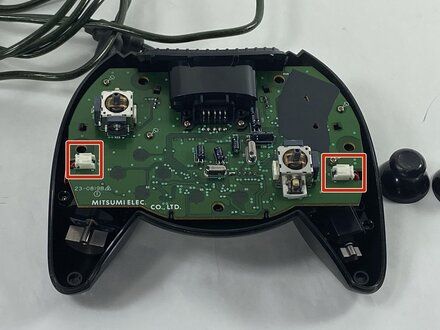

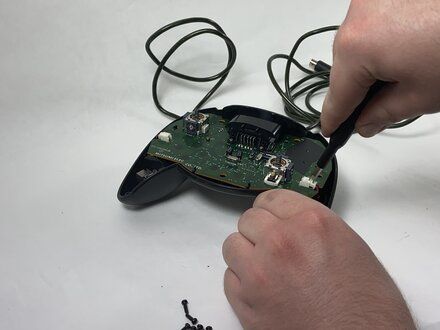

![[step 4 photo]](184359/step04-2.jpg) Disconnect the connectors attaching the rumble motors to the motherboard using a pair of tweezers. CAUTION: Be gentle when slipping the tweezers underneath the flaps of the connectors; they are fragile and can snap.
|
|
|
|  |  |  |
|  |

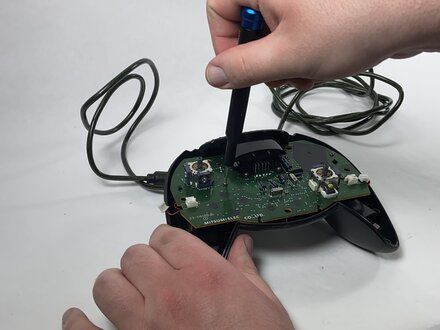

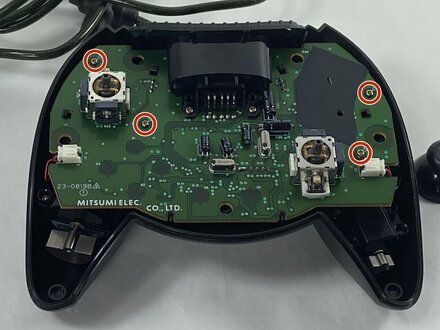

![[step 5 photo]](184359/step05-2.jpg) Using a Phillips #1 screwdriver, remove the four yellow 8 mm screws holding the motherboard to the bottom half of the controller.
|
|
|
|  |  |  |
|  |

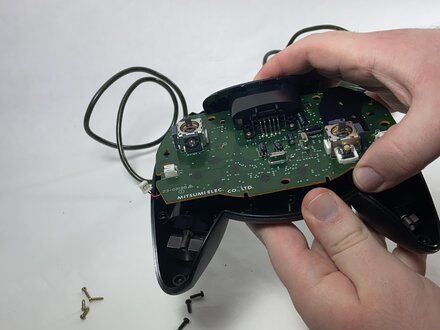

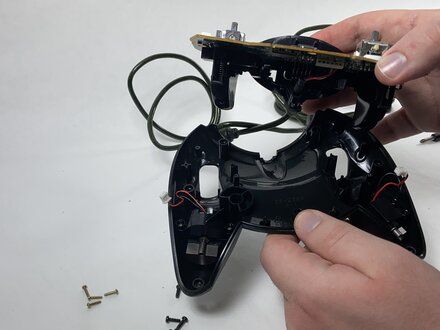

![[step 6 photo]](184359/step06-2.jpg) Remove the motherboard from the bottom half of the controller.
|
|
|
|  |  |  |
|  |

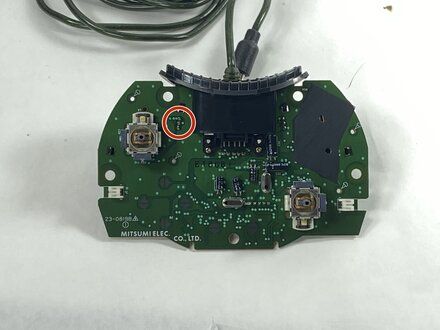

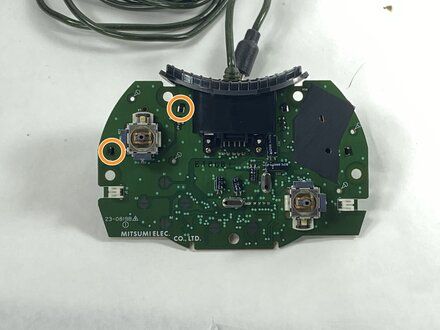

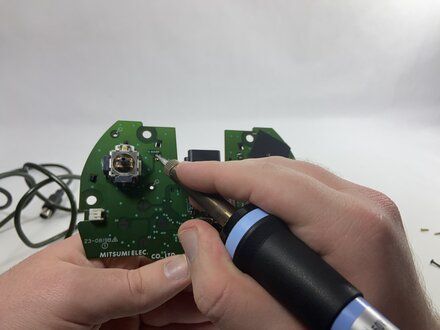

![[step 7 photo]](184359/step07-3.jpg) Desolder the connector pins holding the left trigger assembly in place. Remove the trigger assembly by pushing on the black connectors that hold them to the motherboard.
|
|
|
|  |  |  |

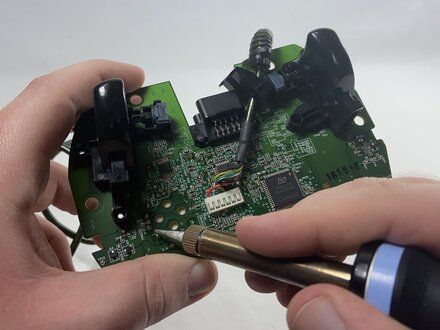

|  | ![[step 8 photo]](184359/step08-1.jpg) Desolder all of the connector pins holding the potentiometer in place. Pull out the potentiometers and solder the new ones into place.
|
|
|
|  |  |  |
|  |

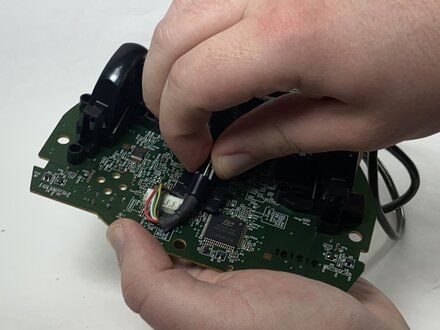

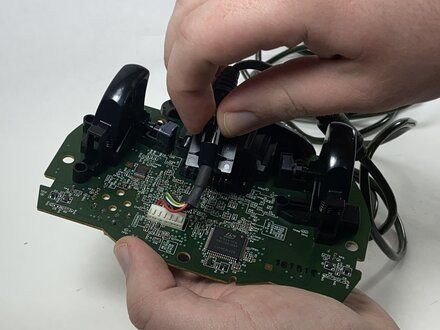

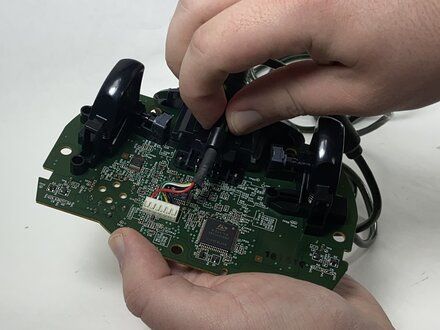

![[step 9 photo]](184359/step09-3.jpg) Disconnect the cable from the memory card slot, sliding the black plastic holder out of the slot. Remove the plastic piece from the cable.
|
|
|
|  |  |  |
|  |

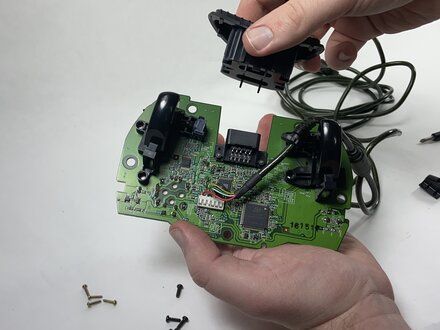

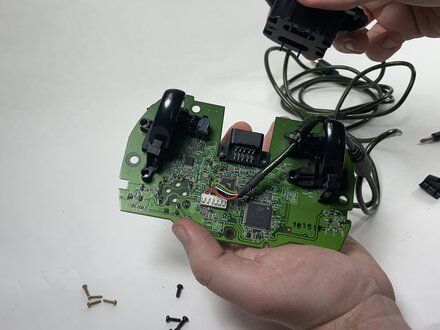

![[step 10 photo]](184359/step10-2.jpg) Remove the memory card slot by sliding it away from the motherboard.
|
|
|
|  |  |  |
|  |

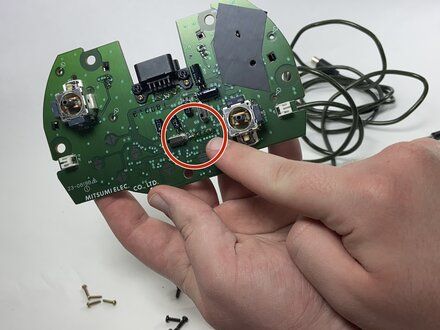

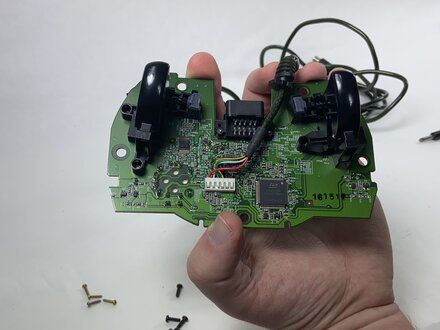

![[step 11 photo]](184359/step11-2.jpg) Desolder the pins holding the cable in place, then pull the cable away from the motherboard. Solder the new cable into the motherboard.
|
|
|
|  |  |  |
|  | | To reassemble your device, follow these instructions in reverse order. |
|
|
|  |  |  |
|
