Xbox Duke Controller Potentiometer Replacement
DeviceXbox Duke Controller
DifficultyModerate
Time15 minutes
Steps8
This guide is by Anthony Casino on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If the control sticks on your Xbox Duke Controller aren't registering input or are registering input when you aren't touching them, use this guide to replace them.

Before using this guide, check to see if there is any dirt or debris clogging the space between the controller and the control stick. Spraying a small amount of contact cleaner into that space and rolling the control stick around can potentially fix the issue. Otherwise, the problem may lie with the potentiometer inside the controller.

A small amount of contact cleaner directly in the potentiometer may work, otherwise they will need to be replaced. Follow this guide (https://www.ifixit.com/Guide/Xbox+Duke+Controller+Face+Buttons+Replacement/183606) up to Step 2 to open up the Duke controller and separate the two halves.

Tools: Phillips #1 Screwdriver; Soldering Workstation; iFixit Opening Tool; Magnetic Project Mat; Tweezers


Step 1
[step 1 photo] [step 1 photo] [step 1 photo]

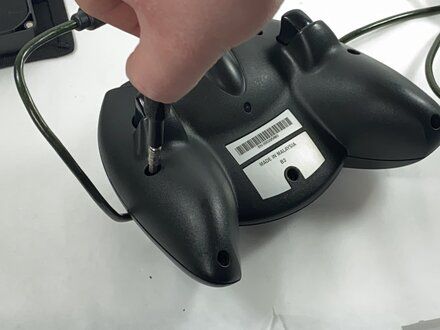

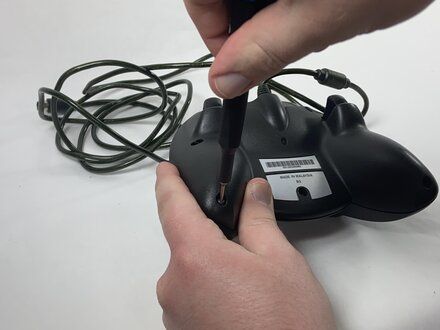

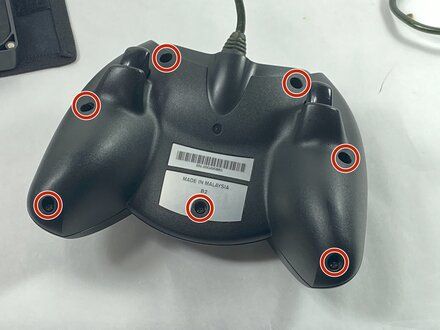

• Remove the seven black 8 mm screws holding the two halves of the Duke together using a Phillips #1 screwdriver.
• NOTE: To reach the deeply set screws, use a longer screw driver or a 4.0 socket bit in addition to the PH1 bit.

Step 2
[step 2 photo] [step 2 photo] [step 2 photo]

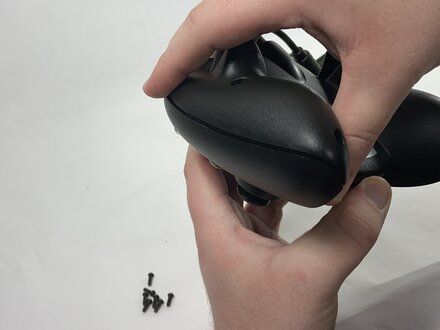

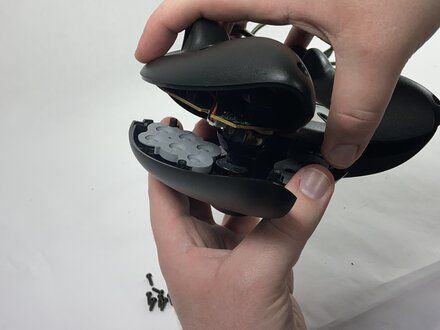

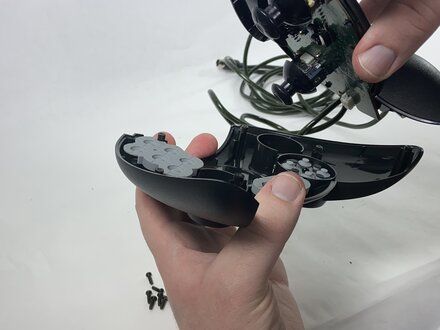

• Remove the two halves of the Duke, placing the top plate face-down so the buttons don't fall out.

Step 3
[step 3 photo] [step 3 photo]

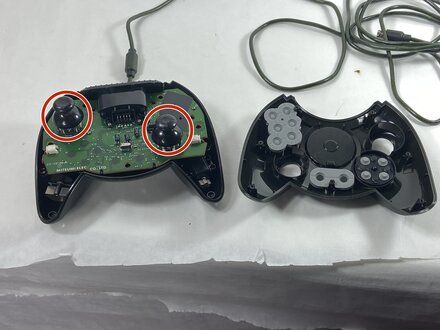

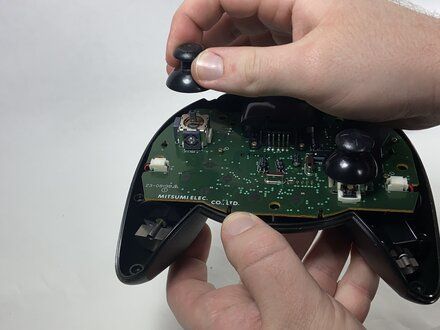

• Remove the stick caps from the potentiometers.

Step 4
[step 4 photo] [step 4 photo]

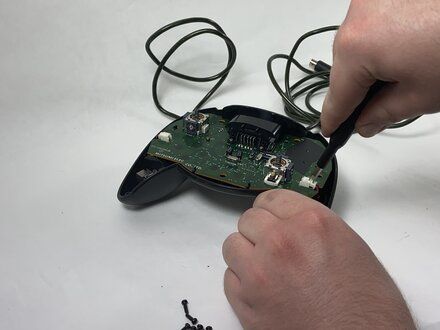

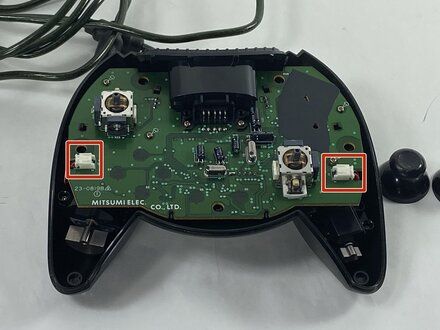

• Disconnect the connectors attaching the rumble motors to the motherboard using a pair of tweezers.
• CAUTION: Be gentle when slipping the tweezers underneath the flaps of the connectors; they are fragile and can snap.

Step 5
[step 5 photo] [step 5 photo]

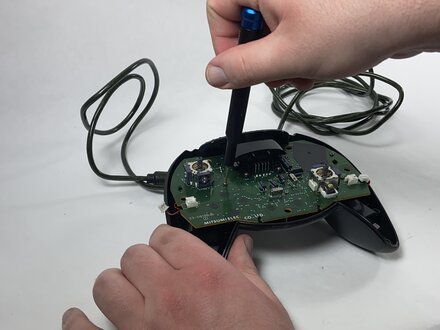

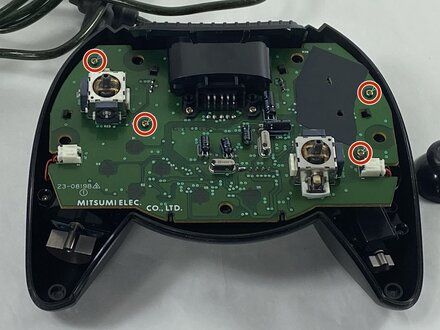

• Using a Phillips #1 screwdriver, remove the four yellow 8 mm screws holding the motherboard to the bottom half of the controller.

Step 6
[step 6 photo] [step 6 photo]

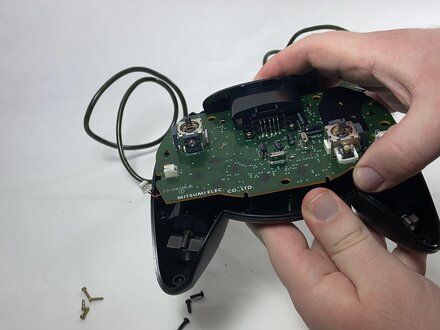

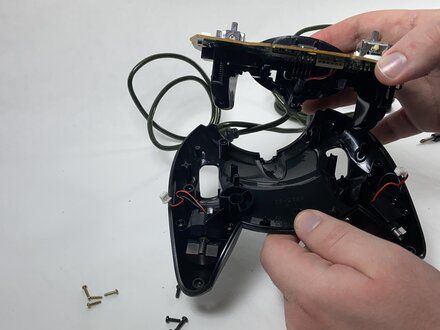

• Remove the motherboard from the bottom half of the controller.

Step 7
[step 7 photo] [step 7 photo] [step 7 photo]

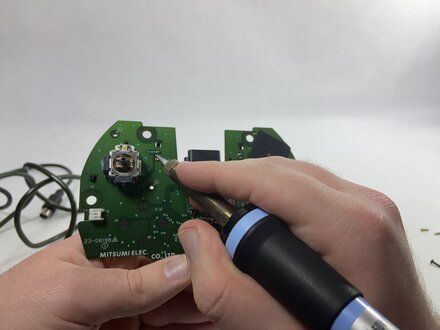

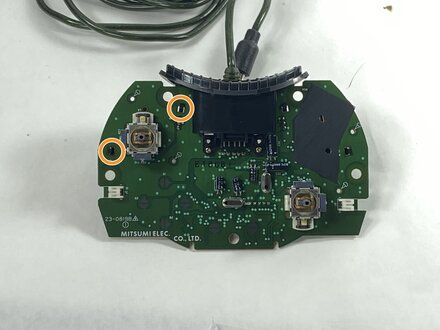

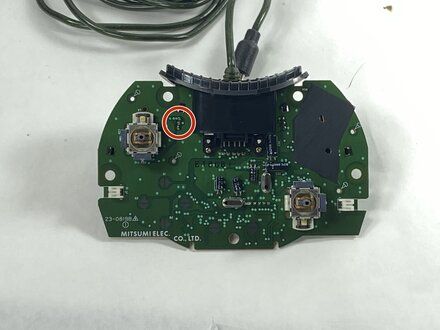

• Desolder the connector pins holding the left trigger assembly in place.
• Remove the trigger assembly by pushing on the black connectors that hold them to the motherboard.

Step 8
[step 8 photo]

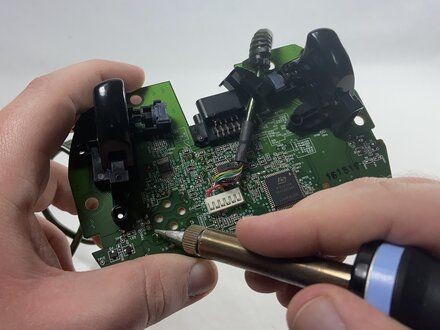

• Desolder all of the connector pins holding the potentiometer in place.
• Pull out the potentiometers and solder the new ones into place.

Conclusion
To reassemble your device, follow these instructions in reverse order.

Credit
This guide is by Anthony Casino on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
