Game Boy Micro Battery Replacement

Device	Game Boy Micro
Difficulty	Easy
Time	1 - 3 minutes
Steps	2

This guide is by SonoSooS on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show how to safely replace the battery without damaging other parts of the board, or the battery itself.

Tools: Phillips #00 Screwdriver; Spudger

Step 1 :: Remove the Cover

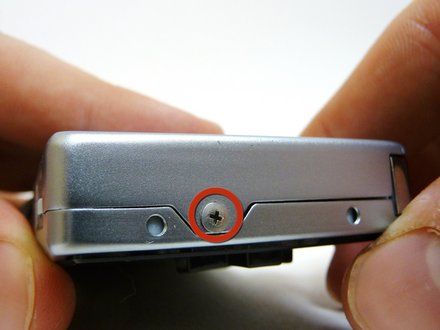

• Remove the Phillips #00 screw on the side of the Game Boy closest to the directional pad.

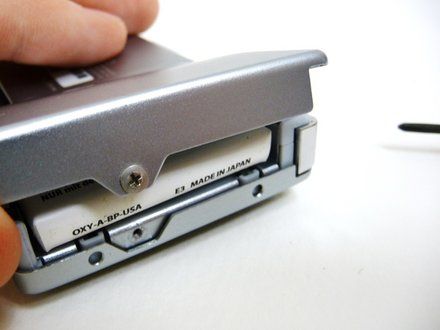

• Once the screw has been loosened, lift the cover off the back of the device.

Step 2 :: Remove battery

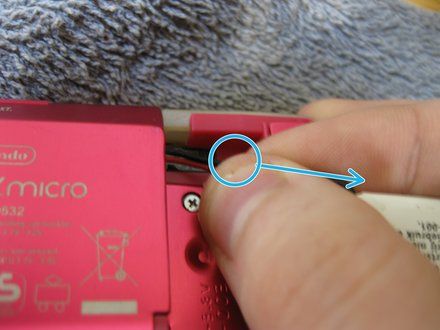

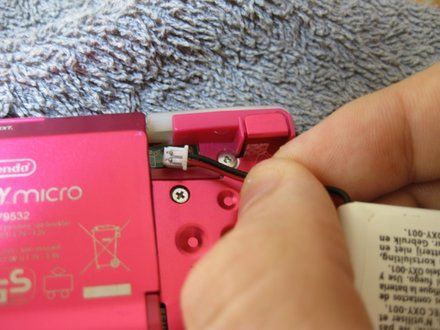

• Grip, and gently pull outwards on the cable as close to the battery connector as you can
• CAUTION: Pull in level with the back cover in the direction as indicated by the arrow (not upwards, and not sideways), otherwise you could damage the connector, the cable, or just rip everything off.

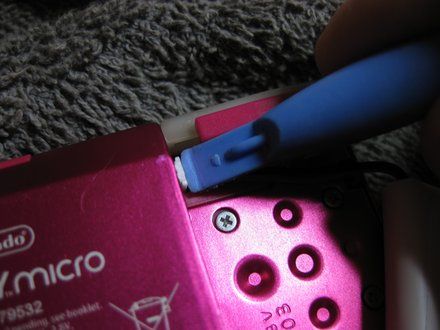

• REMINDER: When plugging the battery back in, make sure to use a non-conductive tool with a flat head to push the battery plug back into the connector, to avoid shorting the battery pins in the plug.

Conclusion

To reassemble your device, follow these instructions in reverse order.
