NINTENDO SUPER FAMICOM SHVC-001 SOUND
CARD REPLACEMENT::
DeviceNintendo Super Famicom SHVC-001
DifficultyEasy
Time15 - 25 minutes
Steps4
This guide is by Carter Eason on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Is the audio of your Super Famicon hard to hear or not audible completely? If so, you may have distorted audio from dried capacitors. With this guide, we will give you steps to replace the sound chip inside of the device to reconcile your audio problems. You will need a Gamebit screwdriver and a Phillips screwdriver. Happy Fixing!

Tools: Gamebit 4.5mm; Phillips #1 Screwdriver


STEP 1::
[step 1 photo]

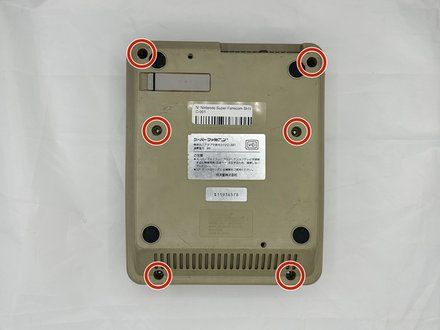

• Remove the six 13.5 mm screws on the lower case with a 4.5 mm Gamebit screwdriver.

STEP 2::
[step 2 photo] [step 2 photo]

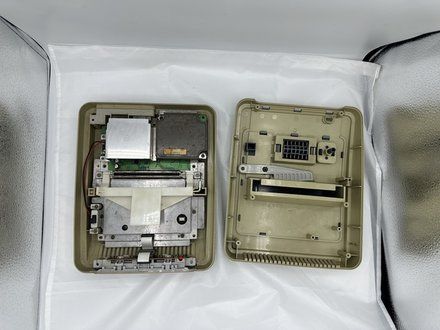

• Flip the Famicom over and set it down.

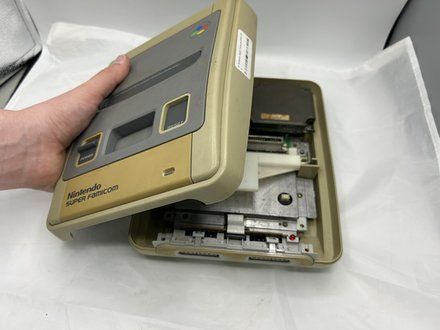

• Lift off the upper case.

STEP 3::
[step 3 photo] [step 3 photo]

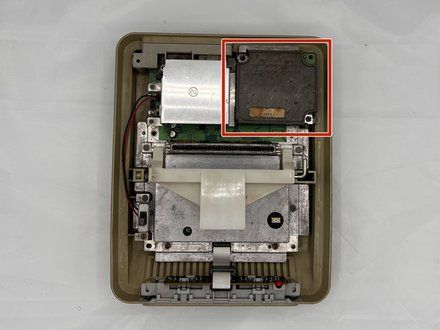

• The sound card is located in the top right corner of the device.

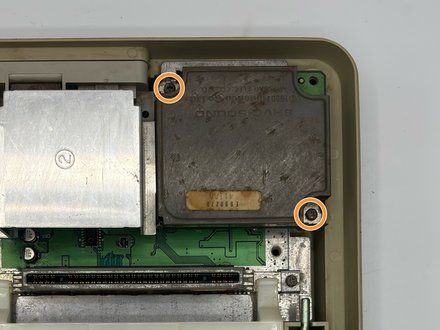

• Remove the two 15.6 mm Phillips screws that secure the sound card.

STEP 4::
[step 4 photo] [step 4 photo]

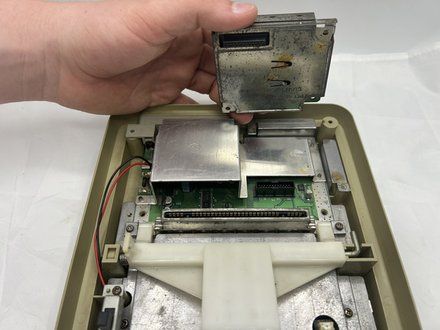

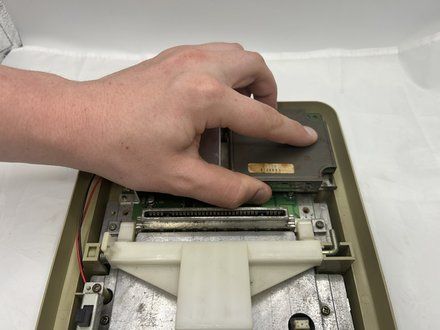

• Lift the sound card up and out of the chassis.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by Carter Eason on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
