IBM THINKPAD R30 CD DRIVE REPLACEMENT::
DeviceIBM Thinkpad R30 2656
DifficultyVery easy
Time10 - 15 seconds
Steps2
This guide is by Viscous on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Parts: IBM CD-224E CD Drive


STEP 1 :: REMOVING THE EXISTING DISC DRIVE::
[step 1 photo] [step 1 photo] [step 1 photo]

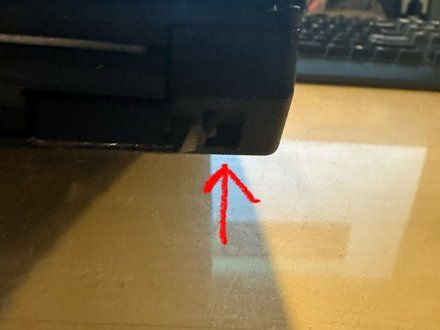

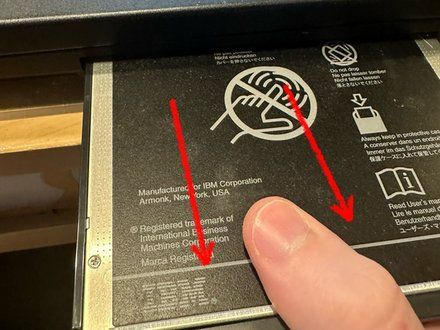

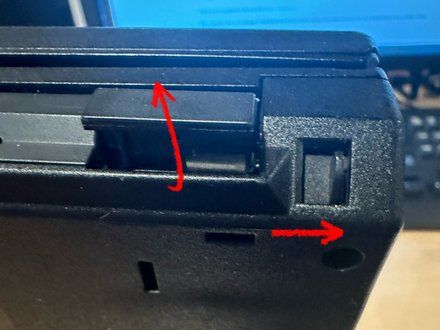

• Locate the switch to the left of the drive, on the right side of the laptop.
• Push it to the right, and a pull handle will pop out.
• Pull the handle out until the CD drive pops out.
• From there, simply pull the drive out.

STEP 2 :: INSERTING THE REPLACEMENT::
[step 2 photo] [step 2 photo]

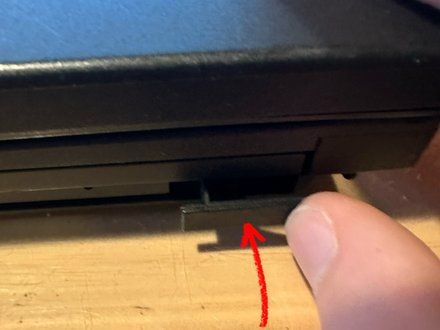

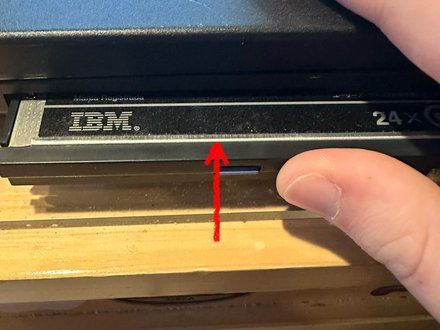

• Push the drive all the way in.
• Push the handle back in until a loud click is heard.

CONCLUSION::
That's it!

CREDIT::
This guide is by Viscous on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
