DevicePAL Super Nintendo
DifficultyModerate
Time1 hour
Steps2
This guide is by Reparaturcafe Meiningen on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

The console only had audio on one channel. The reason for this was leaking capacitors that had partially damaged the circuit traces.


STEP 1 :: EXPOSING THE PCB::
[step 1 photo]

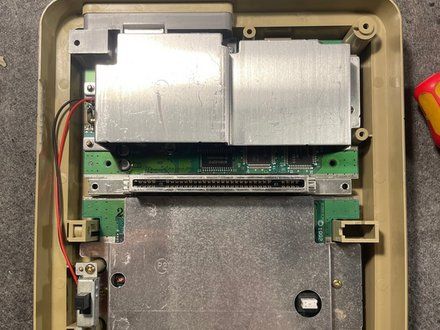

• Open the Nintendo and remove the motherboard. Then, unscrew the top metal cover. The capacitors are located underneath.

STEP 2 :: TESTING AND REPLACING
CAPACITORS::
[step 2 photo]

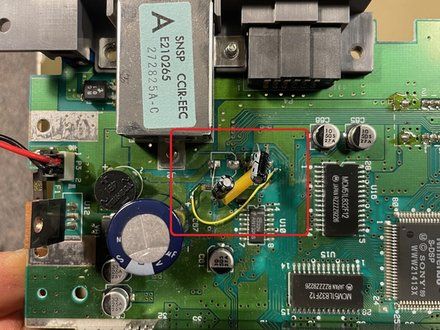

• The 2 SMD capacitors, each rated at 10µF in this area, had leaked and partially damaged the traces in the surrounding area. A wire jumper and 2 replacement capacitors were soldered on.

CONCLUSION::
Follow the steps in reverse order to reassemble your device.

CREDIT::
This guide is by Reparaturcafe Meiningen on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
