GAME BOY POCKET TEARDOWN::
DeviceGame Boy Pocket
DifficultyModerate
Time15 - 25 minutes
Steps11
This guide is by John on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Today, we're going to Teardown the Game Boy Pocket to take a a closer look at the components and shell etc.

Tools: Tri-point Y00 Screwdriver Bit; J00 JIS Screwdriver; JIS #000 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo]

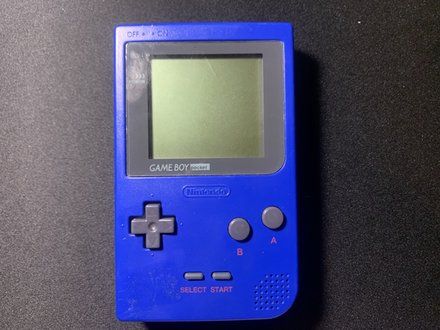

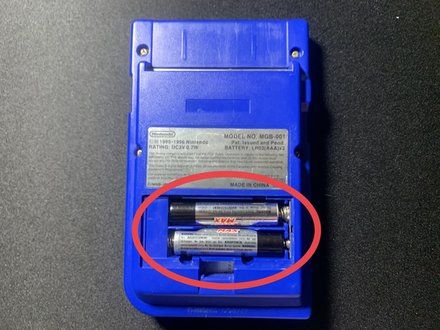

• Turn the game boy pocket around and remove the battery cover and batteries.
• REMINDER: Please note that I don't have a battery cover.

STEP 2::
[step 2 photo] [step 2 photo]

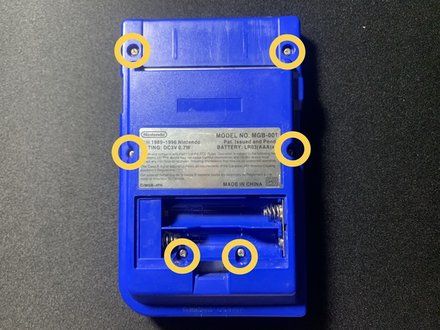

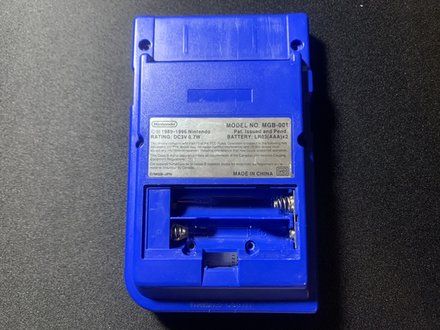

• Using a Y00 screw, remove 6 screws from the back.

STEP 3::
[step 3 photo]

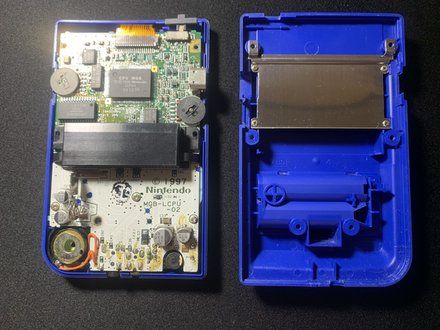

• Remove back cover.

STEP 4::
[step 4 photo] [step 4 photo]

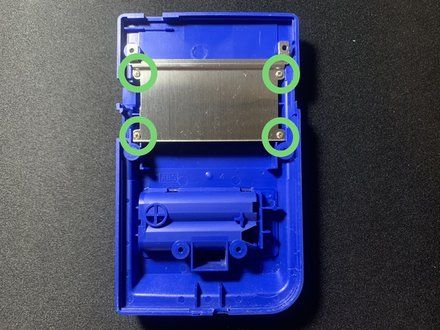

• Remove 4 screws from the cartridge panel using a JIS000 screw.

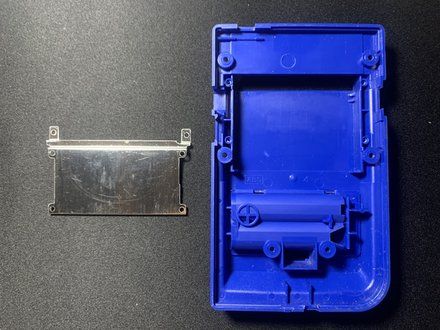

• Remove cartridge panel.

STEP 5::
[step 5 photo]

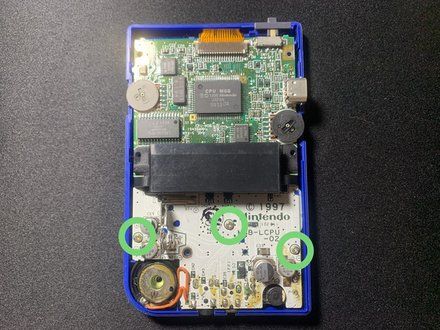

• Remove 3 screws on the motherboard using a JIS00 screw

STEP 6::
[step 6 photo]

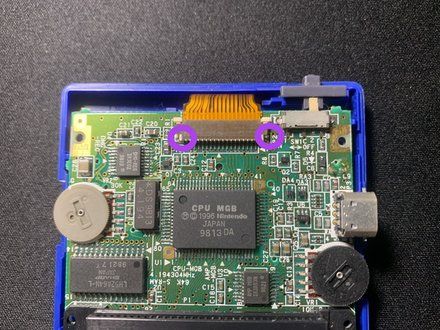

• Push on two lock pins that are locking the ribbon cable for the screen using a spudger.

STEP 7::

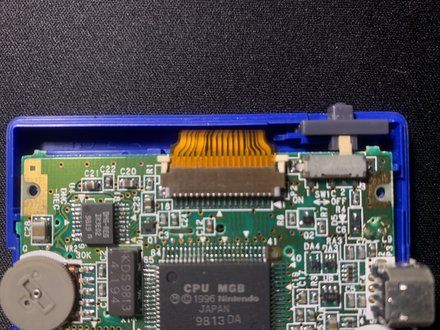

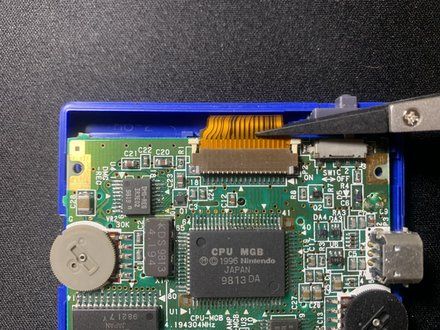

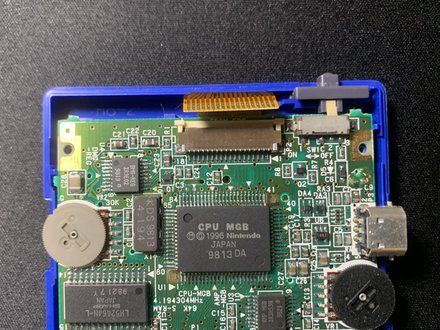

[step 7 photo] [step 7 photo] [step 7 photo]
• Using a plastic tweezer, remove the ribbon cable.
• CAUTION: Be careful not to scratch or break the ribbon cable!

STEP 8::
[step 8 photo] [step 8 photo]

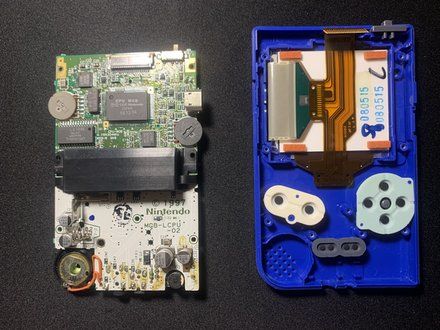

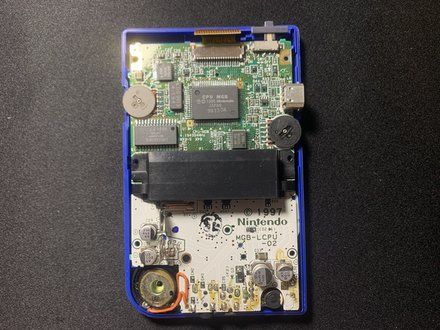

• Remove motherboard.

STEP 9::
[step 9 photo] [step 9 photo]

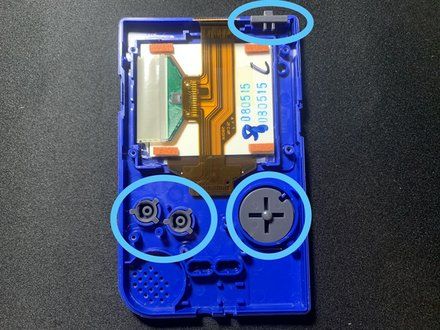

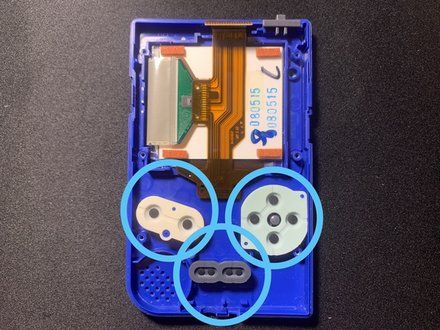

• Remove covering on buttons.
• Remove buttons.

STEP 10::
[step 10 photo] [step 10 photo]

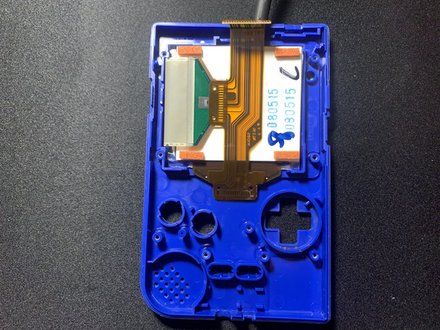

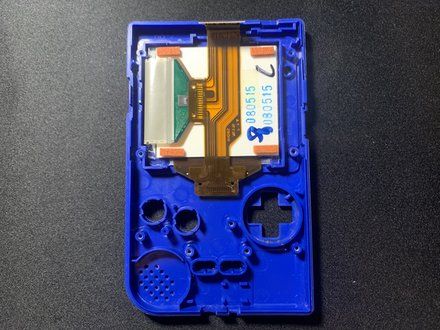

• Remove display using a spudger.
• CAUTION: Be careful not to break the display!

STEP 11::
[step 11 photo]

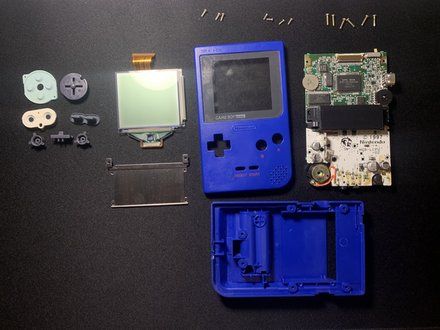

• Done!

CREDIT::
This guide is by John on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
