PlayStation 2 Disc Tray Belt Replacement

Device	PlayStation 2
Difficulty	Moderate
Time	1 hour
Steps	3

This guide is by Vinicius Rodrigues Bellini on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Step 1 :: Remove the disk dirver

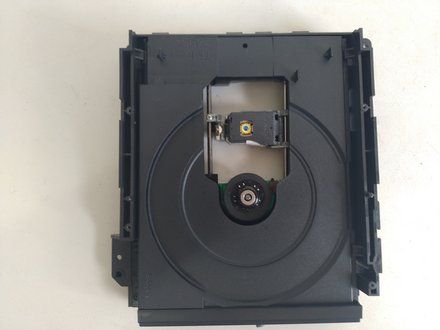

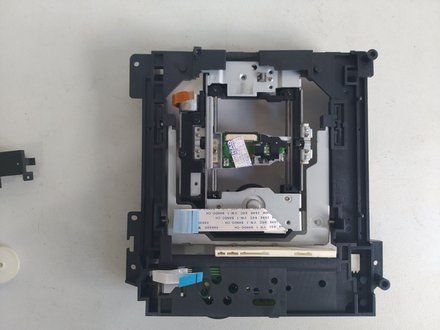

• Open the console case and remove the disk driver.
• Be careful with the flat cables and its connectors.

Step 2 :: Remove the protection

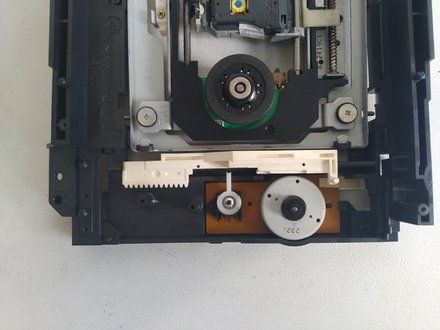

• Remove the disk tray and remove the gear plastic conver protection.
• You dont need to remove any gear form its place.

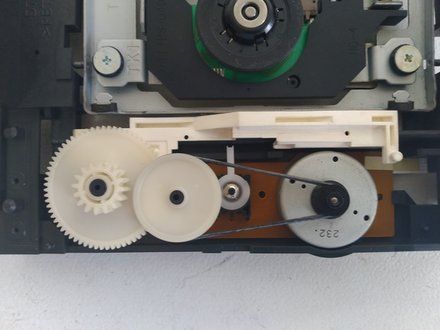

• Remove the old belt and replace with a new one.
• The belt must be a PS2 fat compatible belt. If you don't have a PS2 you can use a radio K7 driver belt but it need to have the same diameter of the PS2 belt.

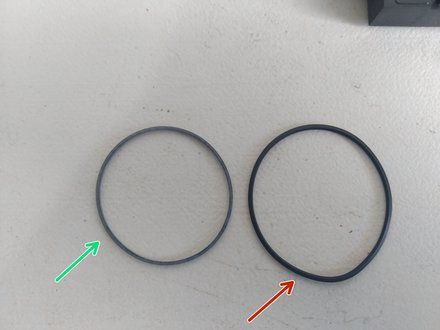

• Old and lax belt.
• Brand new belt.

Step 3 :: Clean the lens

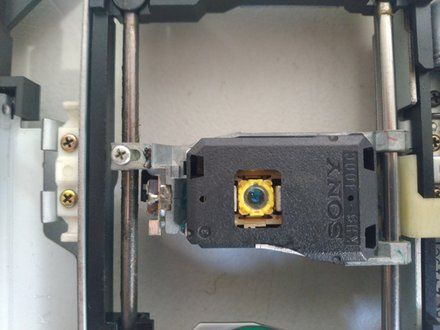

• Don't loose the opportunity and clean the laser lens with a cotton swab.
