Nintendo 64 Top Cover Replacement

Device	Nintendo 64
Difficulty	Easy
Time	5 - 10 minutes
Steps	5

This guide is by bbdiamond13 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will assist in removing the top cover of the Nintendo 64.

Tools: Gamebit 4.5mm; Metal Spudger

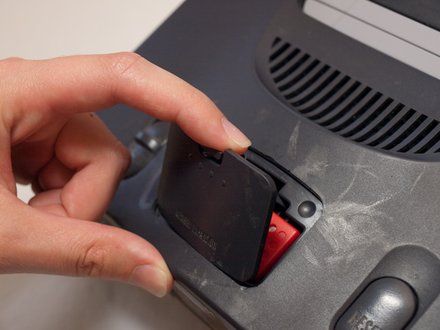

Step 1

• Remove the expansion pack cover by pushing in the tab and pulling out.

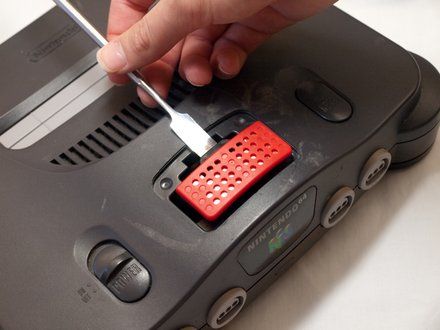

Step 2

• NOTE: If your system uses a jumper pack, the same procedure applies to remove it.
• NOTE: A small spoon can be used in place of a spudger.
• Lever the expansion pack out using a metal spudger.

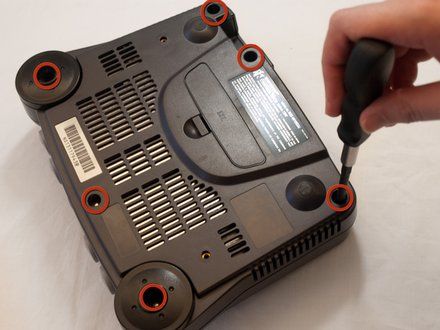

Step 3

• Remove the six screws on the bottom side indicated in the example with a gamebit head or screwdriver.

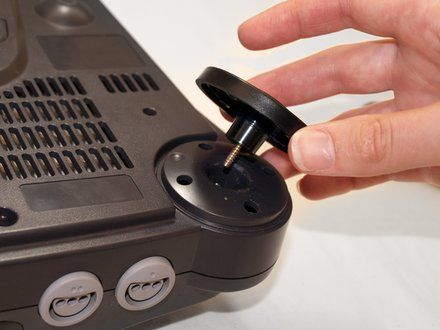

Step 4

• Remove the two front feet of the N64.

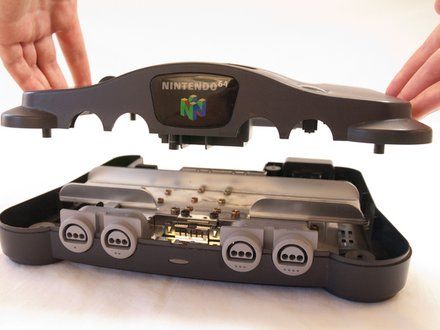

Step 5

• Rotate to top side up and lift off top cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
