| | Nintendo 64 Metal Plate Replacement |
| Device | Nintendo 64 |
| Difficulty | Easy |
| Time | 15 minutes |
| Steps | 14 |
This guide is by LisaF818 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
This guide shows how to remove the metal plate that covers the motherboard.
Tools: Gamebit 4.5mm; Metal Spudger; Phillips #1 Screwdriver; Phillips #2 Screwdriver |
|

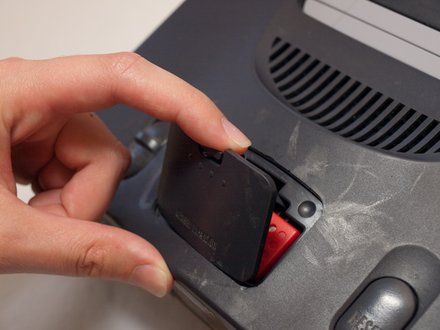

| Step 1 | ![[step 1 photo]](1609/step01-1.jpg) Remove the expansion pack cover by pushing in the tab and pulling out.
|
|

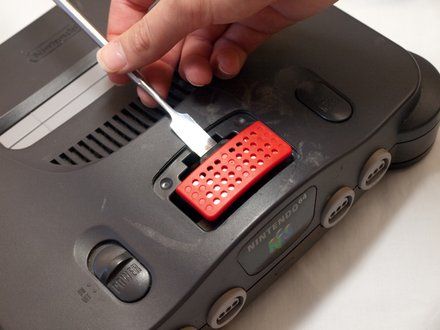

| Step 2 | ![[step 2 photo]](1609/step02-1.jpg) NOTE: If your system uses a jumper pack, the same procedure applies to remove it. NOTE: A small spoon can be used in place of a spudger. Lever the expansion pack out using a metal spudger.
|
|

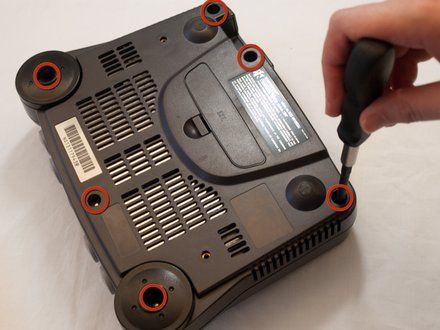

| Step 3 | ![[step 3 photo]](1609/step03-1.jpg) Remove the six screws on the bottom side indicated in the example with a gamebit head or screwdriver.
|
|

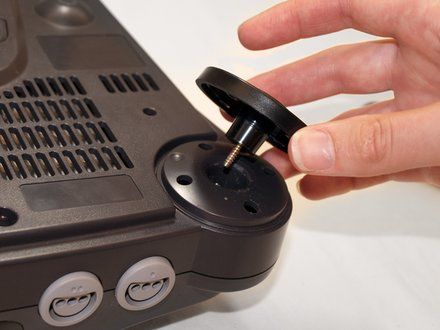

| Step 4 | ![[step 4 photo]](1609/step04-1.jpg) Remove the two front feet of the N64.
|
|

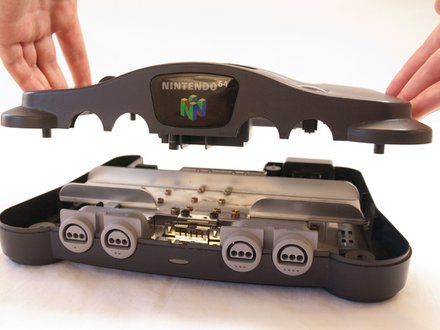

| Step 5 | ![[step 5 photo]](1609/step05-1.jpg) Rotate to top side up and lift off top cover.
|
|
| Step 6 |

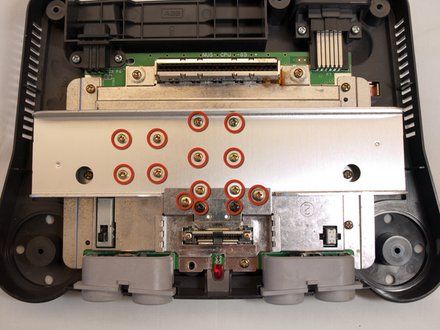

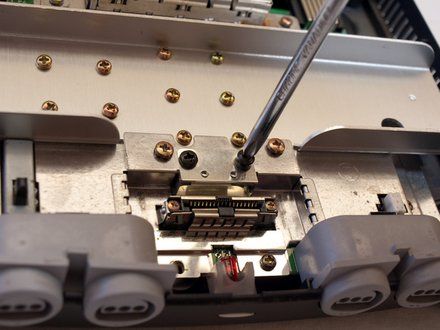

![[step 6 photo]](1609/step06-2.jpg) Remove the fourteen screws indicated in the example using the larger Phillips screwdriver.
|
|
| Step 7 |

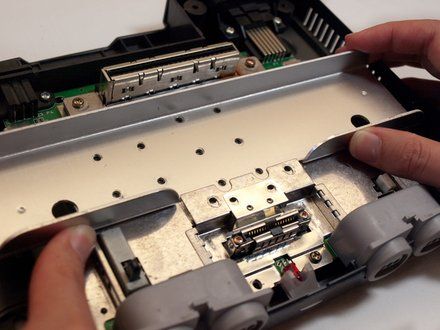

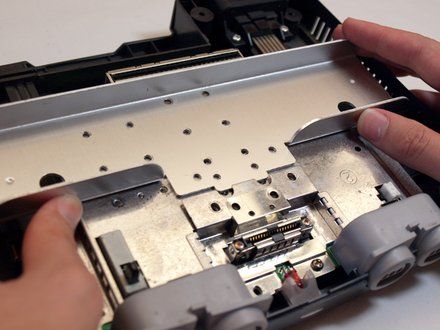

![[step 7 photo]](1609/step07-2.jpg) Remove the metal plate indicated in the example by sliding it back and then lifting it up.
|
|

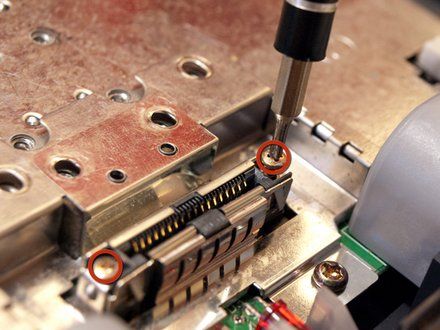

| Step 8 | ![[step 8 photo]](1609/step08-1.jpg) Remove the two screws indicated in the example using the smaller Phillips screwdriver.
|
|

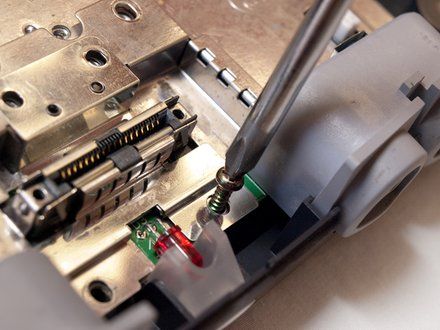

| Step 9 | ![[step 9 photo]](1609/step09-1.jpg) Remove the screw to the right of the LED light using the larger Phillips screwdriver.
|
|

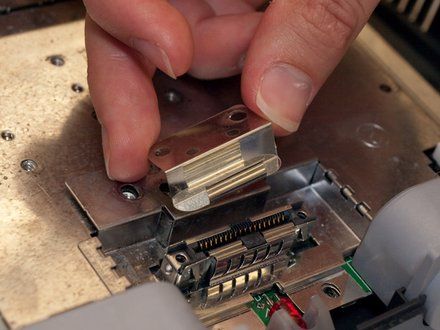

| Step 10 | ![[step 10 photo]](1609/step10-1.jpg) Remove the small metal bracket from the back of the expansion pack slot.
|
|
| Step 11 |

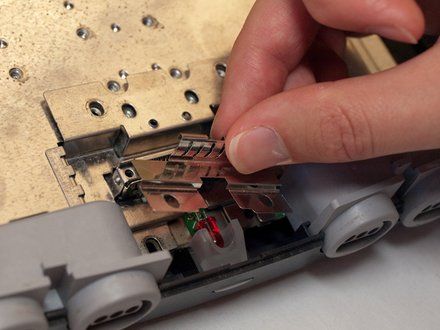

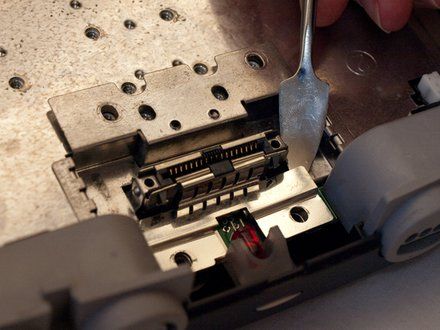

![[step 11 photo]](1609/step11-2.jpg) Remove the small metal bracket from the front of the expansion pack slot with the metal spudger.
|
|
| Step 12 |

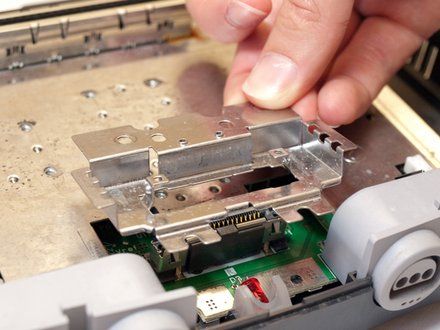

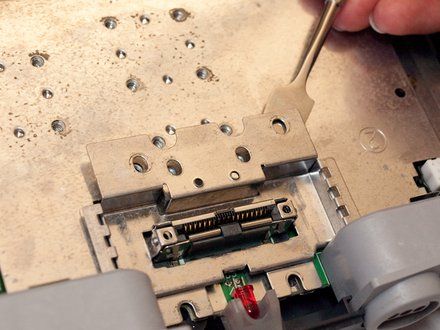

![[step 12 photo]](1609/step12-2.jpg) Remove the small metal bracket behind the expansion slot using the spudger.
|
|
| Step 13 |

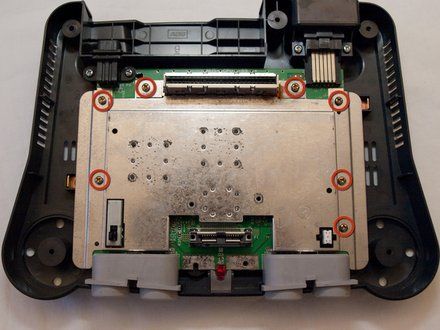

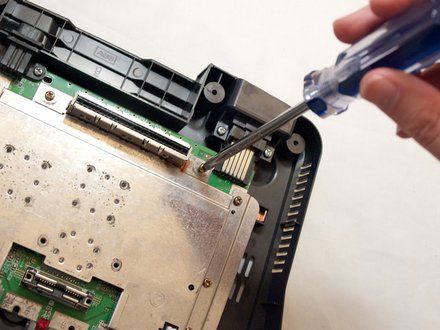

![[step 13 photo]](1609/step13-2.jpg) Remove the seven screws indicated in the example using the larger Phillips screwdriver.
|
|

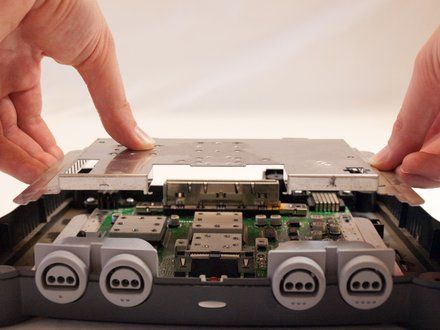

| Step 14 | ![[step 14 photo]](1609/step14-1.jpg) Lift off and remove the metal plate as indicated in the example.
|
|
| Conclusion | | To reassemble your device, follow these instructions in reverse order. |
|
|
