Nintendo 64 Motherboard Replacement
DeviceNintendo 64
DifficultyEasy
Time15 - 20 minutes
Steps16
This guide is by tonymag28 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide will show how to replace the Nintendo 64 motherboard.

Tools: Gamebit 4.5mm; Phillips #2 Screwdriver; Metal Spudger; Phillips #1 Screwdriver


Step 1
[step 1 photo]

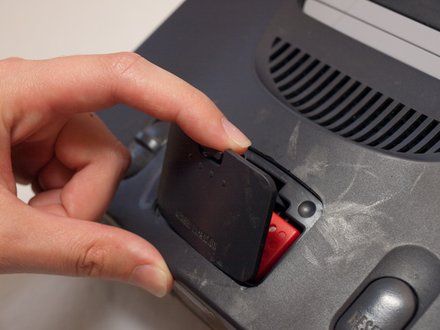

• Remove the expansion pack cover by pushing in the tab and pulling out.

Step 2
[step 2 photo]

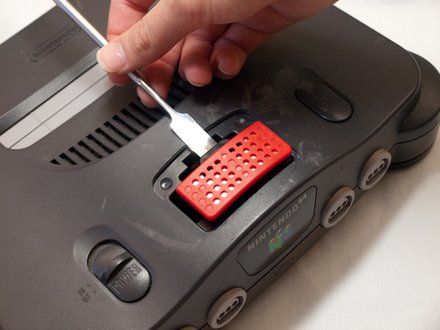

• NOTE: If your system uses a jumper pack, the same procedure applies to remove it.
• NOTE: A small spoon can be used in place of a spudger.
• Lever the expansion pack out using a metal spudger.

Step 3
[step 3 photo]

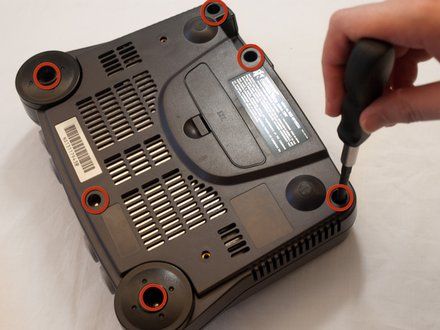

• Remove the six screws on the bottom side indicated in the example with a gamebit head or screwdriver.

Step 4
[step 4 photo]

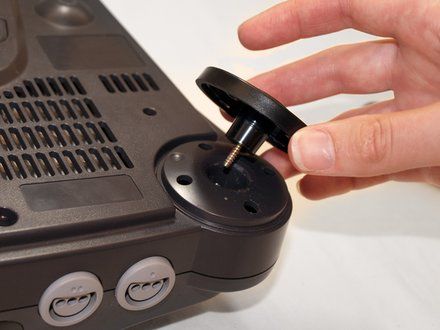

• Remove the two front feet of the N64.

Step 5
[step 5 photo]

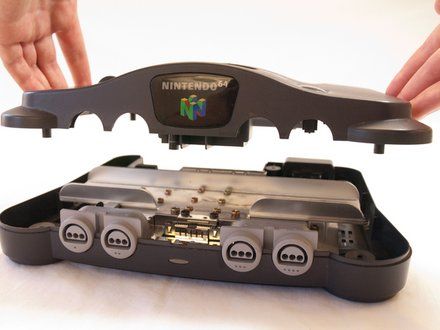

• Rotate to top side up and lift off top cover.

Step 6
[step 6 photo] [step 6 photo]

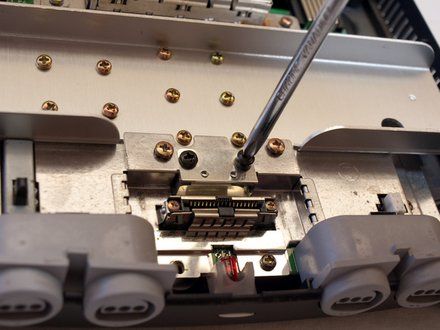

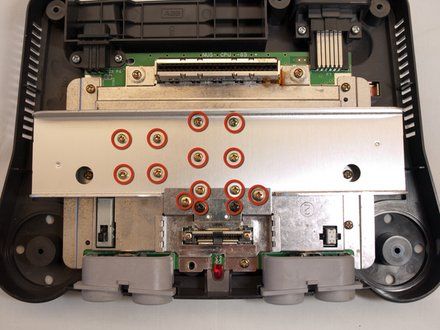

• Remove the fourteen screws indicated in the example using the larger Phillips screwdriver.

Step 7

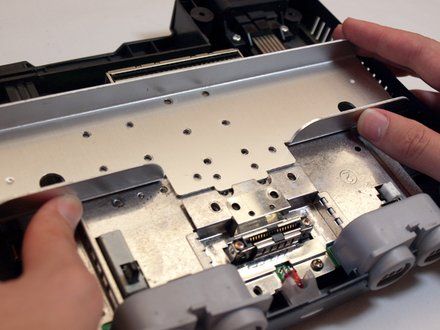

[step 7 photo] [step 7 photo]

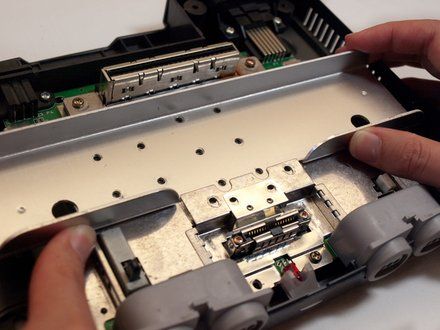

• Remove the metal plate indicated in the example by sliding it back and then lifting it up.

Step 8
[step 8 photo]

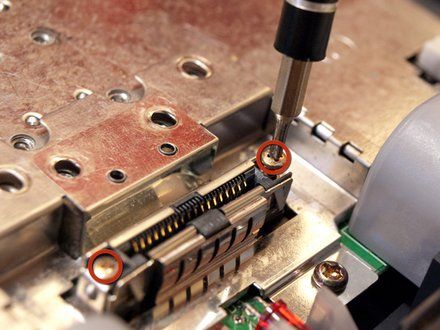

• Remove the two screws indicated in the example using the smaller Phillips screwdriver.

Step 9
[step 9 photo]

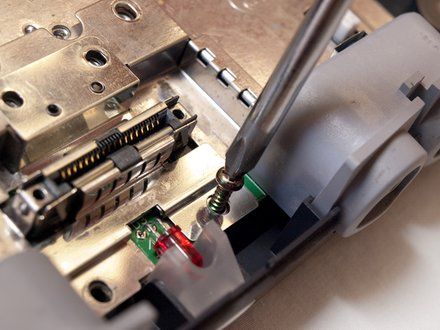

• Remove the screw to the right of the LED light using the larger Phillips screwdriver.

Step 10

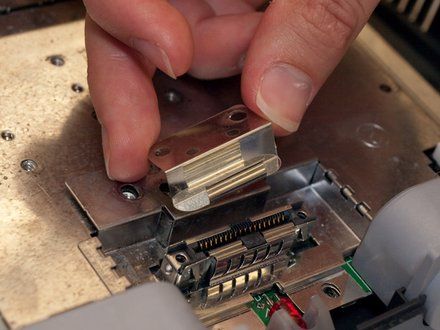

[step 10 photo]
• Remove the small metal bracket from the back of the expansion pack slot.

Step 11

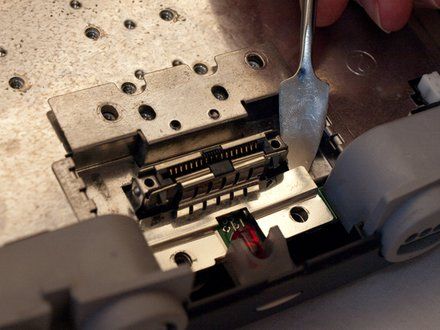

[step 11 photo] [step 11 photo]

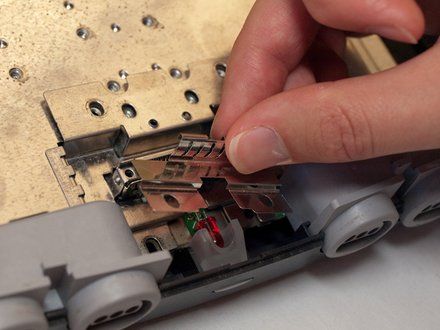

• Remove the small metal bracket from the front of the expansion pack slot with the metal spudger.

Step 12
[step 12 photo] [step 12 photo]

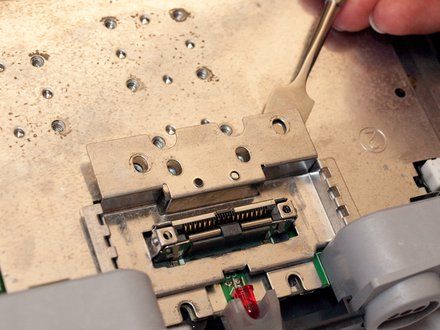

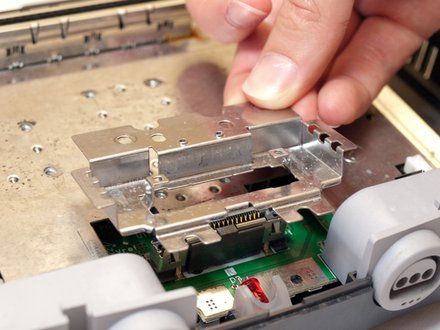

• Remove the small metal bracket behind the expansion slot using the spudger.

Step 13

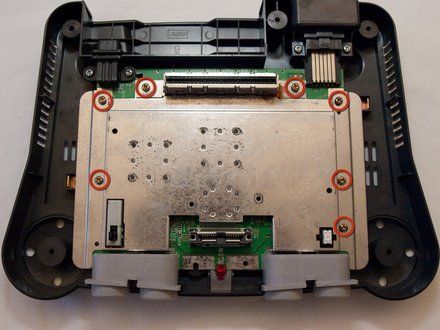

[step 13 photo] [step 13 photo]

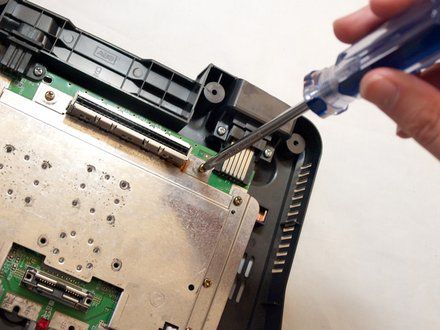

• Remove the seven screws indicated in the example using the larger Phillips screwdriver.

Step 14
[step 14 photo]

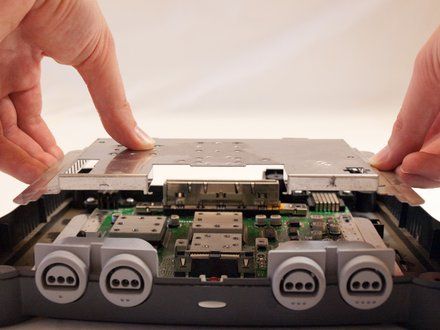

• Lift off and remove the metal plate as indicated in the example.

Step 15
[step 15 photo]

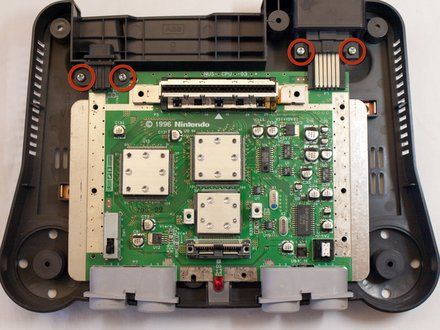

• Remove the four screws indicated using the #1 Phillips screwdriver.

Step 16 :: Motherboard removal

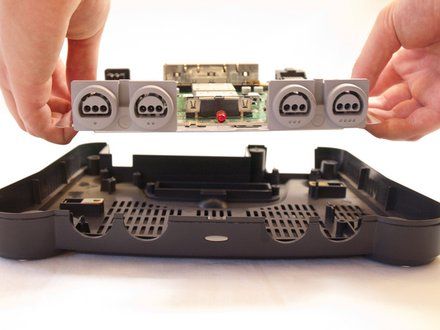

[step 16 photo]
• Lift up and remove the motherboard.

Conclusion
To reassemble your device, follow these instructions in reverse order.
