PlayStation Power Supply Replacement

Device	PlayStation
Difficulty	Moderate
Time	10 - 15 minutes
Steps	5

This guide is by Craig Lloyd on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

If your PlayStation won't power on, the power supply may need to be replaced. This guide will take you through the process of replacing the power supply.

Note: This repair is demonstrated on a SCPH-1001 model. The process may differ slightly if you have a later model.

Tools: Phillips #1 Screwdriver

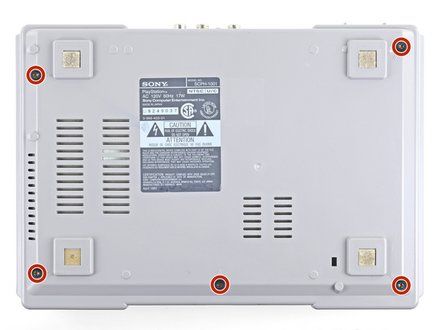

Step 1 :: Open the Console

• CAUTION: Before you begin, make sure the console is turned off and unplugged.
• Turn the console upside down and remove the five 15.8 mm-long Phillips #1 screws.

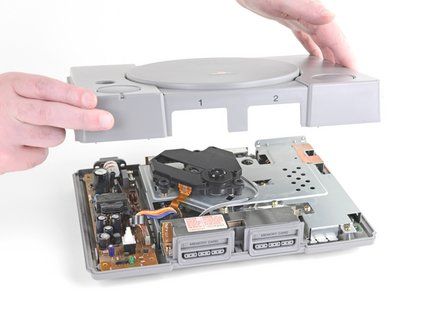

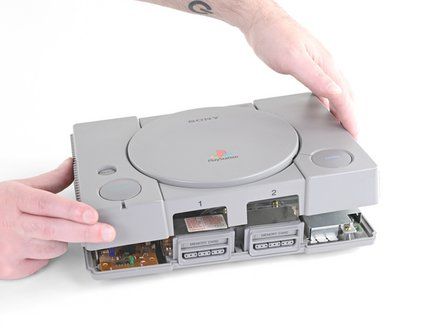

Step 2

• While holding the top and bottom halves of the console together, flip the console back over. Lift the top cover straight up to remove it.

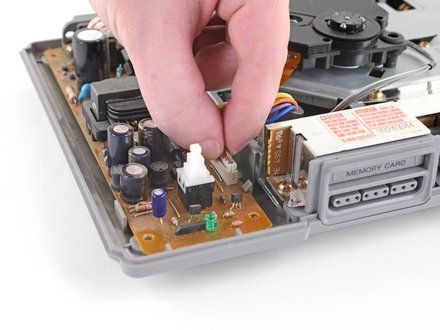

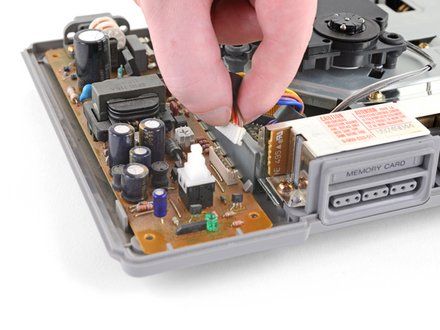

Step 3 :: Unplug the Power Supply

• Pull the power supply cable straight up and out of its socket on the power supply to disconnect it.

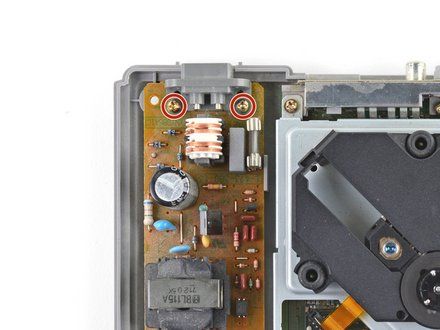

Step 4 :: Remove the Power Supply

• Remove the two 14 mm-long Phillips #1 screws securing the power supply to the bottom case.

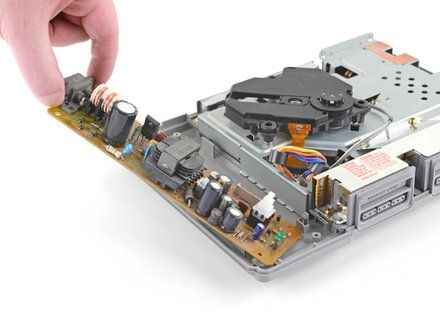

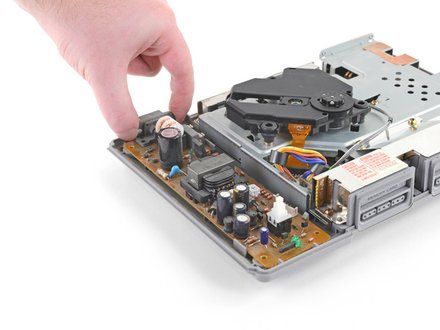

Step 5

• Lift the outer edge of the power supply slightly, then rotate the whole power supply away from the small clip on its inner edge to remove the power supply.

Conclusion

Compare your new replacement part to the original part--you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler (https://www.ifixit.com/Wiki/E-Waste).

Repair didn't go as planned? Check out our Answers community (https://www.ifixit.com/Answers/Device/PlayStation) for troubleshooting help.
