Sega Dreamcast GD-ROM Replacement

Device	Sega Dreamcast
Difficulty	Moderate
Time	10 minutes
Steps	11

This guide is by Thorr686 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

This guide details how to replace a failed GD-ROM drive with a new working drive.

Be sure to replace the GD-ROM with one corresponding to your model number. Refer to the Top Cover Disassembly Guide (https://www.ifixit.com/Guide/Sega+Dreamcast+Top+Cover+Replacement/1570) for instructions on where to find your model number.

Problem with this guide: The photos incorrectly show the power supply has been removed.

Tools: Phillips #1 Screwdriver

Step 1

• CAUTION: Verify that the console is disconnected from the AC outlet before you begin.

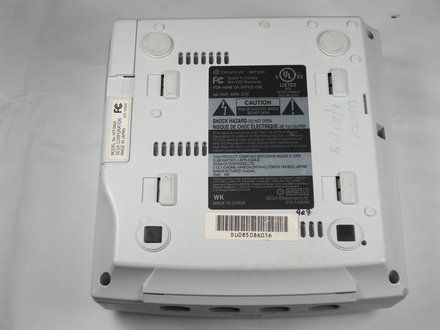

• Flip the console over on its back.

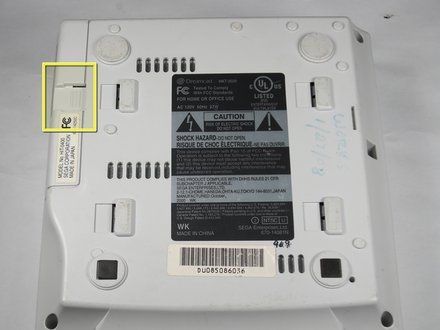

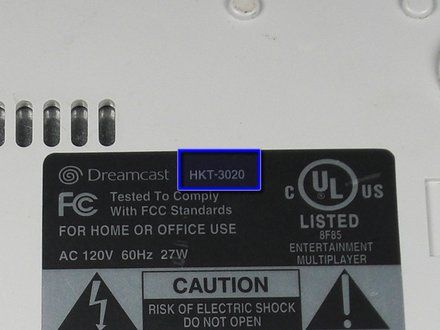

• Take note of your model number, in case replacement parts are needed.

Step 2

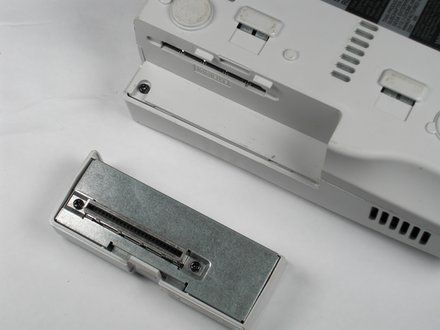

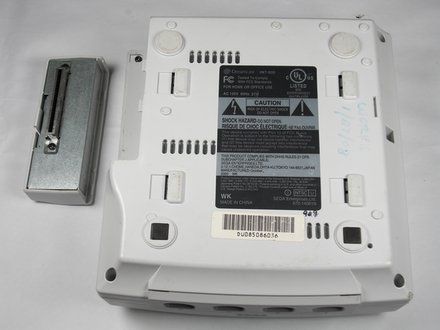

• Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

Step 3

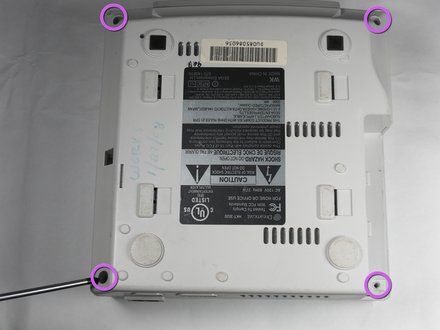

• Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.
• NOTE: Note: Remove the expansion bay to locate the fourth screw

Step 4

• CAUTION: Internal components can be loose. Be careful that they do not fall out when removing the cover.

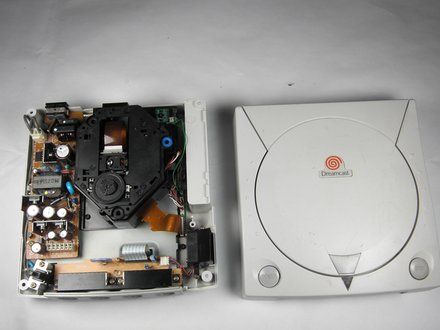

• Turn the console right side up.
• Remove the top cover by gently lifting the upper portion of the console.

Step 5

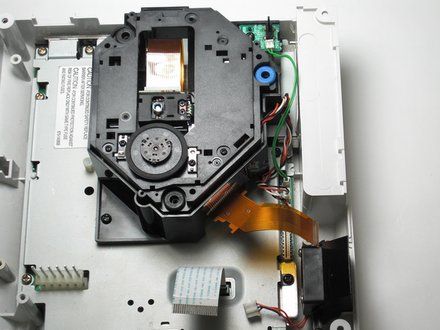

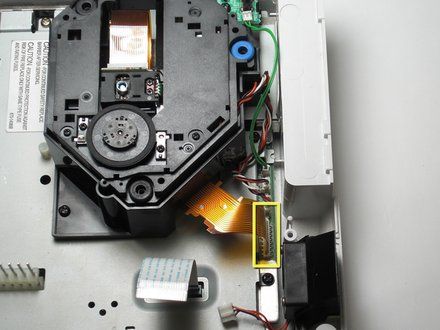

• Detach the orange cable by giving it a gentle pull while wiggling the cable back and forth until it loosens from the logic board.

Step 6

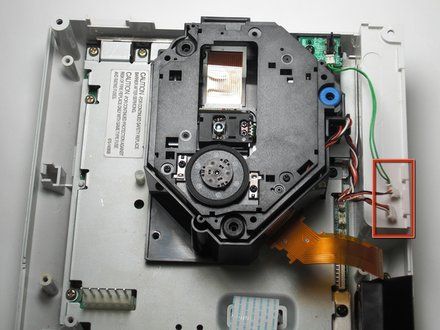

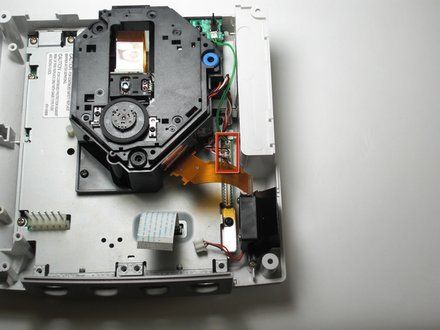

• Detach the cables by gently pulling the three GD-ROM cables to remove them from the logic board.

Step 7

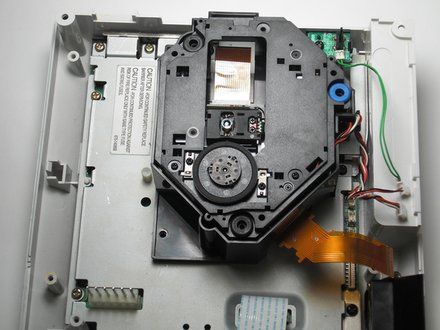

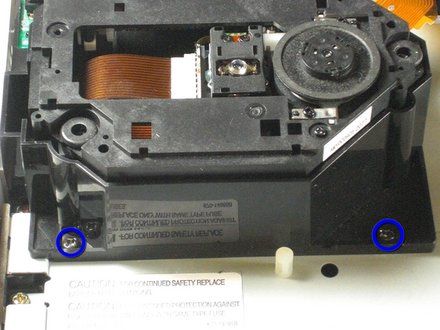

• Remove the two black 12mm Philips #02 screws located on the left side of the GD-ROM bracket.
• NOTE: The console is rotated 90 degrees counter-clockwise in the first photo. The second photo depicts the normal position.

Step 8

• CAUTION: When lifting the GD-ROM, be careful that the top half of the casing does not detached from its base.

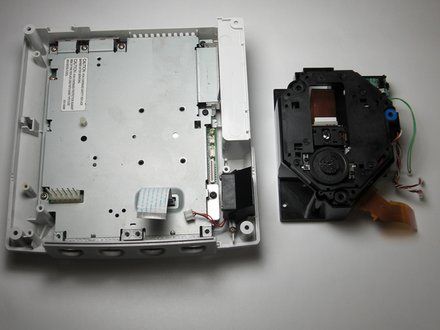

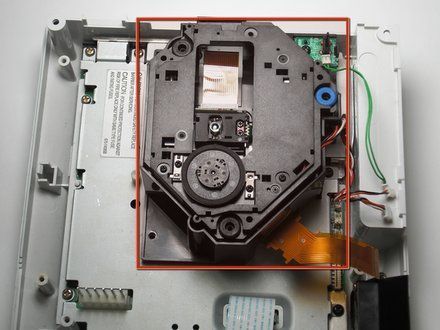

• Remove the GD-ROM by gently lifting it from its base.

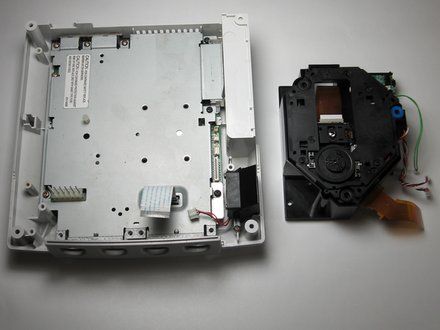

Step 9

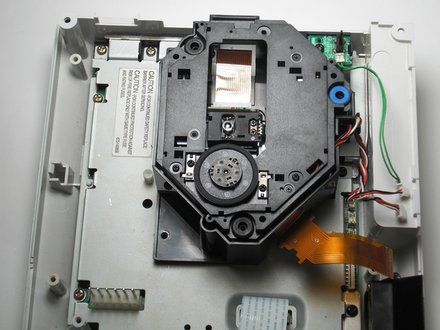

• Replace the bad GD-ROM drive with a functional one.

Step 10

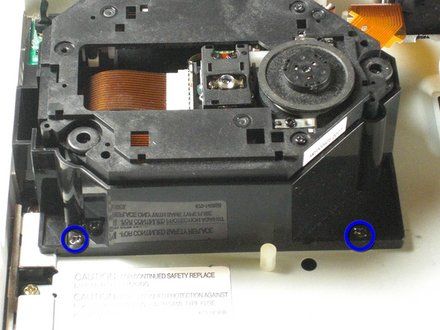

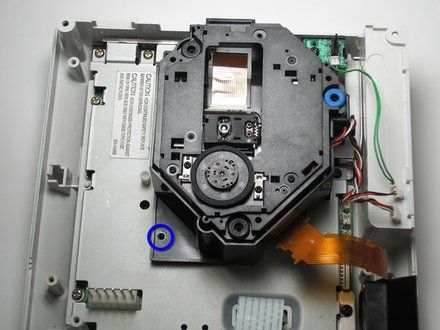

• Secure the new GD-ROM drive to the console with the Philips #2 screws.

Step 11

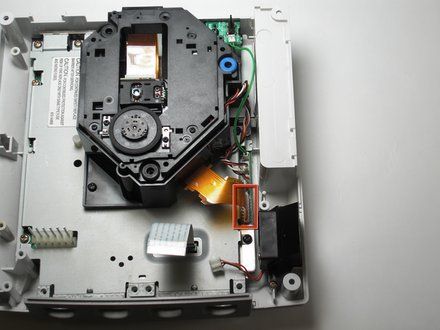

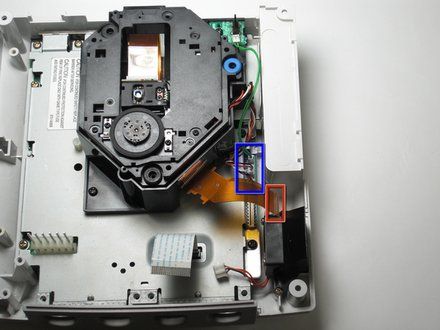

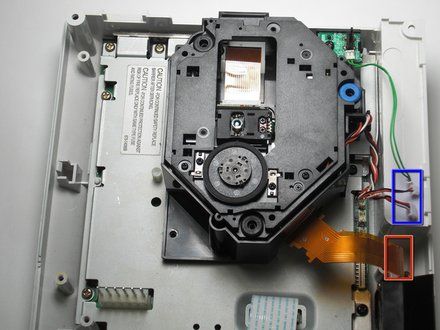

• Connect the three GD-ROM cables to the logic board.
• Connect the GD-ROM data ribbon to the logic board.

Credit
