Macintosh Classic II Hard Drive Removal

Device	Macintosh Classic II
Difficulty	Moderate
Time	5 - 10 minutes
Steps	8

This guide is by oldturkey03 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

Tools: T15 Torx Screwdriver; 6mm Philips Screwdriver

Parts: 40 GB Hard Drive

Step 1

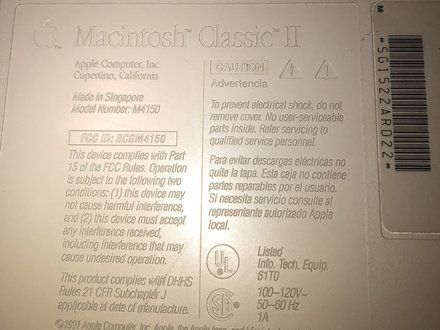

• Here is one of the vintage computers in my possession. It is a Macintosh Classic II M4150. Apple considers this obsolete and " information about these products is no longer updated as of 9/1/98 "

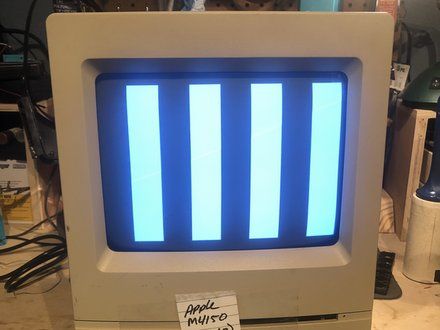

• On powering it up, It originally greeted me with a checkerboard pattern that quickly converted into this pattern. The checkerboard pattern is/was commonly caused by bad Ram memory. Considering the age of this computer, leaking capacitors are a strong possibility. Time to check.
• CAUTION: This computer contains a CRT. That means there are some high voltages involved when working on this. Use proper CRT safety while working on it.

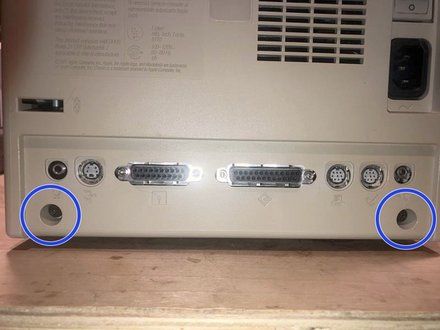

• The cover is held in place by four (4) T-15 screws. Two (2) on the bottom

Step 2

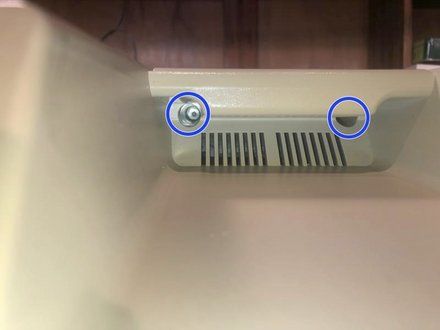

• and two (2) under the top (handle)
• The bottom ones are easy to remove

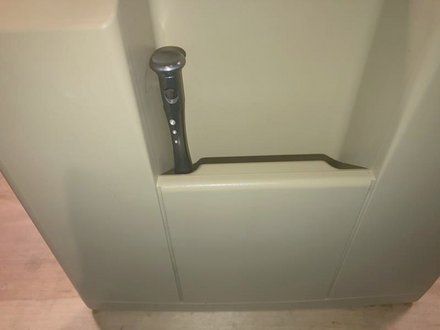

• The top ones are a bit of a challenge due to the depth of the holes.

Step 3

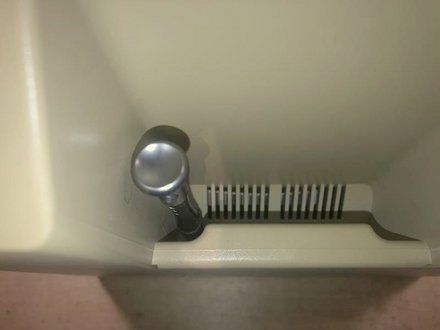

• There was just not enough room to get a good grip on the driver.

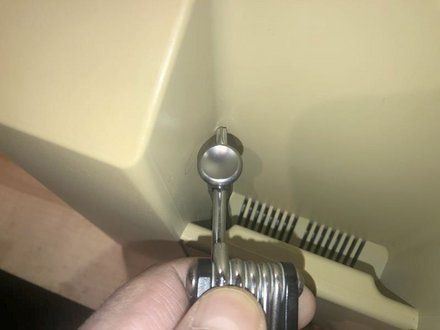

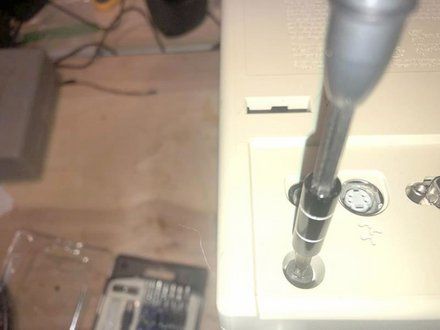

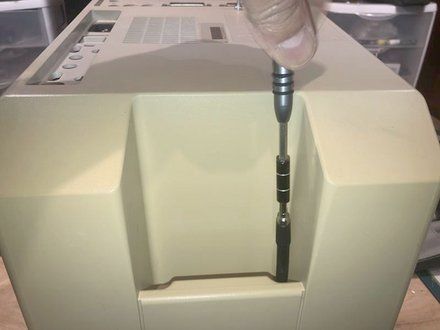

• Luckily this iFixit driver has a hole on the top part. I used a tool to gain some mechanical advantage. While applying downward pressure on the driver, turn the tool to the left to loosen the screw
• Once loosened, the iFixit extension that came with my set, works perfectly to remove the screw,

Step 4

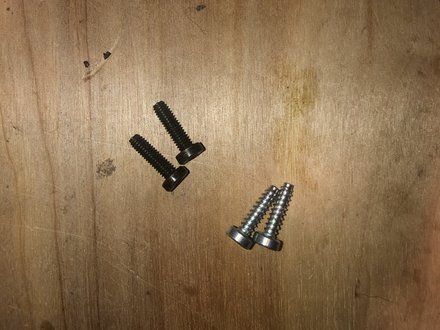

• Here are the four (4) screws. The two bottom screws are M4X15mm The top screws are those typical found in plastic to sheet metal joints.

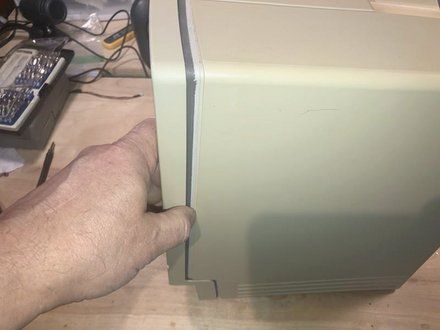

• With the screws removed the cover will slide off.

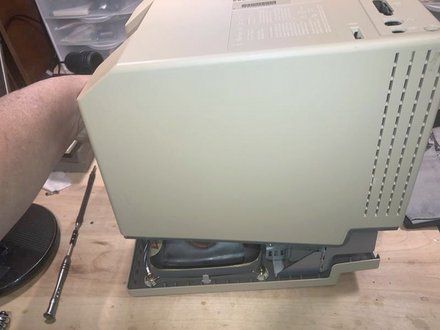

• BEst practice is to lay it down and pull the case straight up. It may take some force due to the tight fit and years of storage etc.

Step 5

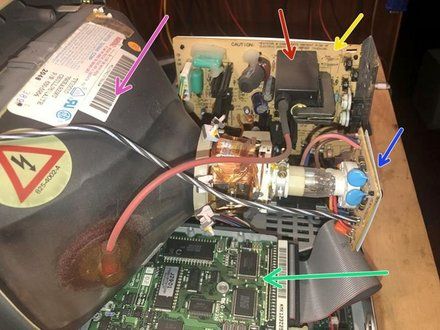

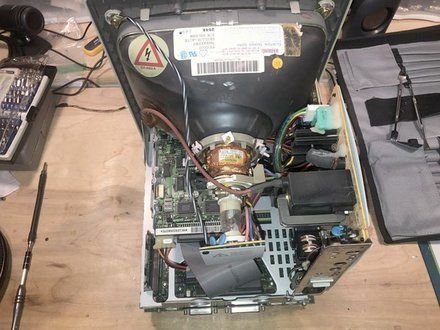

• Here is what the inside looks like.
• CAUTION: Remember the High Voltage. Do not touch anything with bare hands etc. Right now it's look but don't touch
    • Power supply (Sweep Board)
    • Flyback Transformer
    • Video card
    • CRT
    • SCSI Hard drive
• Hard drive on top with the Floppy drive on the bottom

Step 6

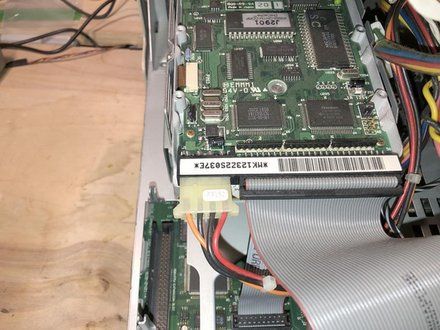

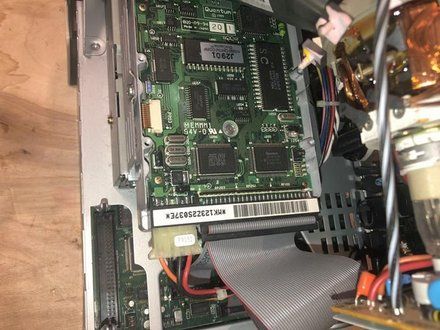

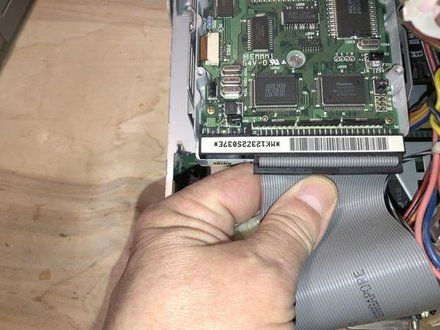

• Here is the Hard Drive. It is actually mounted upside down. You are looking at the drive controller board

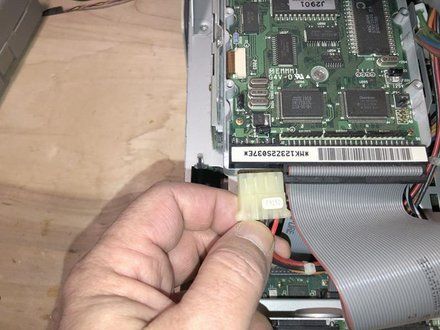

• Remove the power cable
• Next remove the data cable. The red stripe always connects to pin 1 of the connector

Step 7

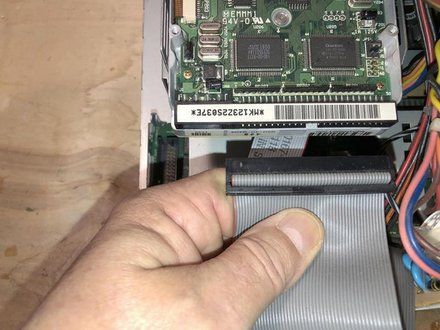

• To remove the cable, simply pull it toward the back. No locking tabs etc. on these.

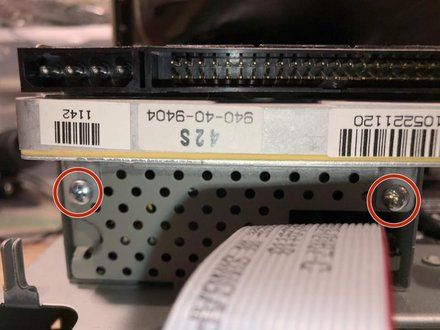

• There are two (2) Philips head screws that hold the HDD caddy. Remove those

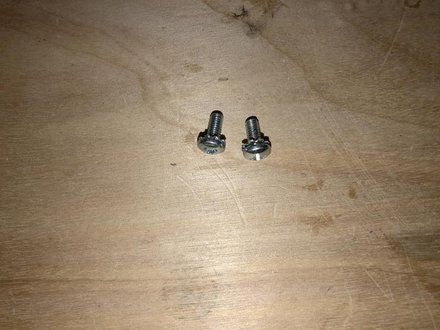

• The screws are M3 by 8mm machine screws

Step 8

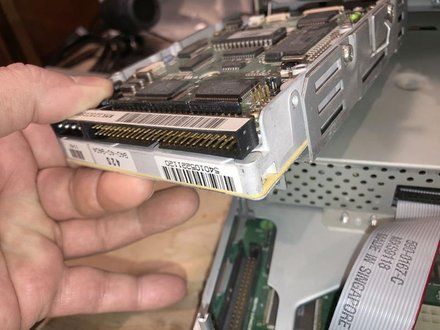

• With the two (2) screws removed, simply remove the Hard Drive with caddy out of the chassis.

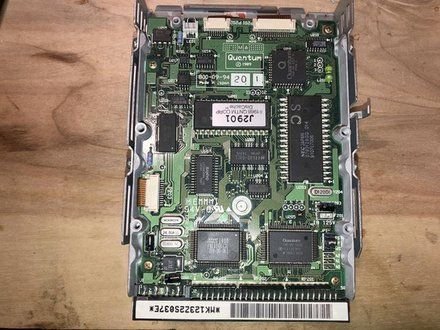

• The drive is a Quantum ProDrive LPS 42S 40GB SCSI Hard Drive - Apple 940-40-9404

Conclusion

To reassemble your device, follow these instructions in reverse order.

Credit
