Macintosh Classic II Back Cover Removal

Device	Macintosh Classic II
Difficulty	Moderate
Time	10 - 20 minutes
Steps	5

This guide is by oldturkey03 on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

I have had this computer for years but just never got around to working on it until now. There was a general question about the possibility of connecting a SSD to this computer. For now, this one will have to get taken apart, cleaned, and possibly recapped. After that we a re going to see if the SCSCI hard drive can be replaced by an SSD.

Tools: T15 Torx Screwdriver

Step 1

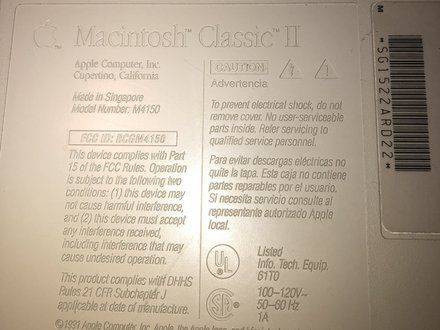

• Here is one of the vintage computers in my possession. It is a Macintosh Classic II M4150. Apple considers this obsolete and " information about these products is no longer updated as of 9/1/98 "

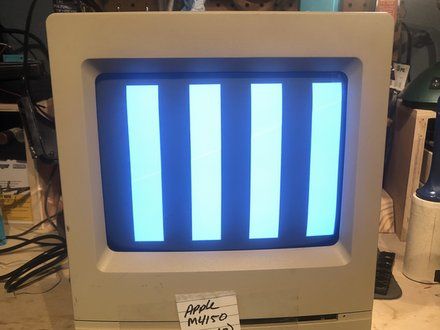

• On powering it up, It originally greeted me with a checkerboard pattern that quickly converted into this pattern. The checkerboard pattern is/was commonly caused by bad Ram memory. Considering the age of this computer, leaking capacitors are a strong possibility. Time to check.
• CAUTION: This computer contains a CRT. That means there are some high voltages involved when working on this. Use proper CRT safety while working on it.

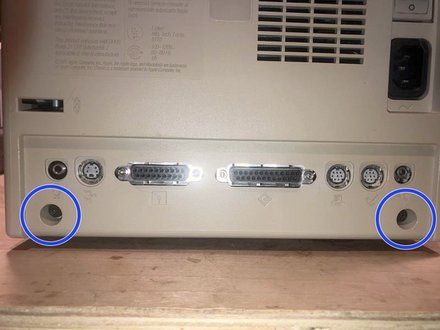

• The cover is held in place by four (4) T-15 screws. Two (2) on the bottom

Step 2

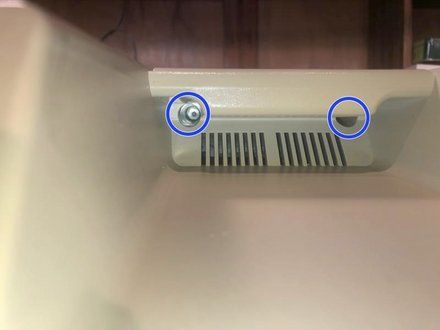

• and two (2) under the top (handle)

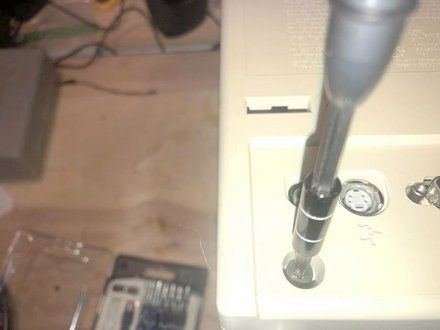

• The bottom ones are easy to remove

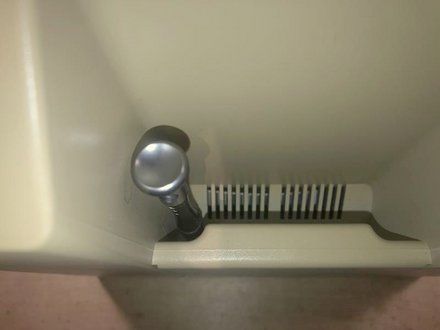

• The top ones are a bit of a challenge due to the depth of the holes.

Step 3

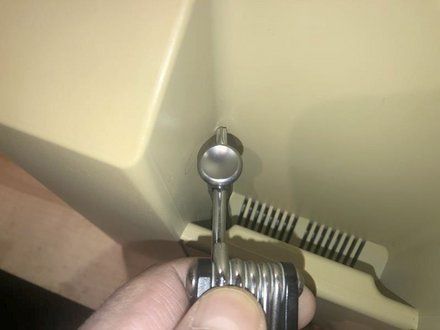

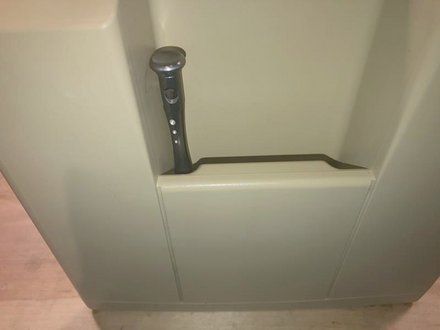

• There was just not enough room to get a good grip on the driver.
• Luckily this iFixit driver has a hole on the top part. I used a tool to gain some mechanical advantage. While applying downward pressure on the driver, turn the tool to the left to loosen the screw

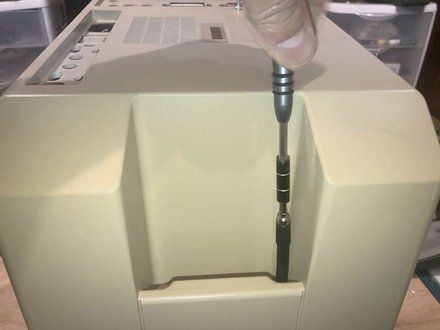

• Once loosened, the iFixit extension that came with my set, works perfectly to remove the screw,

Step 4

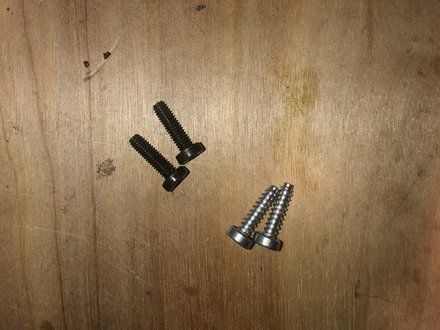

• Here are the four (4) screws. The two bottom screws are M4X15mm The top screws are those typical found in plastic to sheet metal joints.

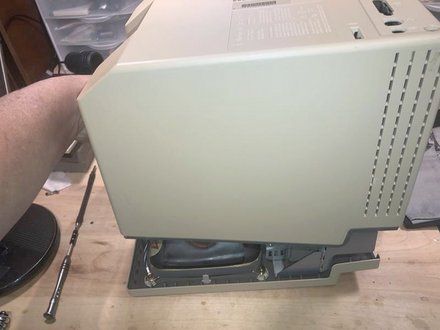

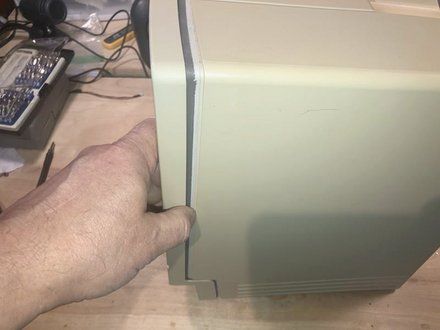

• With the screws removed the cover will slide off.
• BEst practice is to lay it down and pull the case straight up. It may take some force due to the tight fit and years of storage etc.

Step 5

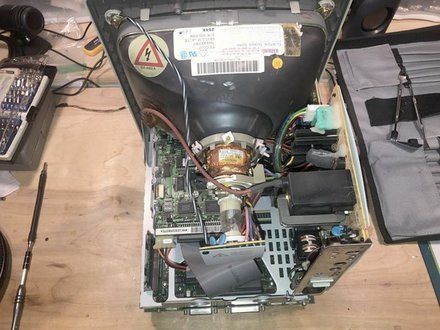

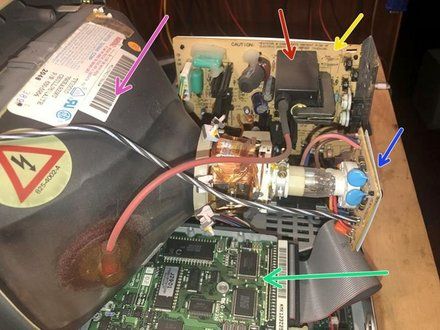

• Here is what the inside looks like.
• CAUTION: Remember the High Voltage. Do not touch anything with bare hands etc. Right now it's look but don't touch
    • Power supply (Sweep Board)
    • Flyback Transformer
    • Video card
    • CRT

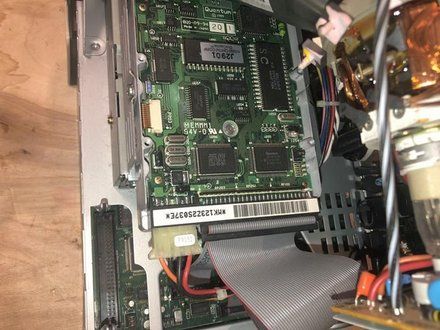

    • SCSI Hard drive
• Hard drive on top with the Floppy drive on the bottom

Conclusion

To reassemble your device, follow these instructions in reverse order.
