REPLACING SEGA DREAMCAST POWER BLOCK
(POWER SUPPLY)::
DeviceSega Dreamcast
DifficultyModerate
Time7 - 15 minutes
Steps8
This guide is by wkwong on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A guide to remove power block from the Sega Dreamcast.

Tools: Phillips #2 Screwdriver


STEP 1::
[step 1 photo] [step 1 photo]

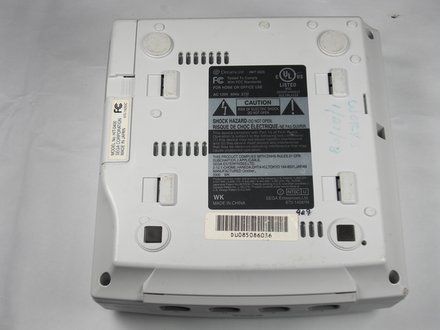

• CAUTION: Verify that the console is disconnected from the AC outlet before you begin.
• Flip the console over on its back.

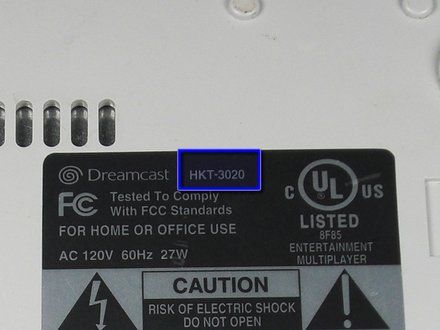

• Take note of your model number, in case replacement parts are needed.

STEP 2::
[step 2 photo] [step 2 photo] [step 2 photo]

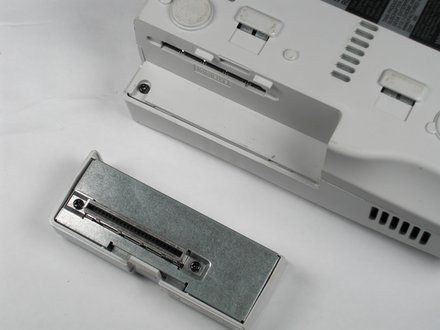

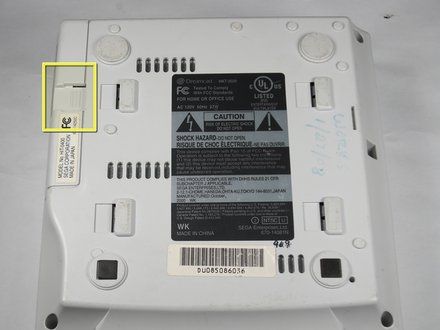

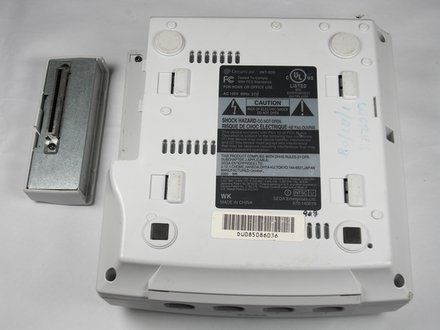

• Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

STEP 3::
[step 3 photo]

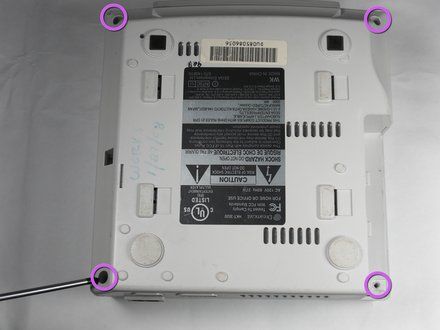

• Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.
• NOTE: Note: Remove the expansion bay to locate the fourth screw

STEP 4::
[step 4 photo]
• CAUTION: Internal components can be loose. Be careful that they do not fall out when removing the cover.

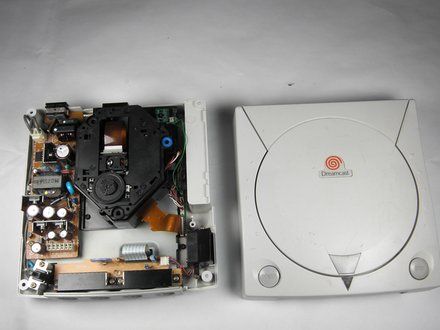

• Turn the console right side up.
• Remove the top cover by gently lifting the upper portion of the console.

STEP 5::
[step 5 photo] [step 5 photo]
• CAUTION: Verify that the console is disconnected from the AC outlet before you begin. If you have just powered off the system, give the capacitors a few minutes to discharge before you begin working.

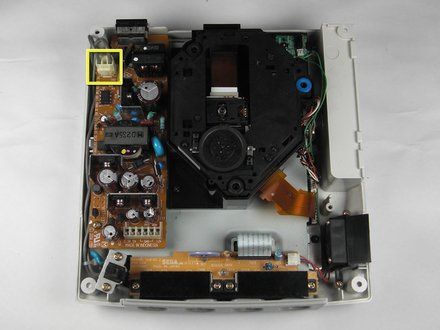

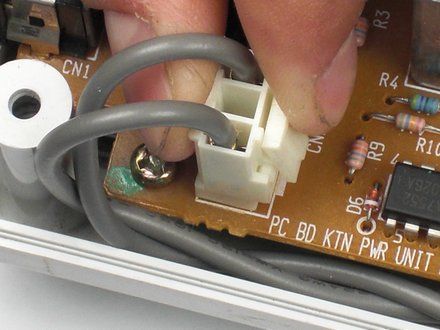

• Remove the white female pin header by clamping the clip and pulling it up gently from the power board.

STEP 6::
[step 6 photo]

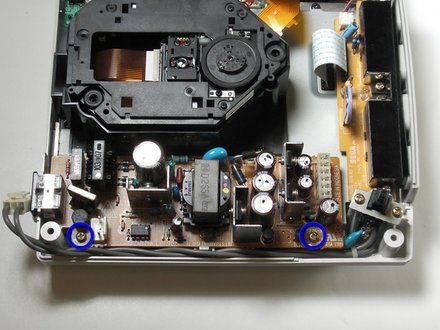

• Remove the two 10mm Philips #02 screws that are fastened to the power block.

STEP 7::
[step 7 photo] [step 7 photo]

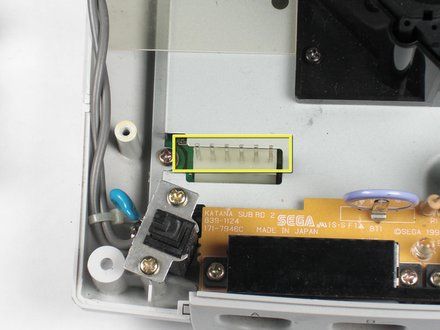

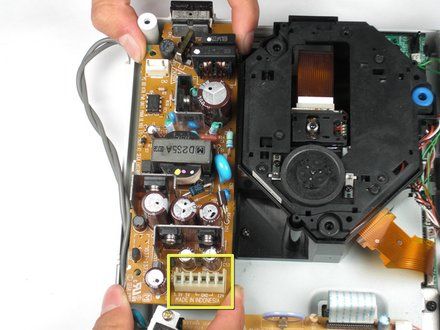

• Do not bend the male pin header between the mounted head when you remove the power supply from the chassis.
• Remove the power board by using both hands to gently lift the power board away from the console.

STEP 8::
[step 8 photo]

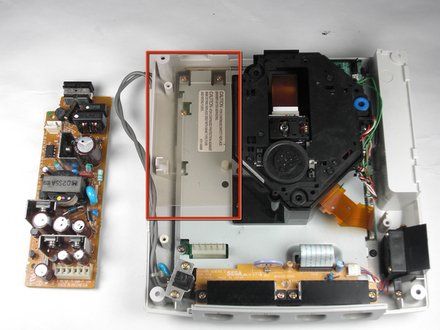

• Remove the clear plastic film that is tucked between the power supply and the chassis.

CONCLUSION::
To reassemble your device, follow these instructions in reverse order.

CREDIT::
This guide is by wkwong on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>
