Sega Dreamcast Top Cover Replacement

Device	Sega Dreamcast
Difficulty	Very easy
Time	1 - 5 minutes
Steps	4

This guide is by wkwong on iFixit and is licensed under Creative Commons Attribution-NonCommercial-ShareAlike 3.0. ByteRot mirrors it for non-commercial preservation: formatting changed and photos resized for old browsers; full-size photos and the text are on the FTP in /DOCS/REPAIR. Original guide >>

A guide to remove the Top Cover of the Sega Dreamcast.

Tools: Phillips #2 Screwdriver

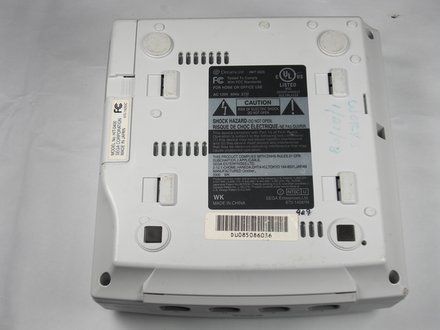

Step 1

• CAUTION: Verify that the console is disconnected from the AC outlet before you begin.
• Flip the console over on its back.

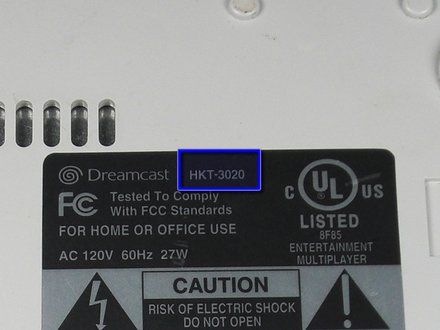

• Take note of your model number, in case replacement parts are needed.

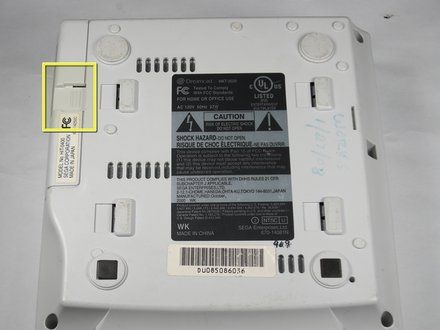

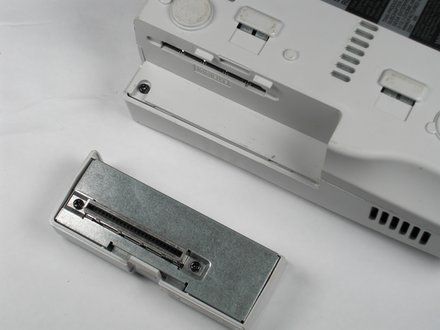

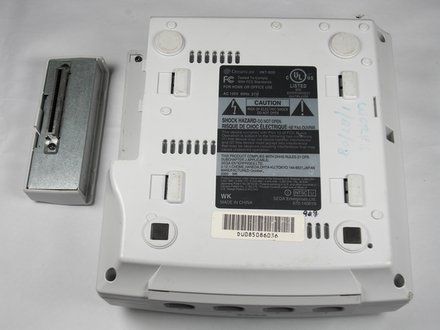

Step 2

• Remove the expansion bay by applying pressure to the small clip on the expansion bay while prying it away from the console.

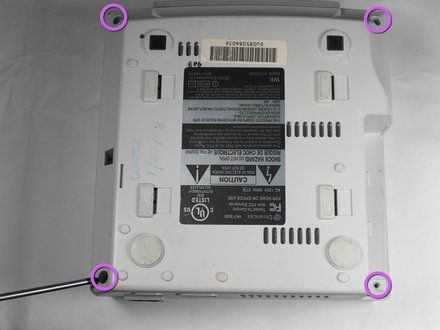

Step 3

• Locate and remove all four black 12mm Phillips #02 screws from the underside of the console.
• NOTE: Note: Remove the expansion bay to locate the fourth screw

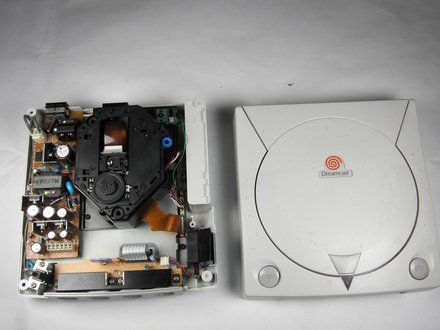

Step 4

• CAUTION: Internal components can be loose. Be careful that they do not fall out when removing the cover.
• Turn the console right side up.
• Remove the top cover by gently lifting the upper portion of the console.

Conclusion

To reassemble your device, follow these instructions in reverse order.
